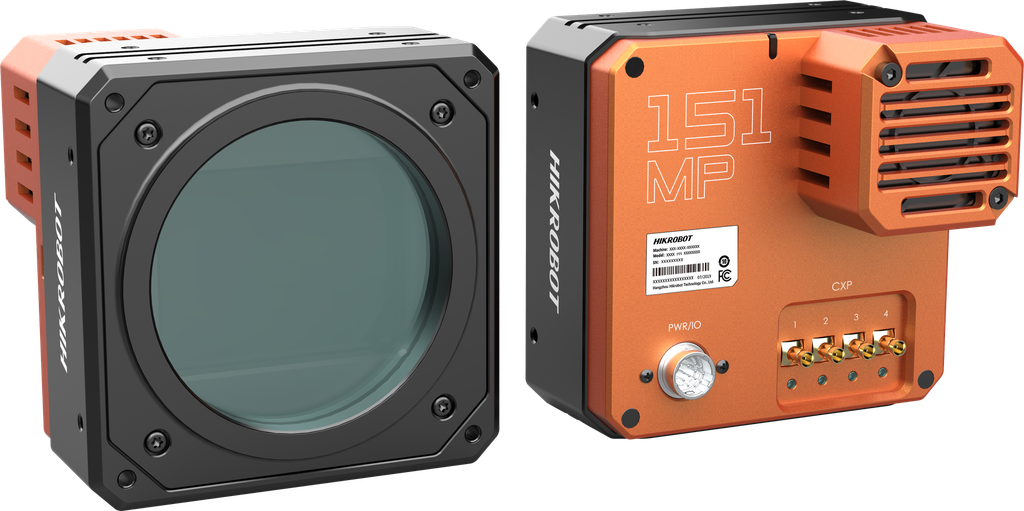

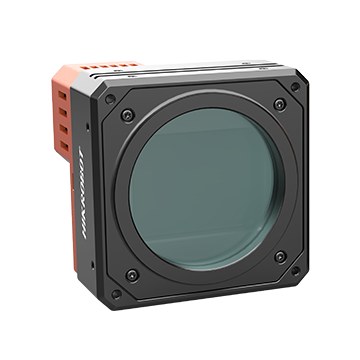

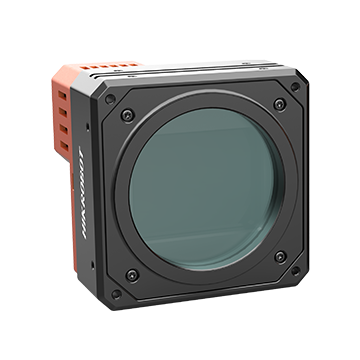

Hikrobot MV-CH1510-11XM-M72-TF

Hikrobot MV-CH1510-11XM-M72-TF — MV-CH1510-10(11)XM/XC adopts Sony® IMX411 sensor to provide  Mono camera with fan: MV- high-quality images. It uses CXP-6 interface to transmit non- CH1510-10XM-M72-NF compressed images in real time, and its max. frame rate can reach  Color camera with fan: MV- 6.2 fps in full resolution. CH1510-10XC-M72-NF  Mono camera with TEC: MV-. Genuine product, supplied by ZTEC.

55,240.85 € 55,240.85 €
kr 412,958.50
(Tax excluded)
Contact Us
Documents
MV-CH1510-11XM-M72-TF - Datasheet.pdf MV-CH1510-11XM-M72-TF - Drawing.pdf MV-CH1510-11XM-M72-TF - User Manual.pdf
OFFICIAL HIKROBOT PARTNERCE · EU compliant

Hikrobot MV-CH1510-11XM-M72-TF

CH Area Scan Camera

Order code
MV-CH1510-11XM-M72-TF
Order number
306301869
Resolution
14208 × 10640
Frame rate
6.2 fps @ 14208 × 10640
Interface
CoaXPress with DIN interface
Pixel size
3.76 μm × 3.76 μm

Hikrobot MV-CH1510-11XM-M72-TF is an industrial machine-vision camera for inspection, measurement and positioning in automated production, supplied and supported by ZTEC as your Hikrobot partner in the Nordics and Baltics.

Key features

✓Resolution of 14208 × 10640, pixel size of 3.76 µm × 3.76 µm.
✓Adopts rolling shutter CMOS to provide high dynamic range, SNR, and high-quality image.
✓Supports the flat field correction.
✓Supports TEC mode, and exposure time of up to 10 seconds.
✓Supports 16-bit ADC output with high-precision sampling and high dynamic range.are based on the protocol and standard.
✓Adopts CXP-6 interface to transmit data.

Applications & Industries

What you can solve with this product:

Presence and completeness inspection
Presence and completeness inspection
Measurement and positioning
Measurement and positioning
Surface and print/label inspection
Surface and print/label inspection
Robot guidance and pick-and-place
Robot guidance and pick-and-place

Specifications

Camera
Sensor typeCMOS, rolling shutter
Sensor modelSony® IMX411
Pixel size3.76 μm × 3.76 μm
Sensor size66.7 mm
Resolution14208 × 10640
Max. frame rate6.2 fps @ 14208 × 10640
Dynamic range78.7 dB
SNR46.4 dB
Gain0 dB to 30 dB
Exposure time15 μs to 10 sec
Exposure modeOff/Once/Continuous exposure mode, supports Global Reset, Rolling
Mono/colorMono
Pixel formatMono 8/10/12/16
BinningSupports 1 × 1, 1 × 2, 1 × 4, 2 × 1, 2 × 2, 2 × 4, 4 × 1, 4 × 2, 4 × 4
DecimationNot supported
Reverse imageSupports horizontal reverse image output
Electrical feature
Data interfaceCoaXPress with DIN interface
Digital I/O12-pin P10 connector provides I/O, including opto-isolated input × 1 (Line 0), opto-isolated output × 1(Line 1), bi-directional non-isolated I/O × 1 (Line 2), and RS-232 × 1.
Power supplyCamera with fan: 12 VDC to 24 VDC Camera with TEC: 24 VDC
Power consumptionCamera with fan: Typ. 18 W @ 24 VDC Camera with TEC non-cooling: Typ. 21 W @ 24 VDC Camera with TEC cooling: Typ. 55 W @ 24 VDC
Mechanical
DimensionCamera with fan: 100 mm × 100 mm × 74.3 mm (3.9" × 3.9" × 2.9") Camera with TEC: 120 mm × 120 mm × 84.6 mm (4.7" × 4.7" × 3.3")
WeightCamera with fan: Approx. 1.0 kg (2.2 lb.) Camera with TEC: Approx. 1.9 kg (4.2 lb.)
Ingress protectionIP40 (under proper lens installation and wiring)
TemperatureWorking temperature: 0 °C to 50 °C (32 °F to 122 °F) Storage temperature: –30 °C to 70 °C (–22 °F to 158 °F)
Humidity20% RH to 95% RH (no condensation)
General
Client softwareFrame grabber software meeting with CoaXPress Protocol
Operating system32/64-bit Windows 7/10, 64-bit Windows 11 with 8 GB memory or above
CompatibilityCoaXPress, GenlCam
CertificationCE, RoHS, KC
Additional specifications
Lens mountM72*0.75, flange back length 19.55 mm
