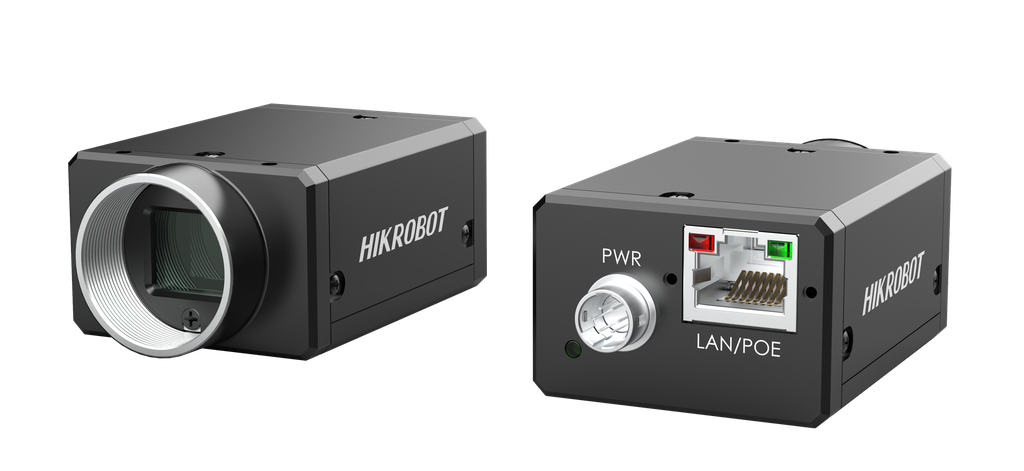

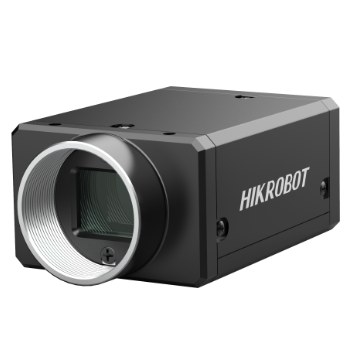

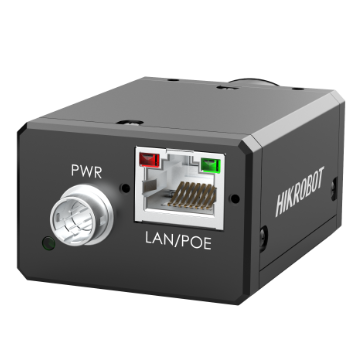

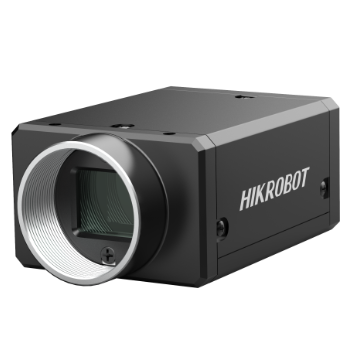

Hikrobot MV-CH160-60GM

CH Area Scan Camera

Order code
MV-CH160-60GM
Order number
306301919
Resolution
4000 × 4000
Frame rate
7.25 fps @ 4000 × 4000
Pixel size
3.2 μm × 3.2 μm
Sensor
HK

Hikrobot MV-CH160-60GM is an industrial machine-vision camera for inspection, measurement and positioning in automated production, supplied and supported by ZTEC as your Hikrobot partner in the Nordics and Baltics.

Key features

✓Resolution of 4000 × 4000, pixel size of 3.2 µm × 3.2 µm.
✓Adopts GigE interface and max. transmission distance of 100 meters without relay.
✓Easy and flexible installation, with mounting holes on both its top and bottom panels.
✓Compatible with GigE Vision V2.0 Protocol, GenlCam Standard, and third-party software based on the protocol and standard.

Applications & Industries

What you can solve with this product:

Typical industries: Battery
Presence and completeness inspection
Presence and completeness inspection
Measurement and positioning
Measurement and positioning
Surface and print/label inspection
Surface and print/label inspection
Robot guidance and pick-and-place
Robot guidance and pick-and-place

Specifications

Camera
Sensor typeCMOS, global shutter
Sensor modelHK
Pixel size3.2 μm × 3.2 μm
Sensor size1.1"
Resolution4000 × 4000
Max. frame rate7.25 fps @ 4000 × 4000
Dynamic range65 dB
SNR38 dB
Gain6 dB to 14 dB
Exposure time12 μs to 10 sec
Exposure modeOff/Once/Continuous exposure mode
Mono/colorMono
Pixel formatMono 8/10/12
BinningSupports 1 × 1, 2 × 2, 4 × 4
DecimationSupports 1 × 1, 2 × 2, 4 × 4
Reverse imageSupports horizontal and vertical reverse image output
Electrical feature
Data interfaceGigabit Ethernet (1000 Mbit/s), compatible with Fast Ethernet (100 Mbit/s)
Digital I/O6-pin P7 connector provides power and I/O, including opto-isolated input × 1 (Line 0), opto-isolated output × 1 (Line 1), bi-directional non-isolated I/O × 1 (Line 2).
Power supply9 VDC to 26 VDC, supports PoE
Power consumptionTyp. 3.72 W @ 12 VDC
Mechanical
Dimension29 mm × 44 mm × 59 mm (1.1" × 1.7" × 2.3")
WeightApprox. 100 g (0.2 lb.)
Ingress protectionIP30 (under proper lens installation and wiring)
TemperatureWorking temperature: 0 °C to 50 °C (32 °F to 122 °F) Storage temperature: –30 °C to 70 °C (–22 °F to 158 °F)
Humidity20% RH to 80% RH (no condensation)
General
Client softwareMVS or third-party software meeting with GigE Vision Protocol
Operating system32/64-bit Windows 7/10, 64-bit Windows 11, and 32/64-bit Linux
CompatibilityGigE Vision V2.0, GenlCam
CertificationCE, RoHS, KC
Additional specifications
Lens mountC-mount
