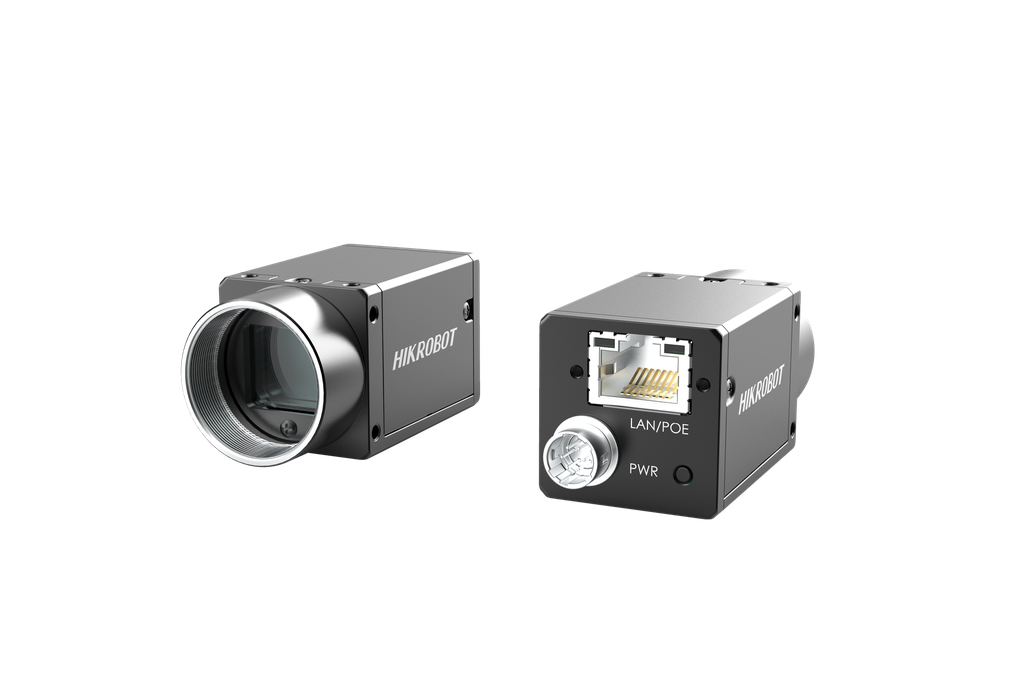

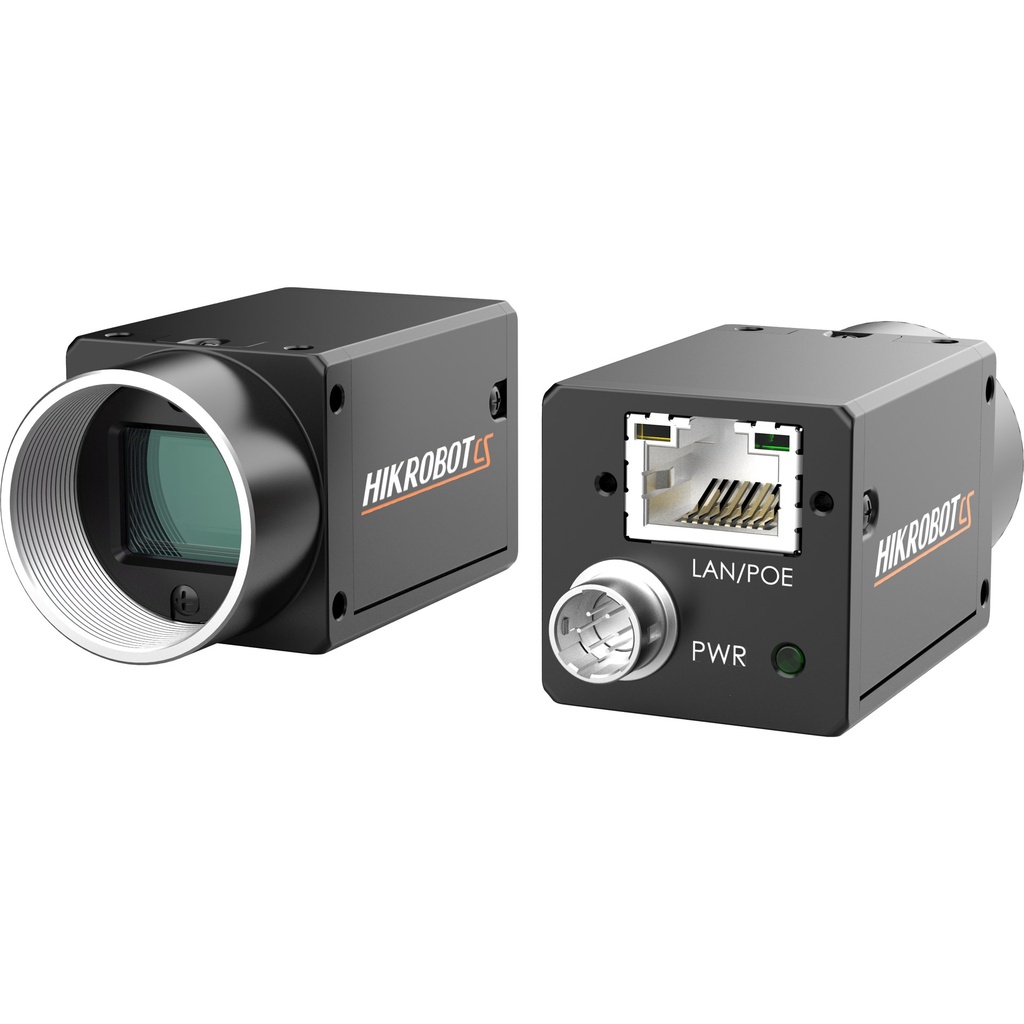

Hikrobot MV-CS023-10GM

Hikrobot MV-CS023-10GM — MV-CS023-10GM/GC camera adopts Sony® IMX249 sensor to  Mono: MV-CS023-10GM provide high-quality images. It uses GigE interface to transmit non-  Color: MV-CS023-10GC compressed images in real time, and its max. frame rate can reach Applicable. Genuine product, supplied by ZTEC.

986.47 € 986.47 €
kr 7,374.26
(Tax excluded)
Contact Us
Documents
MV-CS023-10GM - CAD (RAR).rar MV-CS023-10GM - Datasheet.pdf MV-CS023-10GM - User Manual.pdf
OFFICIAL HIKROBOT PARTNERCE · EU compliant

Hikrobot MV-CS023-10GM

CS Area Scan Camera

Order code
MV-CS023-10GM
Order number
306301946
Resolution
1920 × 1200
Frame rate
41 fps @1920 × 1200 Mono 8
Interface
Gigabit Ethernet, compatible with Fast Ethernet
Pixel size
5.86 μm × 5.86 μm

Hikrobot MV-CS023-10GM is an industrial machine-vision camera for inspection, measurement and positioning in automated production, supplied and supported by ZTEC as your Hikrobot partner in the Nordics and Baltics.

Key features

✓Adopts brand new design to reduce power consumption.
✓Compact design with mounting holes on panels for flexible mounting from 4 sides.
✓Supports auto or manual adjustment for gain, exposure control, LUT, Gamma correction, etc.
✓Supports hard trigger, software trigger, free run, etc.
✓Compatible with GigE Vision V2.0 Protocol, GenlCam Standard, and third-party software based on the protocol and standard.

Applications & Industries

What you can solve with this product:

Typical industries: SemiconductorFood & beveragePackagingMedical
Presence and completeness inspection
Presence and completeness inspection
Measurement and positioning
Measurement and positioning
Surface and print/label inspection
Surface and print/label inspection
Robot guidance and pick-and-place
Robot guidance and pick-and-place

Specifications

Performance
Sensor typeCMOS, global shutter
Sensor modelSony® IMX249
Pixel size5.86 μm × 5.86 μm
Sensor size1/1.2"
Resolution1920 × 1200
Max. frame rate41 fps @1920 × 1200 Mono 8
Dynamic range72.6 dB
SNR44.9 dB
Gain0 dB to 24 dB
Exposure time15 μs to 10 sec
Exposure modeOff/Once/Continuous exposure mode
MonoMono
Pixel formatMono 8/10/10Packed/12/12Packed
BinningSupports 1 × 1, 2 × 2, 4 × 4
DecimationSupports 1 × 1, 2 × 2, 4 × 4
Reverse imageSupports horizontal and vertical reverse image output
Electrical features
Data interfaceGigabit Ethernet, compatible with Fast Ethernet
Digital I/O6-pin P7 connector provides power and I/O, including opto-isolated input × 1 (Line 0), opto-isolated output × 1 (Line 1), bi-directional non-isolated I/O × 1 (Line 2).
Power supply9 VDC to 24 VDC, supports PoE
Power consumptionTyp. 2.2 W@12 VDC
Mechanical
Lens mountC-mount
Dimension29 mm × 29 mm × 42 mm (1.1" × 1.1" × 1.2")
WeightApprox. 100 g (0.22 lb.)
Ingress protectionIP40 (under proper lens installation and wiring)
TemperatureWorking temperature: –30 °C to 60 °C (–22 °F to 140 °F) Storage temperature: –30 °C to 70 °C (–22 °F to 158 °F)
Humidity20% RH to 95% RH (no condensation)
General
Client softwareMVS or third-party software meeting with GigE Vision Protocol
Operating system32/64-bit Windows 7/10, 32/64-bit Linux
CompatibilityGigE Vision V2.0, GenICam
CertificationCE, RoHS, KC
