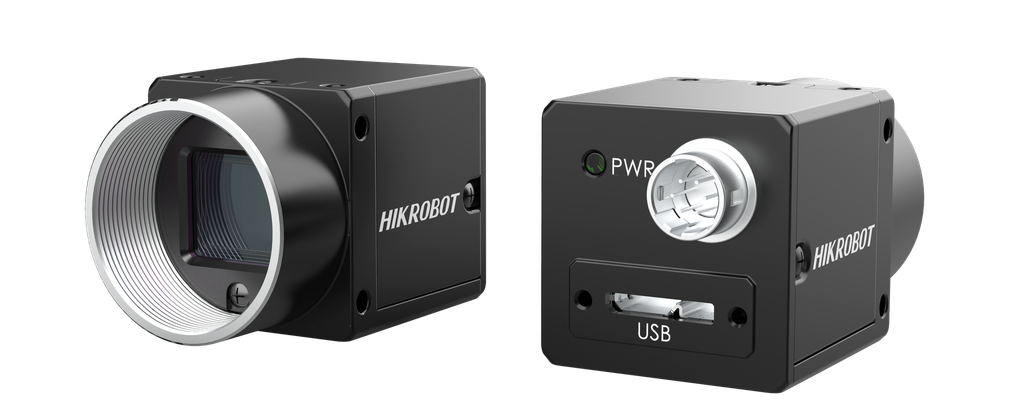

Hikrobot MV-CH120-10UC V4.0

Hikrobot MV-CH120-10UC V4.0

Hikrobot MV-CH120-10UC — An industrial machine-vision camera for inspection, measurement and positioning in automated production. Genuine product, supplied by ZTEC.

3,748.64 € 3,748.64 €
kr 28,022.19
(Tax excluded)
Contact Us
OFFICIAL HIKROBOT PARTNERCE · EU compliant

Hikrobot MV-CH120-10UC

CH

Resolution
4096 × 3000
Frame rate
30.5 fps @4096 × 3000 Bayer RG 8
Interface
USB3.0, compatible with USB2.0
Pixel size
3.45 μm × 3.45 μm

Hikrobot MV-CH120-10UC is an industrial machine-vision camera for inspection, measurement and positioning in automated production, supplied and supported by ZTEC as your Hikrobot partner in the Nordics and Baltics.

Applications & Industries

What you can solve with this product:

Presence and completeness inspection
Presence and completeness inspection
Measurement and positioning
Measurement and positioning
Surface and print/label inspection
Surface and print/label inspection
Robot guidance and pick-and-place
Robot guidance and pick-and-place

Specifications

Specifications
Sensor typeCMOS, global shutter
Sensor modelSony® IMX304
Sensor size1.1”
Pixel size3.45 μm × 3.45 μm
Resolution4096 × 3000
Max. frame rate30.5 fps @4096 × 3000 Bayer RG 8
Mono/colorColor
Data interfaceUSB3.0, compatible with USB2.0
Lens mountC-Mount
Dimension29 mm × 29 mm × 30 mm (1.1" × 1.1" × 1.2")
CertificationCE-RoHS;CE-EMC;UL;KC
