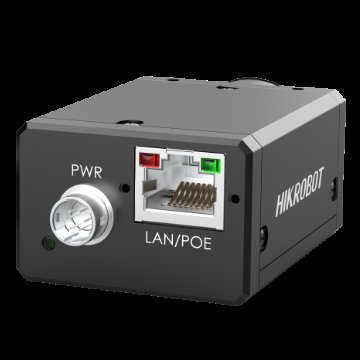

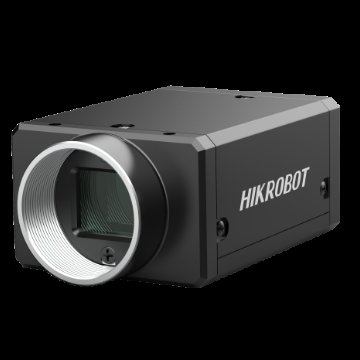

Hikrobot MV-CH250-90GM V4.0

Hikrobot MV-CH250-90GM — MV-CH250-90GM/GC/GN V4 camera adopts Gpixel GMAX0505  Mono camera: MV-CH250-90GM V4 sensor to provide high-quality images. It uses GigE interface to  Color camera: MV-CH250-90GC V4 transmit non-compressed images in real time, and its max. frame  NIR camera: MV-CH250-90GN V4 rate can reach 4.5 fps in full resolution. Applicable. Genuine product, supplied by ZTEC.

2,919.87 € 2,919.87 €
kr 21,827.81
(Tax excluded)
Contact Us
Documents
MV-CH250-90GM - CAD (RAR).rar MV-CH250-90GM - Datasheet.pdf MV-CH250-90GM - User Manual.pdf
OFFICIAL HIKROBOT PARTNERCE · EU compliant

Hikrobot MV-CH250-90GM

CH Area Scan Camera

Order code
MV-CH250-90GM
Order number
306302045
Resolution
5120 × 5120
Frame rate
4.5 fps @ 5120 × 5120 Mono 8
Pixel size
2.5 μm × 2.5 μm
Sensor
Gpixel GMAX0505

Hikrobot MV-CH250-90GM is an industrial machine-vision camera for inspection, measurement and positioning in automated production, supplied and supported by ZTEC as your Hikrobot partner in the Nordics and Baltics.

Key features

✓Resolution of 5120 × 5120, pixel size of 2.5 µm × 2.5 µm.
✓Supports binning, reverse image output and LSC. Compatible with C-mount lenses.
✓Easy and flexible installation, with mounting holes on both panels of the camera.
✓Adopts GigE interface and max. transmission distance of 100 meters without relay.
✓Supports hardware trigger, software trigger, free run, etc.
✓Compatible with GigE Vision V2.0 Protocol, GenlCam Standard, and third-party software based on the protocol and standard.

Applications & Industries

What you can solve with this product:

Presence and completeness inspection
Presence and completeness inspection
Measurement and positioning
Measurement and positioning
Surface and print/label inspection
Surface and print/label inspection
Robot guidance and pick-and-place
Robot guidance and pick-and-place

Specifications

Performance
Sensor typeCMOS, global shutter
Sensor modelGpixel GMAX0505
Pixel size2.5 μm × 2.5 μm
Sensor size1.1"
Resolution5120 × 5120
Max. frame rate4.5 fps @ 5120 × 5120 Mono 8
Dynamic range63 dB
SNR36 dB
Gain0 dB to 24 dB
Exposure time12 μs to 10 sec
Exposure modeOff/Once/Continuous exposure mode
Mono/colorMono
Pixel formatMono 8/10/10Packed/12/12Packed
BinningSupports 1 × 1, 2 × 2, 4 × 4
DecimationSupports 1 × 1, 2 × 2, 4 × 4
Reverse imageSupports horizontal and vertical reverse image output
Electrical feature
Data interfaceGigabit Ethernet (1000 Mbit/s), compatible with Fast Ethernet (100 Mbit/s)
Digital I/O6-pin P7 connector provides power and I/O, including opto-isolated input × 1 (Line 0), opto-isolated output × 1 (Line 1), bi-directional non-isolated I/O × 1 (Line 2).
Power supply9 VDC to 24 VDC, supports PoE
Power consumptionTyp. 3.1 W @ 12 VDC
Mechanical
Dimension29 mm × 44 mm × 59 mm (1.1" × 1.7" × 2.3")
WeightApprox. 100 g (0.2 lb.)
Ingress protectionIP40 (under proper lens installation and wiring)
TemperatureWorking temperature: 0 °C to 50 °C (32 °F to 122 °F) Storage temperature: –30 °C to 80 °C (–22 °F to 176 °F)
Humidity20% RH to 95% RH (no condensation)
General
Client softwareMVS or third-party software meeting with GigE Vision Protocol
Operating system32/64-bit Windows 7/10, 64-bit Windows 11, and 32/64-bit Linux
CompatibilityGigE Vision V2.0, GenlCam
CertificationCE, RoHS, KC
Additional specifications
Lens mountC-mount
