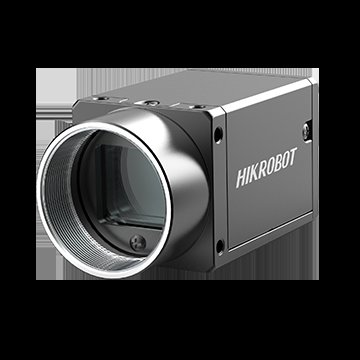

Hikrobot MV-CH120-20GC V4.0

Hikrobot MV-CH120-20GC — MV-CH120-20GM/GC V4 camera adopts OnSemi XGS12000 sensor to  Mono camera: provide high-quality images. It uses GigE interface to transmit non- MV-CH120-20GM V4 compressed images in real time, and its max. frame rate can reach 9.6  Color camera: fps in full resolution. MV-CH120-20GC V4. Genuine product, supplied by ZTEC.

2,367.46 € 2,367.46 €
kr 17,698.22
(Tax excluded)
Contact Us
Documents
MV-CH120-20GC - CAD (RAR).rar MV-CH120-20GC - Datasheet.pdf MV-CH120-20GC - User Manual.pdf
OFFICIAL HIKROBOT PARTNERCE · EU compliant

Hikrobot MV-CH120-20GC

CH Area Scan Camera

Order code
MV-CH120-20GC
Order number
306302069
Resolution
4096 × 3072
Frame rate
9.6 fps @ 4096 × 3072 Bayer RG 8
Pixel size
3.2 μm × 3.2 μm
Sensor
OnSemi XGS12000

Hikrobot MV-CH120-20GC is an industrial machine-vision camera for inspection, measurement and positioning in automated production, supplied and supported by ZTEC as your Hikrobot partner in the Nordics and Baltics.

Key features

✓Supports auto or manual adjustment for gain and exposure time, and manual adjustment for LUT and Gamma correction.
✓Supports LSC, sequencer, passive transmission, etc.
✓Color camera supports white balance, CCM, Super Palette, Super Bayer, etc.
✓Adopts GigE interface and max. transmission distance of 100 meters without relay.
✓Compact design with mounting holes on panels for flexible mounting from 4 sides.
✓Compatible with GigE Vision V2.0 Protocol, GenlCam Standard, and third-party software based on the protocol and standard.

Applications & Industries

What you can solve with this product:

Typical industries: SemiconductorLogistics
Presence and completeness inspection
Presence and completeness inspection
Measurement and positioning
Measurement and positioning
Surface and print/label inspection
Surface and print/label inspection
Robot guidance and pick-and-place
Robot guidance and pick-and-place

Specifications

Performance
Sensor typeCMOS, global shutter
Sensor modelOnSemi XGS12000
Pixel size3.2 μm × 3.2 μm
Sensor size1"
Resolution4096 × 3072
Max. frame rate9.6 fps @ 4096 × 3072 Bayer RG 8
Dynamic range66.4 dB
SNR40 dB
Gain0 dB to 18 dB
Exposure timeUltraShort exposure mode: 52 μs to 161 μs Standard exposure mode: 162 μs to 10 sec
Exposure modeOff/Once/Continuous exposure mode
Mono/colorColor
Pixel formatMono 8/10/12, Bayer RG 8/10/10Packed/12/12Packed, YUV422Packed, YUV422_YUYV_Packed, RGB 8, BGR 8
BinningSupports 1 × 1, 2 × 2, 4 × 4
DecimationSupports 1 × 1, 2 × 2, 4 × 4
Reverse imageSupports horizontal and vertical reverse image output
Electrical feature
Data interfaceGigabit Ethernet (1000 Mbit/s), compatible with Fast Ethernet (100 Mbit/s)

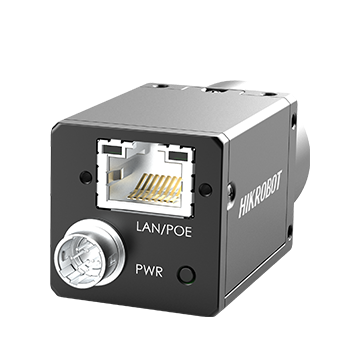

Digital I/O6-pin P7 connector provides power and I/O, including opto-isolated input × 1 (Line 0), opto-isolated output × 1 (Line 1), bi-directional non-isolated I/O × 1 (Line 2).
Power supply9 VDC to 24 VDC, supports PoE
Power consumptionTyp. 2.7 W @ 12 VDC
Mechanical
Dimension29 mm × 29 mm × 42 mm (1.1" × 1.1" × 1.7")
WeightApprox. 100 g (0.2 lb.)
Ingress protectionIP40 (under proper lens installation and wiring)
TemperatureWorking temperature: –10 °C to 50 °C (14 °F to 122 °F) Storage temperature: –30 °C to 80 °C (–22 °F to 176 °F)
Humidity20% RH to 95% RH (no condensation)
General
Client softwareMVS or third-party software meeting with GigE Vision Protocol
Operating system32/64-bit Windows 7/10, 64-bit Windows 11, and 32/64-bit Linux
CompatibilityGigE Vision 2.0, GenlCam
CertificationCE, RoHS, KC
Additional specifications
Lens mountC-mount
