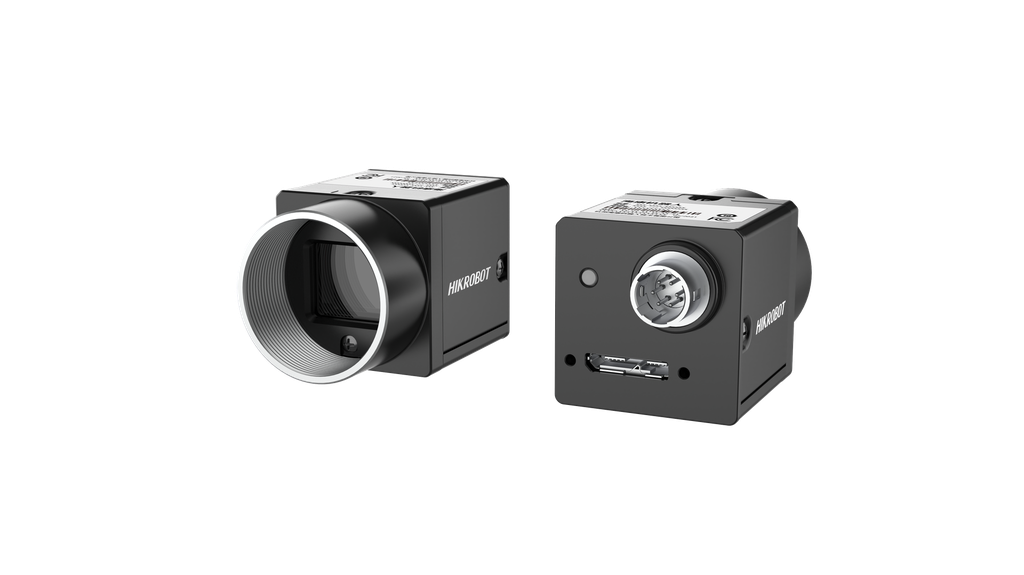

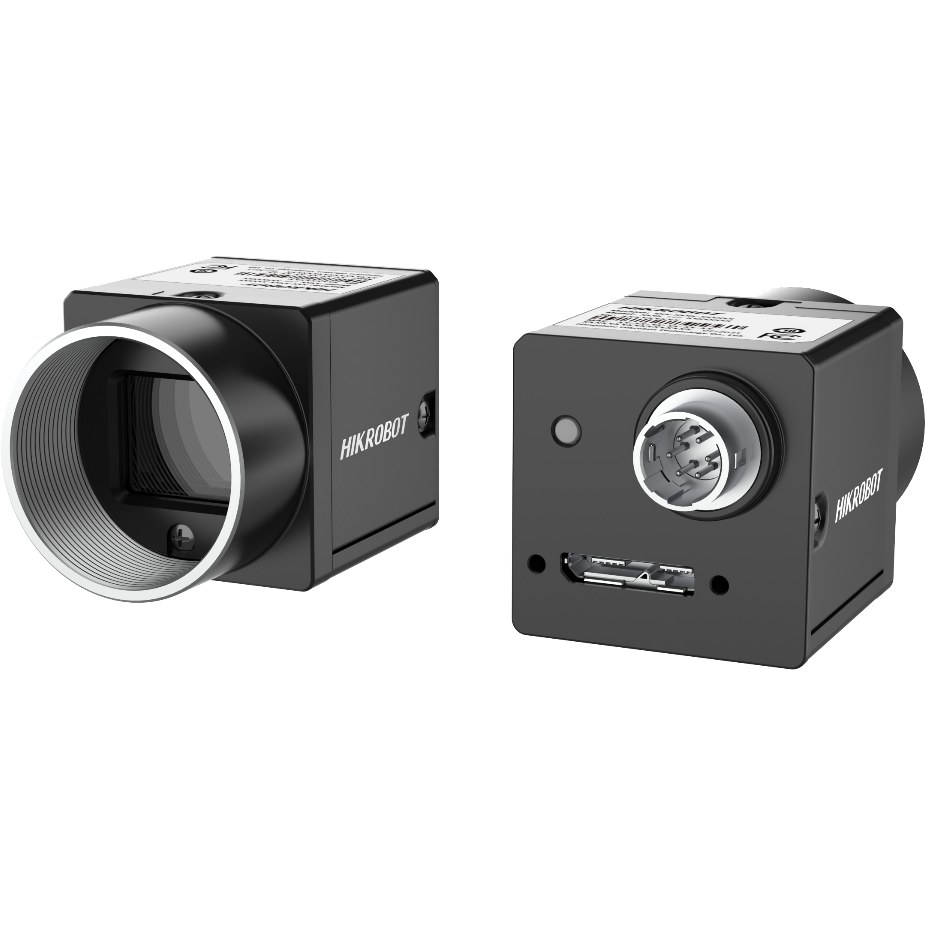

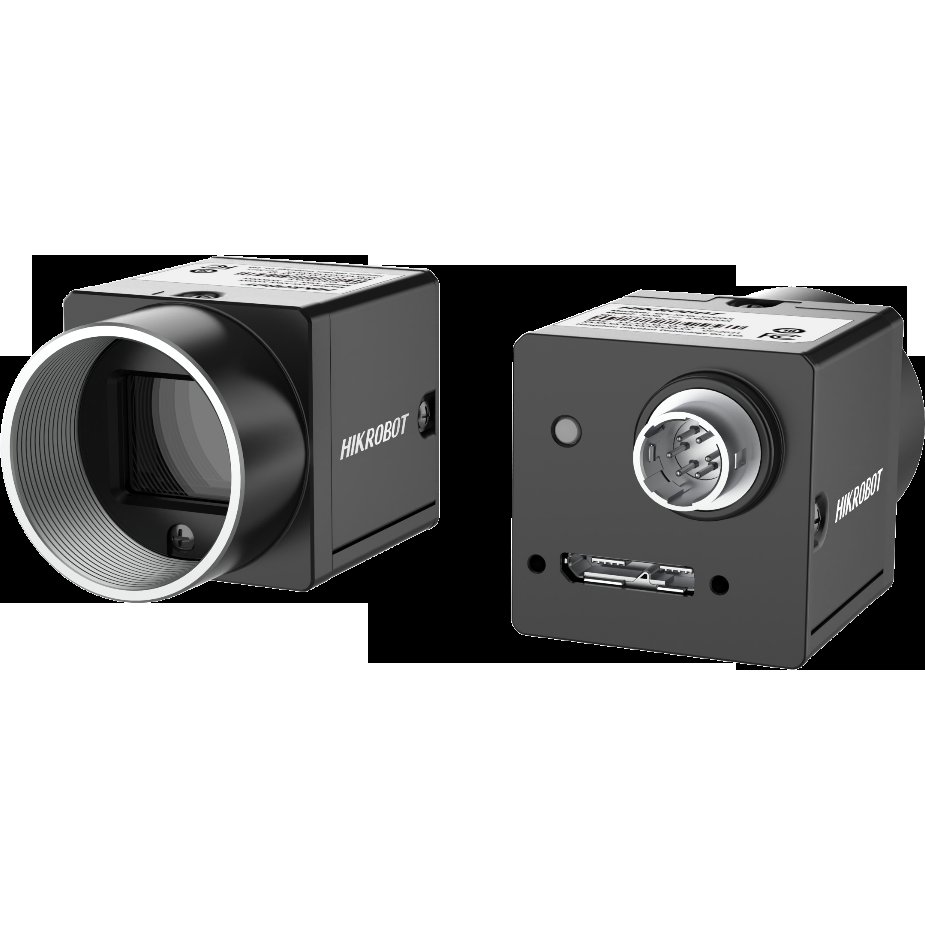

Hikrobot MV-CU013-80UC

Hikrobot MV-CU013-80UC — MV-CU013-80UM/UC camera provides high-quality images. It uses  Mono camera: MV-CU013-80UM USB3.0 interface to transmit images in real time, and its max. frame  Color camera: MV-CU013-80UC rate can reach 240.4 fps in full resolution. Applicable. Genuine product, supplied by ZTEC.

434.04 € 434.04 €
kr 3,244.68
(Tax excluded)
Contact Us
Documents
MV-CU013-80UC - CAD (RAR).rar MV-CU013-80UC - Datasheet.pdf MV-CU013-80UC - User Manual.pdf
OFFICIAL HIKROBOT PARTNERCE · EU compliant

Hikrobot MV-CU013-80UC

CU Area Scan Camera

Order code
MV-CU013-80UC
Order number
306302148
Resolution
1280 × 1024
Frame rate
240.4 fps @1280 × 1024 Bayer BG 8
Interface
USB3.0, compatible with USB2.0
Pixel size
4.0 μm × 4.0 μm

Hikrobot MV-CU013-80UC is an industrial machine-vision camera for inspection, measurement and positioning in automated production, supplied and supported by ZTEC as your Hikrobot partner in the Nordics and Baltics.

Key features

✓Supports auto or manual adjustment of gain, exposure time, manual adjustment of LUT, Gamma correction, etc.
✓Supports hardware trigger, software trigger, free run, etc.
✓Adopts compact design for flexible installation.
✓Compatible with USB3 Vision Protocol, GenlCam Standard, and third-party software based on the protocol and standard.

Applications & Industries

What you can solve with this product:

Typical industries: Semiconductor
Presence and completeness inspection
Presence and completeness inspection
Measurement and positioning
Measurement and positioning
Surface and print/label inspection
Surface and print/label inspection
Robot guidance and pick-and-place
Robot guidance and pick-and-place

Specifications

Performance
Sensor typeCMOS, global shutter
Sensor modelSS
Pixel size4.0 μm × 4.0 μm
Sensor size1/2.7"
Resolution1280 × 1024
Max. frame rate240.4 fps @1280 × 1024 Bayer BG 8
Dynamic range50.6 dB
SNR38.7 dB
Gain0 dB to 20 dB
Exposure time30 μs to 1 sec
Exposure modeOff/Once/Continuous exposure mode
Mono/colorColor
Pixel formatBayer BG 8/10/10Packed/12/12Packed
BinningSupports 1 × 1, 2 × 2, 4 × 4
DecimationSupports 1 × 1, 2 × 2, 4 × 4
Reverse imageSupports horizontal and vertical reverse image output
Electrical features
Data interfaceUSB3.0, compatible with USB2.0
Digital I/O6-pin P7 connector provides power and I/O, including opto-isolated input × 1 (Line 0), opto-isolated output × 1 (Line 1), and bi-directional non-isolated I/O × 1 (Line 2)
Power supply9 VDC to 24 VDC, supports USB3.0 power supply
Power consumptionTyp. 1.7 W@5 VDC (USB3.0 provides power supply)
Mechanical
Lens mountC-mount
Dimension29 mm × 29 mm × 30 mm (1.1" × 1.1" × 1.2")
WeightApprox. 77 g (0.2 lb.)
Ingress protectionIP40 (under proper lens installation and wiring)
TemperatureWorking temperature: 0 °C to 50 °C (32 °F to 122 °F) Storage temperature: -30 °C to 70 °C (-22 °F to 158 °F)
Humidity20% to 80% RH, non-condensing
General
Client softwareMVS or third-party software meeting with USB3 Vision Protocol
Operating system32/64-bit Windows XP/7/10, 32/64-bit Linux and 64-bit MacOS
CompatibilityUSB3 Vision, GenlCam
CertificationCE, RoHS, KC
