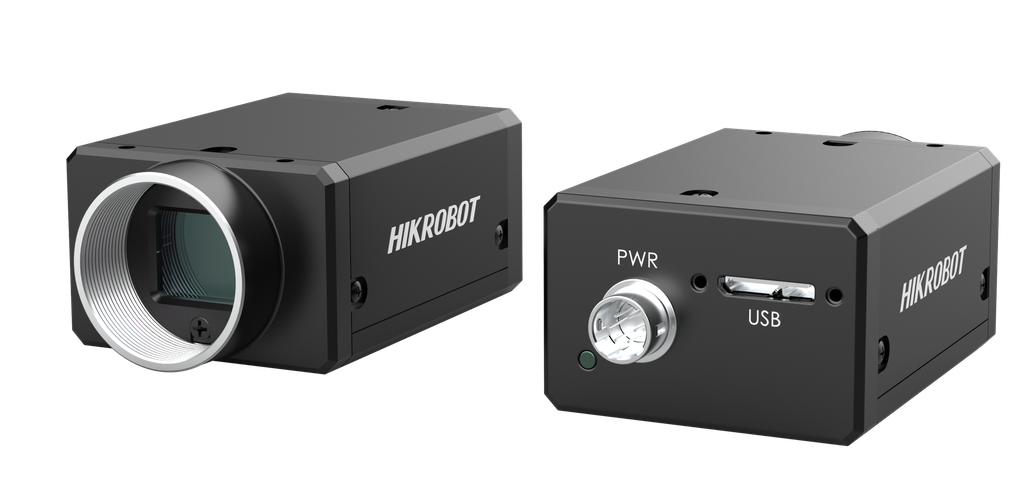

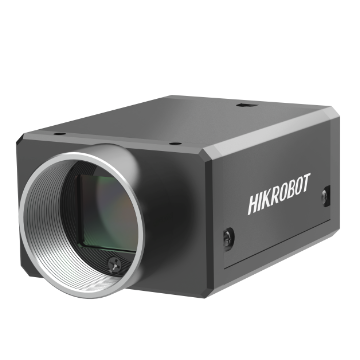

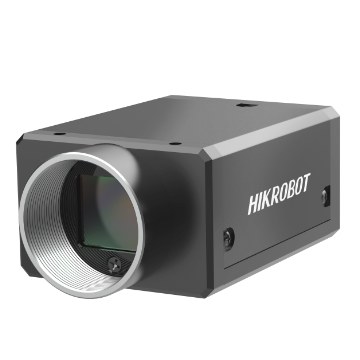

Hikrobot MV-CH100-60UC

Hikrobot MV-CH100-60UC — MV-CH100-60UM/UC camera adopts CMOS global sensor to  Mono camera: MV-CH100-60UM provide high-quality images. It uses USB 3.0 interface to transmit  Color camera: MV-CH100-60UC non-compressed images in real time, and its max. frame rate can Applicable. Genuine Hikrobot product.

1,510.26 € 1,510.26 €
kr 11,289.33
(Tax excluded)
Contact Us
Documents
MV-CH100-60UC - Datasheet.pdf MV-CH100-60UC - Drawing.pdf MV-CH100-60UC - User Manual.pdf
OFFICIAL HIKROBOT PARTNERCE · EU compliant

Hikrobot MV-CH100-60UC

CH Area Scan Camera

Order code
MV-CH100-60UC
Order number
306302204
Resolution
4096 × 2460
Frame rate
36 fps @ 4096 × 2460 Bayer GR 8
Interface
USB 3.0, compatible with USB 2.0
Pixel size
3.45 μm × 3.45 μm

Hikrobot MV-CH100-60UC is an industrial machine-vision camera for inspection, measurement and positioning in automated production.

Key features

✓Supports auto or manual adjustment of gain, exposure time, white balance, LUT, Gamma correction, etc.
✓Supports customized ROI, horizontal and vertical reverse image output.
✓Supports hardware trigger, software trigger, free run, etc.
✓Compatible with USB3 Vision Protocol, GenlCam Standard, and the third-party software based on these protocol and standard.

Applications & Industries

What you can solve with this product:

Typical industries: Semiconductor
Presence and completeness inspection
Presence and completeness inspection
Measurement and positioning
Measurement and positioning
Surface and print/label inspection
Surface and print/label inspection
Robot guidance and pick-and-place
Robot guidance and pick-and-place

Specifications

Performance
Sensor typeCMOS, global shutter
Sensor modelStacked BSI
Pixel size3.45 μm × 3.45 μm
Sensor size1"
Resolution4096 × 2460
Max. frame rate36 fps @ 4096 × 2460 Bayer GR 8
Dynamic range58.2 dB
SNR43 dB
Gain0 dB to 24 dB
Exposure time80 μs to 10 sec
Exposure modeOff/Once/Continuous exposure mode
Mono/colorColor
Pixel formatMono 8/10/12, Bayer GR 8/10/10Packed/12/12Packed, YUV422Packed, YUV422_YUYV_Packed, RGB 8, BGR 8
BinningSupports 1 × 1, 2 × 2, 4 × 4
DecimationSupports 1 × 1, 2 × 2, 4 × 4
Reverse imageSupports horizontal and vertical reverse image output
Electrical feature
Data interfaceUSB 3.0, compatible with USB 2.0

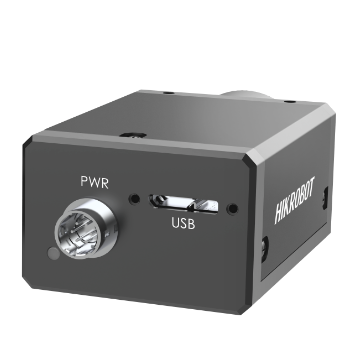

Digital I/O6-pin P7 connector provides power and I/O, including opto-isolated input × 1 (Line 0), opto-isolated output × 1 (Line 1), bi-directional non-isolated I/O × 1 (Line 2).
Power supply9 VDC to 24 VDC, supports USB power supply
Power consumptionTyp. 4.0 W @ 5 VDC (USB 3.0 provides power supply)
Mechanical
Dimension29 mm × 44 mm × 59 mm (1.1" × 1.7" × 2.3")
WeightApprox. 113 g (0.2 lb.)
Ingress protectionIP40 (under proper lens installation and wiring)
TemperatureWorking temperature: –10 °C to 50 °C (14 °F to 122 °F) Storage temperature: –30 °C to 70 °C (–22 °F to 158 °F)
Humidity20% RH to 95% RH (no condensation)
General
Client softwareMVS or third-party software meeting with USB3 Vision Protocol
Operating system32/64-bit Windows 7/10, 64-bit Windows 11, and 32/64-bit Linux
CompatibilityUSB3 Vision, GenICam
CertificationCE, RoHS, KC
Additional specifications
Lens mountC-mount
