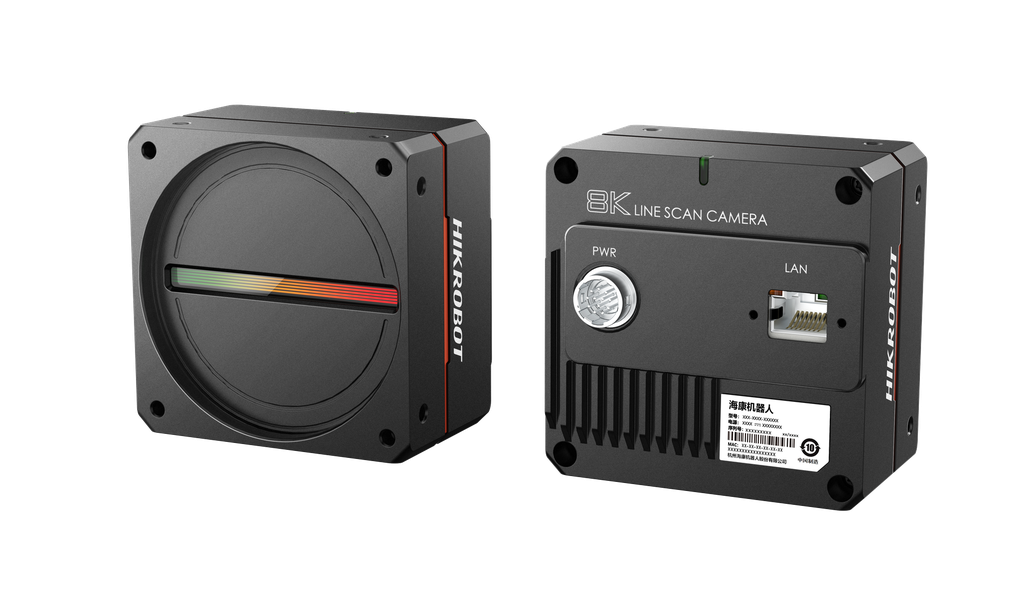

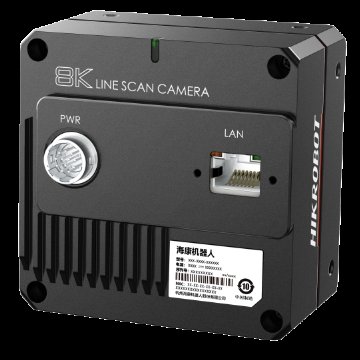

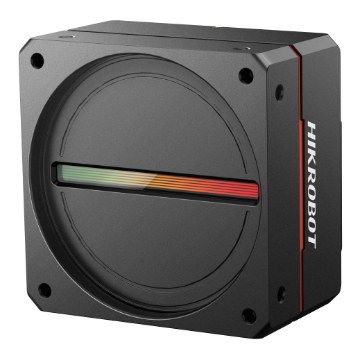

Hikrobot MV-CL083-92GC

CL Line Scan Camera

Key features

Key Feature

  • Supports high bandwidth image compression mode, trigger-width exposure, RGB true color imaging, etc.

  • Rich ISP image algorithms and supports manual adjustment for Gamma correction, flat field correction, LUT, black level, etc.

  • Adopts bi-directional I/O hardware design.

  • Compact design and flexible installation.

  • Compatible with GigE Vision V2.0, GenlCam standard.



Available Model

MV-CL083-92GC


Dimension

Technical specifications

Product ModelMV-CL083-92GC
Type8K 7μm GigE line scan camera，Gpixel，Color
Sensor typeCMOS
Pixel size7 μm × 7 μm
Resolution8192 × 3
Image modeSupports 1-line
Max. line rateStandard mode: 14.1 kHz @ Bayer·RG·8/Mono·8, 7.7 kHz @ Bayer·RG·10, 4.7 kHz @ RGB·8/BGR·8 High-bandwidth mode: 33 kHz @Bayer·RG·/Mono 8, 23.2 kHz @Bayer·RG·10, 12.5 kHz @RGB·8/BGR·8
Dynamic range63.4 dB
SNR40.8 dB
Gain1.0 ×
Exposure time3 μs to 10 ms
Exposure modeOff/ Once/ Continuous exposure mode, and supports trigger-width exposure
MonoColor
Pixel formatBayer RG 8/10, RGB 8, BGR 8, Mono 8
BinningSupports 1 × 1, 1 × 2, 1 × 4, 2 × 1, 2 × 2, 2 × 4, 4 × 1, 4 × 2, 4 × 4
Reverse imageSupports horizontal reverse image output
Trigger modeExternal trigger, internal trigger
External trigger modeLine trigger, frame trigger, line + frame trigger
Data interfaceGigabit Ethernet, compatible with Fast Ethernet
Digital I/O12-pin P10 connector provides power and I/O: configurable input or output × 4 (Line 0/1/3/4) and supports single-ended/differential
Power supply12 VDC to 24 VDC
Power consumptionTyp. 7.7 W @12 VDC
Lens mountM72*0.75, flange back length 12 mm, applicable to F-mount, C-mount and others via adapter
Dimension76 mm × 76 mm × 46.7 mm (3.0" × 3.0" × 1.8")
WeightApprox. 400 g (0.9 lb.)
Ingress protectionIP40 (under proper lens installation and wiring)
TemperatureWorking temperature: –20 °C to 50 °C (–4 °F to 122 °F) Storage temperature: –30 °C to 80 °C (–22 °F to 176 °F)
Humidity5% Rh to 90% RH (no condesation)
Client softwareMVS or the third-party software meeting with GigE Vision protocol
Operating system32/64-bit Windows 7/10, 32/64-bit Linux
CompatibilityGigE Vision V2.0, GenICam
CertificationCE, RoHS, KC
