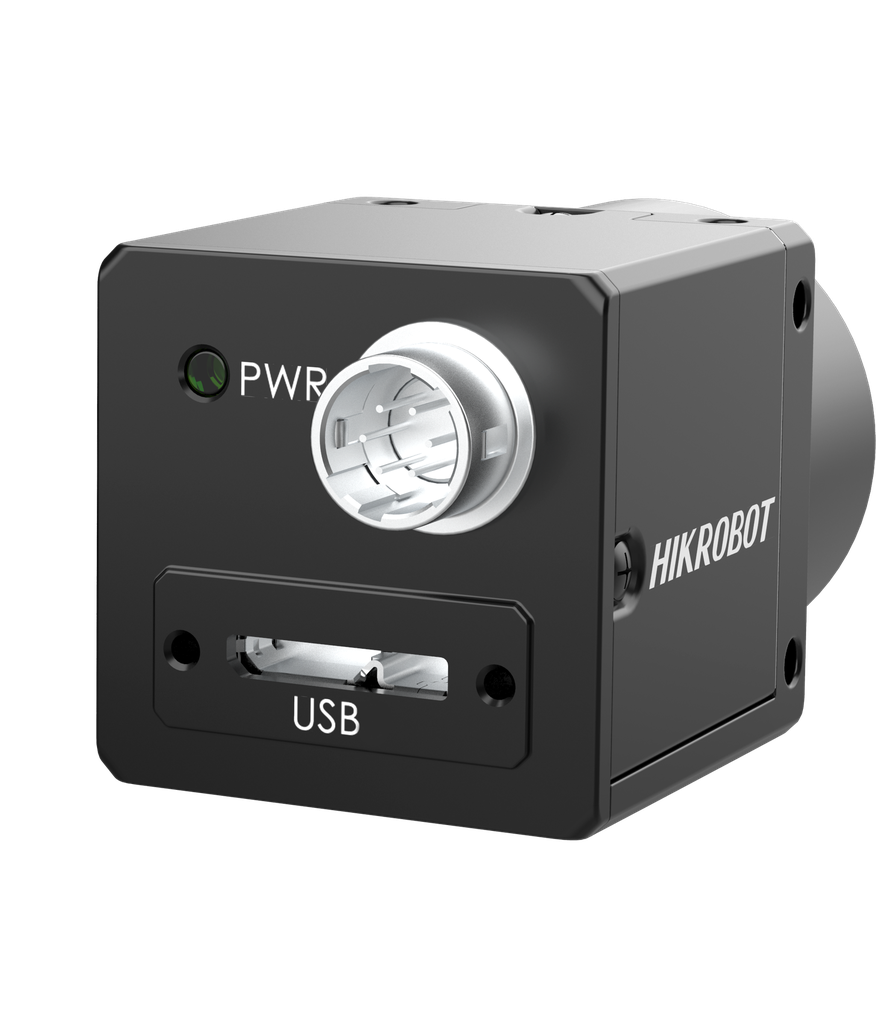

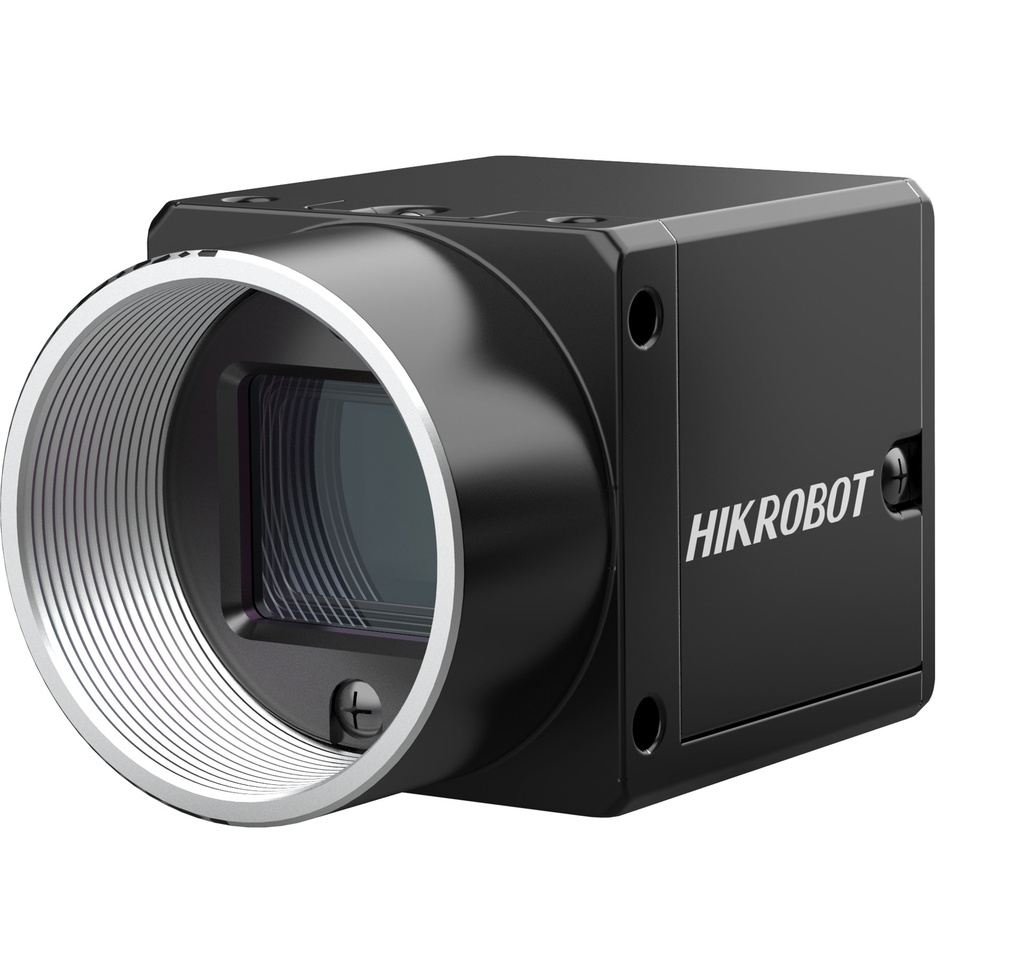

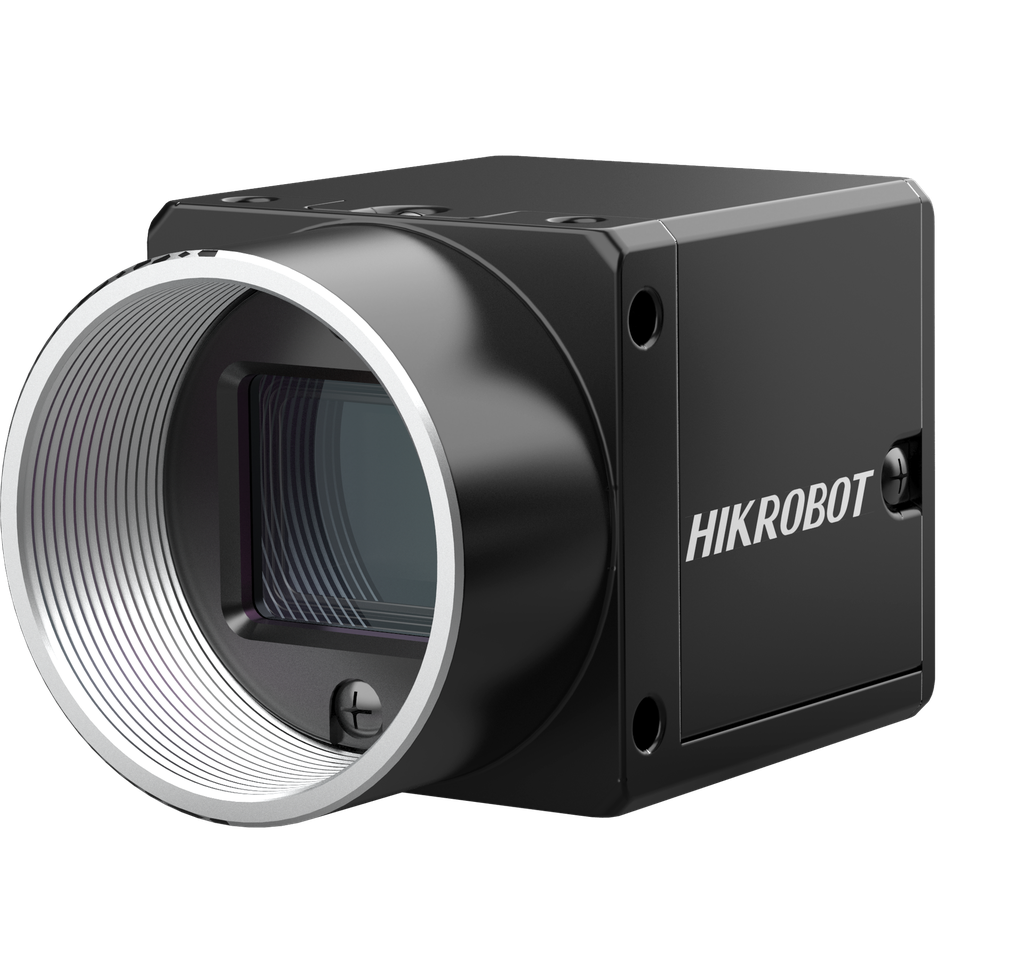

Hikrobot MV-CH123-10UM

Hikrobot MV-CH123-10UM — MV-CH123-10UM/UC camera adopts Sony® IMX545 sensor to  Mono camera: MV-CH123-10UM provide high-quality images. It uses USB 3.0 interface to transmit  Color camera: MV-CH123-10UC non-compressed images in real time, and its max. frame rate can Applicable. Genuine product, supplied by ZTEC.

0.00 € 0.00 €
kr 0.00
(Tax excluded)
Contact Us
Documents
MV-CH123-10UM - Datasheet.pdf MV-CH123-10UM - Drawing.pdf MV-CH123-10UM - User Manual.pdf
OFFICIAL HIKROBOT PARTNERCE · EU compliant

Hikrobot MV-CH123-10UM

CH Area Scan Camera

Order code
MV-CH123-10UM
Order number
306302405
Resolution
4096 × 3000
Frame rate
31.5 fps @ 4096 × 3000 Mono 8
Interface
USB 3.0, compatible with USB 2.0
Pixel size
2.74 μm × 2.74 μm

Hikrobot MV-CH123-10UM is an industrial machine-vision camera for inspection, measurement and positioning in automated production, supplied and supported by ZTEC as your Hikrobot partner in the Nordics and Baltics.

Key features

✓Supports LSC, sequencer, passive transfer function, etc.
✓Color camera supports interpolation, white balance, CCM, super palette, super bayer, etc.
✓Adopts brand new design and supports four-side installation.
✓Adopts compact design for small spatial installation.
✓Compatible with USB3 Vision Protocol, GenlCam Standard, and the third-party software based on these protocol and standard.

Applications & Industries

What you can solve with this product:

Typical industries: Semiconductor
Presence and completeness inspection
Presence and completeness inspection
Measurement and positioning
Measurement and positioning
Surface and print/label inspection
Surface and print/label inspection
Robot guidance and pick-and-place
Robot guidance and pick-and-place

Specifications

Performance
Sensor typeCMOS, global shutter
Sensor modelSony® IMX545
Pixel size2.74 μm × 2.74 μm
Sensor size1/1.1"
Resolution4096 × 3000
Max. frame rate31.5 fps @ 4096 × 3000 Mono 8
Dynamic range69.4 dB
SNR39.4 dB
Gain0 dB to 24 dB
Exposure timeUltraShort exposure mode: 1 μs to 2 μs Standard exposure mode: 3 μs to 10 sec
Exposure modeOff/Once/Continuous exposure mode
Mono/colorMono
Pixel formatMono 8/10/10Packed/12/12Packed
BinningSupports 1 × 1, 2 × 2, 4 × 4
DecimationSupports 1 × 1, 2 × 2, 4 × 4
Reverse imageSupports horizontal and vertical reverse image output
Electrical features
Data interfaceUSB 3.0, compatible with USB 2.0
Digital I/O6-pin P7 connector provides power and I/O, including opto-isolated input × 1 (Line 0), opto-isolated output × 1 (Line 1), bi-directional non-isolated I/O × 1 (Line 2).
Power supply9 VDC to 24 VDC, supports USB 3.0 power supply
Power consumptionTyp. 2.1 W @ 5 VDC (USB 3.0 provides power supply)
Mechanical
Lens mountC-mount
Dimension29 mm × 29 mm × 30 mm (1.1" × 1.1" × 1.2")
WeightApprox. 80 g (0.2 lb.)
Ingress protectionIP40 (under proper lens installation and wiring)
TemperatureWorking temperature: –10 °C to 50 °C (14 °F to 122 °F) Storage temperature: –30 °C to 70 °C (–22 °F to 158 °F)
Humidity20% RH to 95% RH (no condensation)
General
Client softwareMVS or third-party software meeting with USB3 Vision Protocol
Operating system32/64-bit Windows 7/10, 64-bit Windows 11, and 32/64-bit Linux
CompatibilityUSB3 Vision, GenICam
CertificationCE, RoHS, KC
