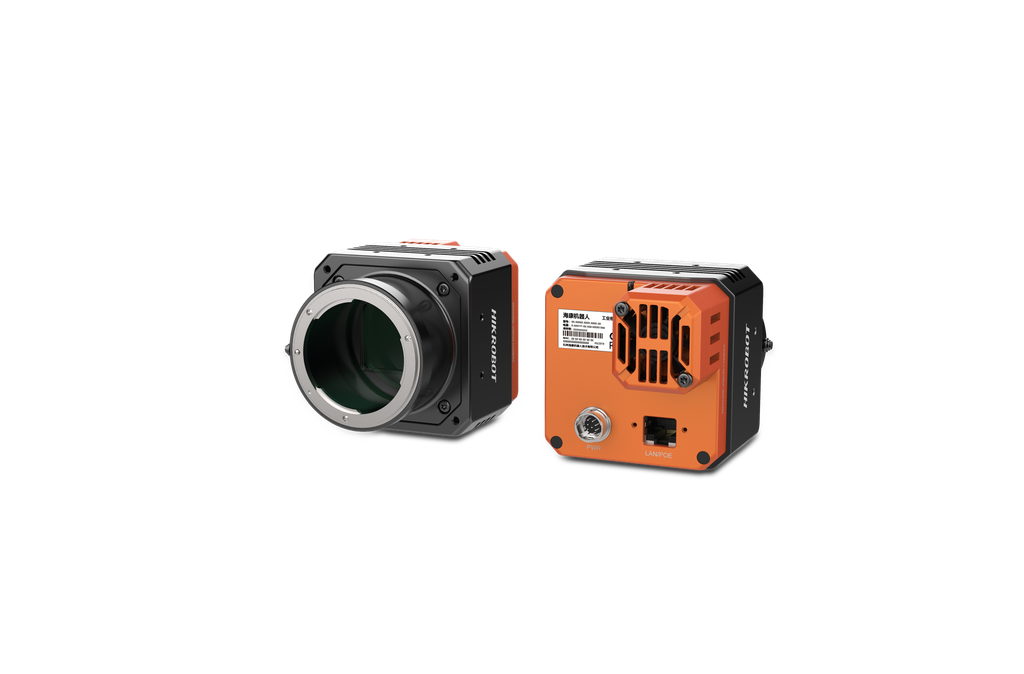

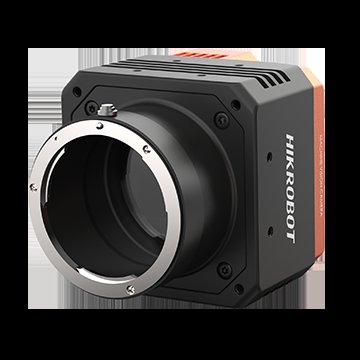

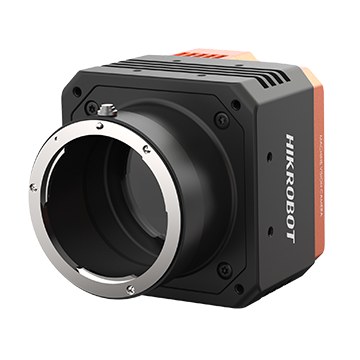

Hikrobot MV-CH310-10GM-F-NF

Hikrobot MV-CH310-10GM-F-NF — MV-CH310-10GM/GC camera adopts Sony® IMX342 sensor to  M58-mount with fan, mono: MV-CH310- provide high-quality image. It uses GigE interface to transmit 10GM-M58S-NF non-compressed images in real time with max. frame rate  F-mount with fan, mono: MV-CH310- reaching 3.9 fps in full resolution. 10GM-F-NF  M58-mount with fan, color: MV-CH310-. Genuine product, supplied by ZTEC.

15,388.52 € 15,388.52 €
kr 115,038.44
(Tax excluded)
Contact Us
Documents
MV-CH310-10GM-F-NF - Datasheet.pdf MV-CH310-10GM-F-NF - Drawing.pdf MV-CH310-10GM-F-NF - User Manual.pdf
OFFICIAL HIKROBOT PARTNERCE · EU compliant

Hikrobot MV-CH310-10GM-F-NF

CH Area Scan Camera

Order code
MV-CH310-10GM-F-NF
Order number
306302411
Resolution
6464 × 4852
Frame rate
3.9 fps @ 6464 × 4852 Mono 8
Pixel size
3.45 μm × 3.45 μm
Sensor
Sony® IMX342

Hikrobot MV-CH310-10GM-F-NF is an industrial machine-vision camera for inspection, measurement and positioning in automated production, supplied and supported by ZTEC as your Hikrobot partner in the Nordics and Baltics.

Key features

✓Resolution of 6464 × 4852, pixel size of 3.45 μm × 3.45 μm.
✓Supports auto and manual adjustment for gain, exposure control, LUT, Gamma correction, etc.
✓Adopts GigE interface providing max. transmission distance of 100 meters without relay.
✓Compact design with mounting holes on panels for flexible mounting.

Applications & Industries

What you can solve with this product:

Presence and completeness inspection
Presence and completeness inspection
Measurement and positioning
Measurement and positioning
Surface and print/label inspection
Surface and print/label inspection
Robot guidance and pick-and-place
Robot guidance and pick-and-place

Specifications

Performance
Sensor typeCMOS, global shutter
Sensor modelSony® IMX342
Pixel size3.45 μm × 3.45 μm
Sensor size22.3 mm × 16.7 mm
Resolution6464 × 4852
Max. frame rate3.9 fps @ 6464 × 4852 Mono 8
Dynamic range73 dB
SNR40 dB
Gain0 dB to 24 dB
Exposure timeUltraShort exposure mode: 3 μs to 33 μs Standard exposure mode: 36 μs to 2 sec
Exposure modeOff/Once/Continuous exposure mode
Mono/colorMono
Pixel formatMono 8/10/10Packed/12/12Packed
BinningSupports 1 × 1, 2 × 2
DecimationSupports 1 × 1, 2 × 2
Reverse imageSupports horizontal and vertical reverse image output
Electrical feature
Data interfaceGigabit Ethernet (1000 Mbit/s), compatible with Fast Ethernet (100 Mbit/s)
Digital I/O12-pin P10 connector provides power and I/O, including opto-isolated input × 1 (Line 0), opto-isolated output × 1 (Line 1), bi-directional non-isolated I/O × 1 (Line 2), and RS-232 × 1.
Power supply9 VDC to 24 VDC
Power consumptionTyp. 9 W @ 12 VDC
Mechanical
Lens mountF-mount, flange back length 46.5 mm
Dimension74 mm × 74 mm × 80.1 mm (2.9" × 2.9" × 3.2")
WeightApprox. 600 g (1.3 lb.)
Ingress protectionIP40 (under proper lens installation and wiring)
TemperatureWorking temperature: 0 °C to 50 °C (32 °F to 122 °F) Storage temperature: –30 °C to 70 °C (–22 °F to 158 °F)
Humidity20% RH to 95% RH (no condensation)
General
Client softwareMVS or third-party software meeting with GigE Vision Protocol
Operating system32/64-bit Windows 7/10, 64-bit Windows 11, 32/64-bit Linux
CompatibilityGigE Vision V2.0, GenlCam
CertificationCE, RoHS, KC
