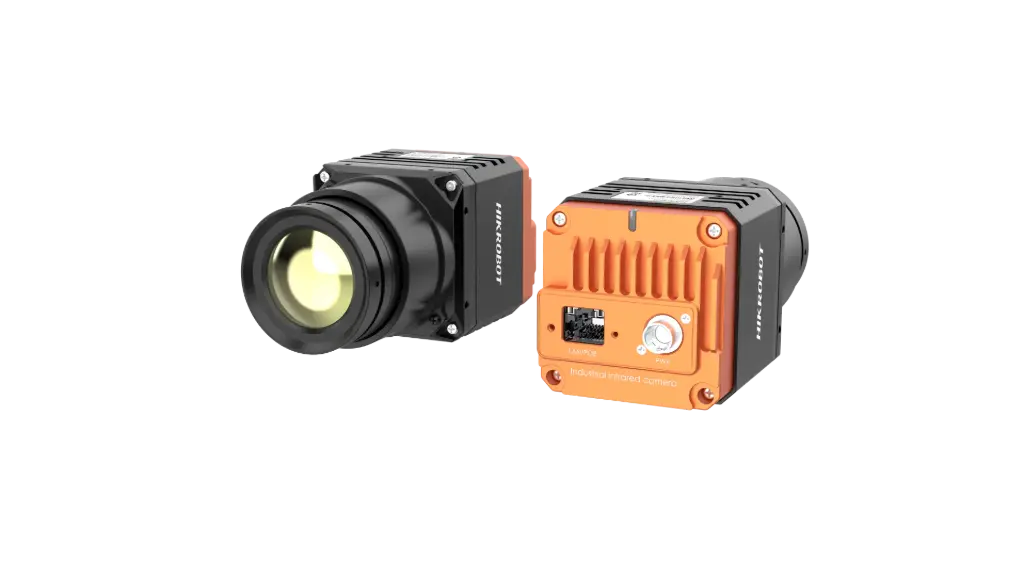

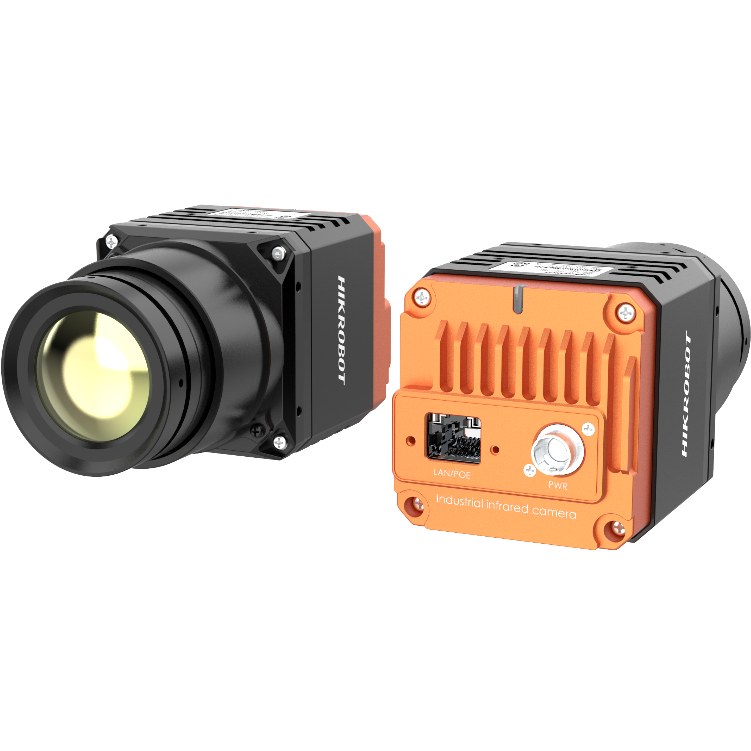

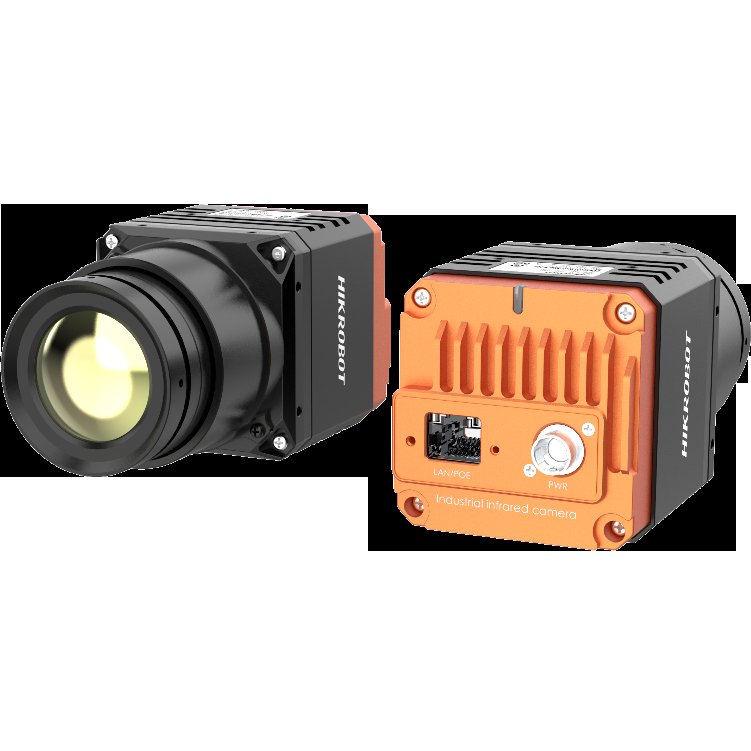

Hikrobot MV-CI003-GL-N6

Hikrobot MV-CI003-GL-N6 — An industrial machine-vision camera for inspection, measurement and positioning in automated production. Genuine product, supplied by ZTEC.

0.00 € 0.00 €
kr 0.00
(Tax excluded)
Contact Us
Documents
MV-CI003-GL-N6 - Datasheet.pdf MV-CI003-GL-N6 - Drawing.pdf MV-CI003-GL-N6 - User Manual.pdf MV-CI003-GL-Nx Drawing_6941.zip MV-CI003-GL-Nx datasheet.pdf UD27341B_Industrial Long Wave Infrared Camera User Manual_V1.1.0.pdf
OFFICIAL HIKROBOT PARTNERCE · EU compliant

Hikrobot MV-CI003-GL-N6

CI Series Infrared Camera

Order code
MV-CI003-GL-N6
Order number
306302433
Resolution
640 × 512
Frame rate
50 fps @ 640 × 512
Field of view
88.5° × 73.2°
Focal length
6.3 mm

Hikrobot MV-CI003-GL-N6 is an industrial machine-vision camera for inspection, measurement and positioning in automated production, supplied and supported by ZTEC as your Hikrobot partner in the Nordics and Baltics.

Key features

✓Adopts high-sensitivity vanadium oxide uncooled detector with 0.3 MP.
✓Supports multiple palette modes, grayscale detection, image adjustment, etc.
✓Compact design with mounting holes on panels for flexible mounting from 4 sides.
✓Adopts GigE interface and max. transmission distance of 100 meters without relay.
✓Compatible with GigE Vision V2.0 Protocol, GenlCam Standard.

Applications & Industries

What you can solve with this product:

Typical industries: Consumer electronicsBattery
Presence and completeness inspection
Presence and completeness inspection
Measurement and positioning
Measurement and positioning
Surface and print/label inspection
Surface and print/label inspection
Robot guidance and pick-and-place
Robot guidance and pick-and-place

Specifications

Performance
Sensor typeVanadium oxide uncooled detector
Pixel size17 μm
Resolution640 × 512
Max. frame rate50 fps @ 640 × 512
NETD< 35 mk (F1.0, 25 °C)
Response time< 10 ms
Pixel formatMono 8/12/14, YUV422_YUYV_Packed
Color palettesWhite Hot, Black Hot, Fusion 1, Rainbow, Fusion 2, Ironbow 1, Ironbow 2, Sepia, Color 1, Color 2, Ice Fire, Rain, Green Hot, Red Hot, Dark Blue
Image processSupports brightness, contrast, image detail strength, digital noise reduction (spatial and temporal)
Focal length6.3 mm
Field of view88.5° × 73.2°
Min. operation distance0.1 m
Electrical feature
Data interfaceGigabit Ethernet (1000 Mbit/s), compatible with Fast Ethernet (100 Mbit/s)
Digital I/O6-pin P7 connector provides power and I/O, including opto-isolated input × 1 (Line 0), opto-isolated output × 1 (Line 1), bi-directional non-isolated I/O × 1 (Line 2).
Power supply9 VDC to 24 VDC, supports PoE
Power consumptionTyp. 2.5 W @ 12 VDC
Mechanical
Lens mountM34*0.75
Dimension58 mm × 58 mm × 115.5 mm (2.3" × 2.3" × 4.5")
WeightApprox. 275 g (0.6 lb.)
Ingress protectionIP40 (under proper lens installation and wiring)
TemperatureWorking temperature: –30 °C to 60 °C (–22 °F to 140 °F) Storage temperature: –30 °C to 70 °C (–22 °F to 158 °F)
Humidity20% RH to 90% RH (no condensation)
General
Client softwareMVS or third-party software meeting with GigE Vision Protocol
Operating system32/64-bit Windows 7/10, 64-bit Windows 11, and 32/64-bit Linux.
CompatibilityGigE Vision V2.0, GenICam
CertificationCE, RoHS, KC
