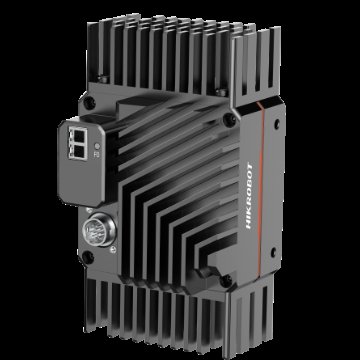

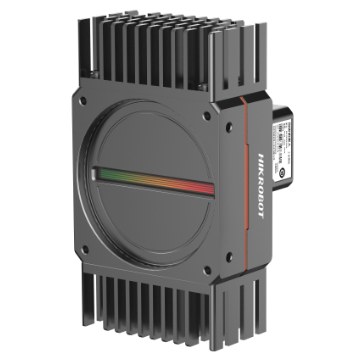

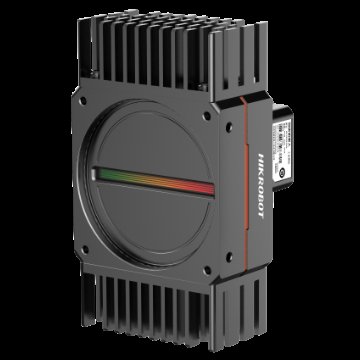

Hikrobot MV-CL082-91F1M

CL Line Scan Camera

Order code
MV-CL082-91F1M
Order number
306302444
Resolution
8192 × 2
Interface
LC fiber connector
Pixel size
7 μm × 7 μm

Hikrobot MV-CL082-91F1M is an industrial machine-vision camera for inspection, measurement and positioning in automated production, supplied and supported by ZTEC as your Hikrobot partner in the Nordics and Baltics.

Key features

✓Adopts multiple ISP like Gamma correction, flat field correction, LUT, black level offset, etc.
✓Provides one XoF fiber port with 10 GB bandwidth.
✓Supports multiple exposure and acquisition methods.
✓Supports 2-TDI with max. line rate of 146 kHz.
✓Adopts bi-directional configurable I/O hardware design.
✓Compact design and flexible installation.

Applications & Industries

What you can solve with this product:

Typical industries: New energy
Presence and completeness inspection
Presence and completeness inspection
Measurement and positioning
Measurement and positioning
Surface and print/label inspection
Surface and print/label inspection
Robot guidance and pick-and-place
Robot guidance and pick-and-place

Specifications

Performance
Sensor typeCMOS
Pixel size7 μm × 7 μm
Resolution8192 × 2
Image modeSupports 1-Line, 2-TDI
Max. line rate146 kHz (1-Line), 100 kHz (2-TDI)
Dynamic range63.4 dB
SNR40.8 dB
Gain1.0 ×
Exposure time3 μs to 10 ms
Exposure modeOff/Once/Continuous exposure mode, and supports trigger-width exposure
MonoMono
Pixel formatMono 8/10/12
BinningSupports 1 × 1, 1 × 2, 1 × 4, 2 × 1, 2 × 2, 2 × 4, 4 × 1, 4 × 2, 4 × 4
Reverse imageSupports horizontal reverse image output
Trigger modeExternal trigger, internal trigger
External trigger modeLine trigger, frame trigger, line + frame trigger
Electrical feature
Data interfaceLC fiber connector
Digital I/O12-pin P10 connector provides power and I/O: Configurable input/output × 4 (Line 0/1/3/4) and single-ended/differential is supported.
Power supply12 VDC to 24 VDC
Power consumptionTyp. 11.1 W @ 24 VDC
Mechanical
Lens mountM72*0.75, flange back length 12 mm, applicable to F-mount via lens adapter
Dimension132 mm × 76 mm × 57.4 mm (5.2" × 3.0" × 2.3")
WeightApprox. 600 g (1.3 lb.)
Ingress protectionIP40 (under proper lens installation and wiring)
TemperatureWorking temperature: –20 °C to 50 °C (–4 °F to 122 °F) Storage temperature: –30 °C to 80 °C (–22 °F to 176 °F)
Humidity5% RH to 90% RH (no condensation)
General
Client softwareMVS
Operating system32/64-bit Windows 7/10, 64-bit Windows 11
CompatibilitySelf-developed protocol, GenlCam
CertificationCE, RoHS, KC
