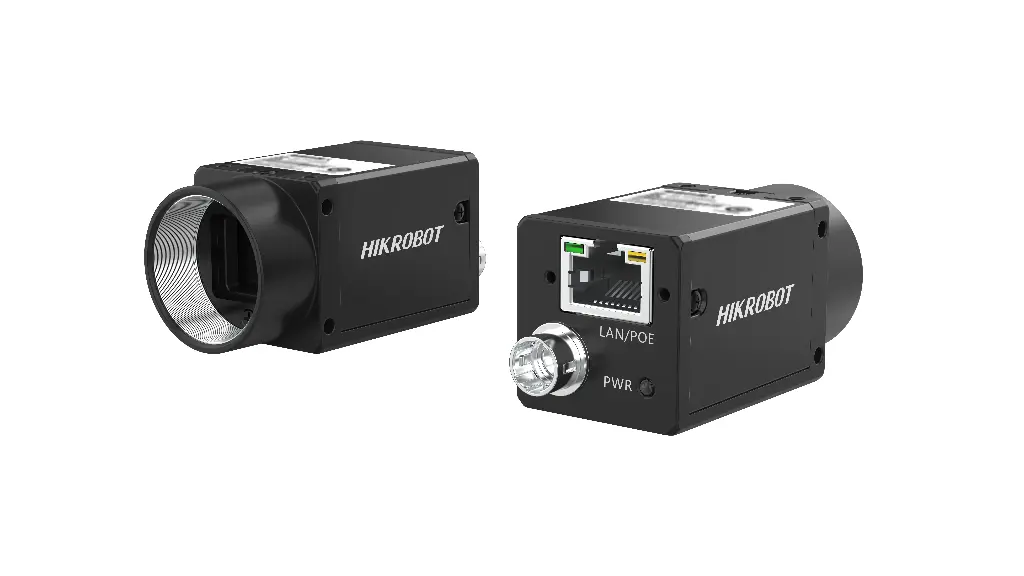

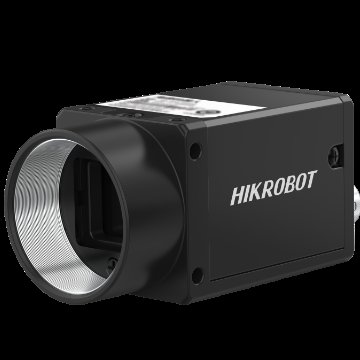

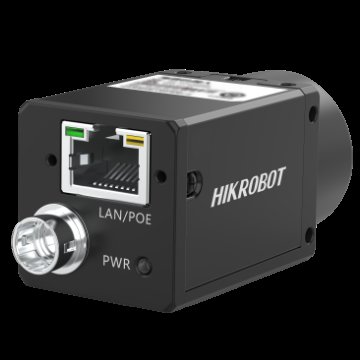

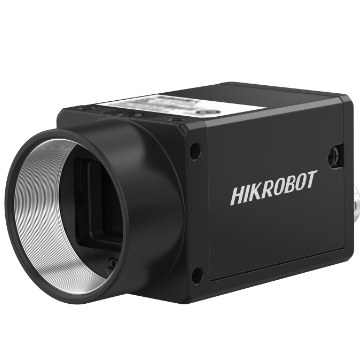

Hikrobot MV-CI013-GS-NN

Hikrobot MV-CI013-GS-NN — MV-CI013-GS-NN camera adopts InGaAs sensor and has MV-CI013-GS-NN built-in multiple ISP functions. It uses GigE interface to Applicable. Genuine Hikrobot product.

45,539.12 € 45,539.12 €
kr 340,395.78
(Tax excluded)
Contact Us
Documents
Industrial Short Wave Infrared Camera User Manual_V1.0.08.pdf MV-CI013-GS-NN - Datasheet.pdf MV-CI013-GS-NN - Drawing.pdf MV-CI013-GS-NN - User Manual.pdf MV-CI013-GS-NN Drawing.zip MV-CI013-GS-NN Industrial Short Wave Infrared Camera_datasheet.pdf
OFFICIAL HIKROBOT PARTNERCE · EU compliant

Hikrobot MV-CI013-GS-NN

CI Series Infrared Camera

Order code
MV-CI013-GS-NN
Order number
306302446
Resolution
1280 × 1024
Frame rate
91 fps @ 1280 × 1024 Mono 8
Pixel size
5 μm × 5 μm
Sensor
Sony® IMX990

Hikrobot MV-CI013-GS-NN is an industrial machine-vision camera for inspection, measurement and positioning in automated production.

Key features

✓Adopts InGaAs sensor and supports spectral imaging of 0.4 μm to 1.7 μm.
✓Multiple ISP functions like digital noise reduction, contrast ratio, etc.
✓Adopts compact structure and design to meet spatial requirements.
✓Adopts GigE interface and max. transmission distance of 100 meters without relay.
✓Compatible with GigE Vision V2.0 Protocol, GenlCam Standard, and third-party software based on the protocol and standard.

Applications & Industries

What you can solve with this product:

Typical industries: Semiconductor
Presence and completeness inspection
Presence and completeness inspection
Measurement and positioning
Measurement and positioning
Surface and print/label inspection
Surface and print/label inspection
Robot guidance and pick-and-place
Robot guidance and pick-and-place

Specifications

Performance
Sensor typeInGaAs
Sensor modelSony® IMX990
Pixel size5 μm × 5 μm
Sensor size1/2"
Resolution1280 × 1024
Max. frame rate91 fps @ 1280 × 1024 Mono 8
Dynamic range56 dB
SNR52.2 dB
Gain0 dB to 18 dB
Exposure timeUltraShort exposure mode: 3 μs to 7 μs Standard exposure mode: 8 μs to 0.1 sec
Exposure modeOff/Once/Continuous exposure mode
Pixel formatMono 8/10/10Packed/12/12Packed
BinningSupports 1 × 1, 2 × 2, 4 × 4
DecimationSupports 1 × 1, 2 × 2
Reverse imageSupports horizontal and vertical reverse image output
Electrical feature
Data interfaceGigabit Ethernet (1000 Mbit/s), compatible with Fast Ethernet (100 Mbit/s)
Digital I/O6-pin P7 connector provides power and I/O, including opto-isolated input × 1 (Line 0), opto-isolated output × 1 (Line 1), bi-directional non-isolated I/O × 1 (Line 2)
Power supply9 VDC to 24 VDC, supports PoE
Power consumptionTyp. 2.7 W @ 12 VDC
Mechanical
Lens mountC-mount
Dimension29 mm × 29 mm × 42 mm (1.1" × 1.1" × 1.2")
WeightApprox. 100 g (0.2 lb.)
Ingress protectionIP40 (under proper lens installation and wiring)
TemperatureWorking temperature: –30 °C to 50 °C (–22 °F to 122 °F) Storage temperature: –30 °C to 70 °C (–22 °F to 158 °F)
Humidity20% RH to 95% RH (no condensation)
General
Client softwareMVS or third-party software meeting with GigE Vision Protocol
Operating system32/64-bit Windows 7/10, 64-bit Windows 11, and 32/64-bit Linux
CompatibilityGigE Vision V2.0, GenICam
CertificationCE, RoHS, KC
