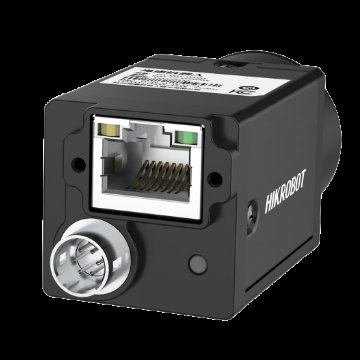

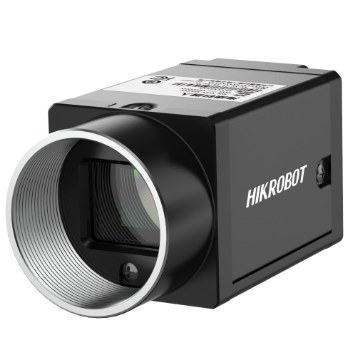

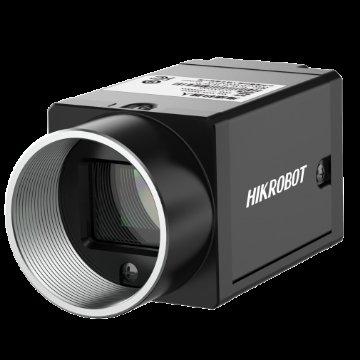

Hikrobot MV-CU200-20GM

Hikrobot MV-CU200-20GM — MV-CU200-20GM/GC camera adopts AR2020 sensor to ● Mono camera: MV-CU200-20GM provide high-quality images. It uses GigE interface to transmit ● Color camera: MV-CU200-20GC non-compressed images in real time, and its max. frame rate Applicable. Genuine product, supplied by ZTEC.

0.00 € 0.00 €
kr 0.00
(Tax excluded)
Contact Us
Documents
MV-CU200-20GM - Datasheet.pdf MV-CU200-20GM - Drawing.pdf MV-CU200-20GM - User Manual.pdf
OFFICIAL HIKROBOT PARTNERCE · EU compliant

Hikrobot MV-CU200-20GM

CU Area Scan Camera

Order code
MV-CU200-20GM
Order number
306302465
Resolution
5120 × 3840
Frame rate
5.9 fps @ 5120 × 3840 Mono 8
Pixel size
1.4 μm × 1.4 μm
Sensor
AR2020

Hikrobot MV-CU200-20GM is an industrial machine-vision camera for inspection, measurement and positioning in automated production, supplied and supported by ZTEC as your Hikrobot partner in the Nordics and Baltics.

Key features

✓Adopts low power consumption design with stable performance.
✓Supports auto and manual adjustment of gain, exposure time, etc.
✓Supports hardware trigger, software trigger, free run, etc.
✓Adopts GigE interface and max. transmission distance of 100 meters without relay.
✓Compatible with GigE Vision V2.0 Protocol, GenlCam Standard, and third-party software based on the protocol and standard.

Applications & Industries

What you can solve with this product:

Typical industries: SemiconductorLogistics
Presence and completeness inspection
Presence and completeness inspection
Measurement and positioning
Measurement and positioning
Surface and print/label inspection
Surface and print/label inspection
Robot guidance and pick-and-place
Robot guidance and pick-and-place

Specifications

Performance
Sensor typeCMOS, rolling shutter
Sensor modelAR2020
Pixel size1.4 μm × 1.4 μm
Sensor size1/1.8"
Resolution5120 × 3840
Max. frame rate5.9 fps @ 5120 × 3840 Mono 8
Dynamic range61 dB
SNR39 dB
Gain0 dB to 48 dB
Exposure time53 μs to 10 sec
Exposure modeOff/Once/Continuous exposure mode
MonoMono
Pixel formatMono 8/10/10 Packed/12/12 Packed
BinningSupports 1 × 1, 2 × 2, 4 × 4
DecimationNot supported
Reverse imageSupports horizontal and vertical reverse image output
Electrical features
Data interfaceGigabit Ethernet (1000 Mbit/s), compatible with Fast Ethernet (100 Mbit/s)
Digital I/O6-pin P7 connector provides power and I/O, including opto-isolated input × 1 (Line 0), opto-isolated output × 1 (Line 1), bi-directional non-isolated I/O × 1 (Line 2).
Power supply9 VDC to 24 VDC; PoE is optional
Power consumptionTyp. 2.0 W @ 12 VDC
Mechanical
Dimension (without lens)29 mm × 29 mm × 42 mm (1.1" × 1.1" × 1.7")
WeightApprox. 100 g (0.2 lb.)
Ingress protectionIP30 (under proper lens installation and wiring)
TemperatureWorking temperature: 0 °C to 50 °C (32 °F to 122 °F) Storage temperature: –30 °C to 80 °C (–22 °F to 176 °F)
Humidity20% RH to 95% RH (no condensation)
General
Client softwareMVS or third-party software meeting with GigE Vision Protocol
Operating system32/64-bit Windows 7/10, 64-bit Windows 11, 32/64-bit Linux
CompatibilityGigE Vision V2.0, GenICam
CertificationCE, RoHS, KC
Additional specifications
Lens mountC-mount
