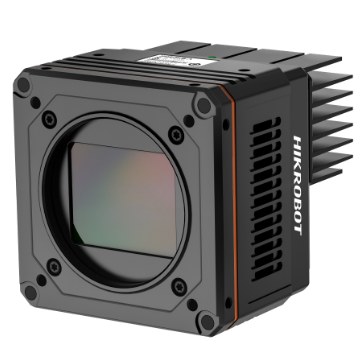

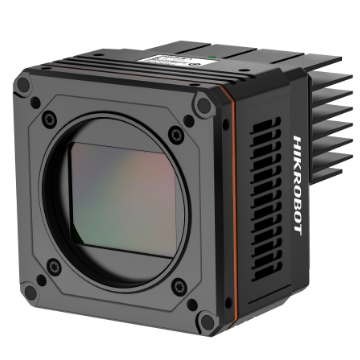

Hikrobot MV-CH1030-90TM-M58S-NN

Hikrobot MV-CH1030-90TM-M58S-NN — MV-CH1030-90TM/TC camera adopts Gpixel GMAX32103  Mono: MV-CH1030-90TM-M58S-NN sensor to provide high-quality image. It uses 10 GigE interface  Color: MV-CH1030-90TC-M58S-NN to transmit non-compressed image in real time, and its max. Applicable. Genuine product, supplied by ZTEC.

0.00 € 0.00 €
kr 0.00
(Tax excluded)
Contact Us
Documents
MV-CH1030-90TM-M58S-NN - Datasheet.pdf MV-CH1030-90TM-M58S-NN - Drawing.pdf MV-CH1030-90TM-M58S-NN - User Manual.pdf
OFFICIAL HIKROBOT PARTNERCE · EU compliant

Hikrobot MV-CH1030-90TM-M58S-NN

CH Area Scan Camera

Order code
MV-CH1030-90TM-M58S-NN
Order number
306302480
Resolution
11264 × 9200
Frame rate
11 fps @ 11264 × 9200 Mono 8
Pixel size
3.2 μm × 3.2 μm
Sensor
Gpixel GMAX32103

Hikrobot MV-CH1030-90TM-M58S-NN is an industrial machine-vision camera for inspection, measurement and positioning in automated production, supplied and supported by ZTEC as your Hikrobot partner in the Nordics and Baltics.

Key features

✓Resolution of 11276 × 9200, pixel size of 3.2 μm × 3.2 μm.
✓Supports auto or manual adjustment of exposure time and white balance, and manual adjustment of gain, Gamma correction, LUT, etc.
✓Adopts 10 GigE interface providing max. transmission distance of 100 meters without relay.
✓Adopts installation holes for flexible installation.
✓Compatible with GigE Vision Protocol V2.0, GenlCam Standard, and third-party software based on protocols.

Applications & Industries

What you can solve with this product:

Presence and completeness inspection
Presence and completeness inspection
Measurement and positioning
Measurement and positioning
Surface and print/label inspection
Surface and print/label inspection
Robot guidance and pick-and-place
Robot guidance and pick-and-place

Specifications

Performance
Sensor typeCMOS, global shutter
Sensor modelGpixel GMAX32103
Pixel size3.2 μm × 3.2 μm
Sensor size46.6 mm
Resolution11264 × 9200
Max. frame rate11 fps @ 11264 × 9200 Mono 8
Dynamic range64.86 dB
SNR39.88 dB
Gain1.4 × to 5.2 ×
Exposure time20 μs to 10 sec
Exposure modeOff/Once/Continuous exposure mode
Mono/colorMono
Pixel formatMono 8/10/10Packed/12/12Packed
BinningSupports 1 × 1, 1 × 2, 1 × 4, 2 ×1, 2 × 2, 2 × 4, 4 × 1, 4 × 2, 4 × 4
DecimationSupports 1 × 1, 1 × 2, 1 × 4, 2 ×1, 2 × 2, 2 × 4, 4 × 1, 4 × 2, 4 × 4
Reverse imageSupports horizontal and vertical reverse image output
Electrical feature
Data interface10 Gigabit Ethernet (10000 Mbit/s), compatible with Gigabit Ethernet (1000 Mbit/s)

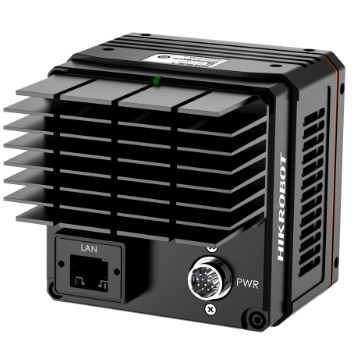

Digital I/O12-pin P10 connector provides power and I/O, including opto-isolated input × 1 (Line 0), opto-isolated output × 1 (Line 1), bi-directional non-isolated I/O × 1 (Line 2), and RS-232 × 1
Power supply12 VDC to 24 VDC
Power consumptionTyp. 12.6 W @ 12 VDC
Mechanical
Dimension84 mm × 84 mm × 92.5 mm (3.3" × 3.3" × 3.6")
Weight738 g (1.6 lb.)
Ingress protectionIP40 (under proper lens installation and wiring)
TemperatureWorking temperature: 0 °C to 50 °C (32 °F to 122 °F) Storage temperature: –30 °C to 70 °C (–22 °F to 158 °F)
Humidity20% RH to 95% RH (no condensation)
General
Client softwareMVS or third-party software meeting with GigE Vision Protocol
Operating system32/64-bit Windows XP/7/10, 64-bit Windows 11, and 32/64-bit Linux
CompatibilityGigE Vision V2.0, GenICam
CertificationCE, RoHS, KC
Additional specifications
Lens mountM58*0.75, flange back length 11.48 mm
