Hikrobot MV-CB016-10UM-B V4.0

Hikrobot MV-CB016-10UM-B — MV-CB016-10UM/UC camera adopts Sony® IMX273 sensor to Electronic semiconductor, factory provide high-quality image. With single board design, it is small in automation, logistics, liquor and size, which can meet different spatial requirements. beverage, medicine packing, etc.. Genuine product, supplied by ZTEC.

0.00 € 0.00 €
kr 0.00
(Tax excluded)
Contact Us
Documents
MV-CB016-10UM-B - CAD (RAR).rar MV-CB016-10UM-B - Datasheet.pdf MV-CB016-10UM-B - User Manual.pdf
OFFICIAL HIKROBOT PARTNERCE · EU compliant

Hikrobot MV-CB016-10UM-B

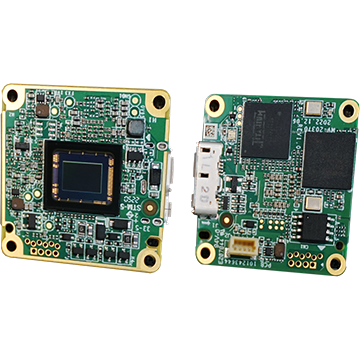

CB Board Level Camera

Order code
MV-CB016-10UM-B
Order number
306302492
Resolution
1440 × 1080
Interface
USB 3.0
Pixel size
3.45 μm × 3.45 μm
Sensor
Sony® IMX273

Hikrobot MV-CB016-10UM-B is an industrial machine-vision camera for inspection, measurement and positioning in automated production, supplied and supported by ZTEC as your Hikrobot partner in the Nordics and Baltics.

Key features

✓Supports auto and manual adjustment for gain, exposure control, white balance, LUT, etc.
✓Adopts image interpolation algorithm for color camera to have better color correction.
✓Power supply and data transmission via USB3.0 interface.
✓Compatible with USB3 Vision Protocol, GenlCam standard, and the third-party software based on these protocol and standard.

Applications & Industries

What you can solve with this product:

Typical industries: SemiconductorLogistics
Presence and completeness inspection
Presence and completeness inspection
Measurement and positioning
Measurement and positioning
Surface and print/label inspection
Surface and print/label inspection
Robot guidance and pick-and-place
Robot guidance and pick-and-place

Specifications

Performance
Sensor typeCMOS, global shutter
Sensor modelSony® IMX273
Pixel size3.45 μm × 3.45 μm
Sensor size1/2.9"
Resolution1440 × 1080
Max. frame rate165.4 fps @ 1440 × 1080 Mono 8 (ADC 12) 249.1 fps @ 1440 × 1080 Mono 8 (ADC 8)
Dynamic range71.5 dB
SNR39.9 dB
Gain0 dB to 17 dB
Exposure timeUltraShort exposure mode: 1 μs to 14 μs Standard exposure mode: 15 μs to 10 sec
Exposure modeOff/ Once/ Continuous exposure mode
MonoMono
Pixel formatMono 8/10/10Packed/12/12Packed
BinningSupports 1 × 1, 2 × 2
DecimationSupports 1 × 1, 2 × 2
Reverse imageSupports horizontal and vertical reverse image output
Electrical feature
Data interfaceUSB 3.0
Digital I/OBi-directional non-isolated I/O × 2 (Line 2, Line 5)
Power supplyUSB 3.0 power supply
Power consumptionTyp. 1.5 W @ 5 VDC
Mechanical
Dimension (without lens)32.5 mm × 32.5 mm × 1.6 mm (1.3" × 1.3" × 0.1")
WeightApprox. 10 g (0.02 lb.)
TemperatureWorking temperature: 0 °C to 50 °C (32 °F to 122 °F) Storage temperature: –30 °C to 70 °C (–22 °F to 158 °F)
Humidity20% RH to 80% RH (no condensation)
General
Client softwareMVS or third-party software with USB3 Vision Protocol
Operating system32/64-bit Windows 7/10, 64-bit Windows 11, and 32/64-bit Linux
CompatibilityUSB3 Vision, GenICam
CertificationCE, RoHS, KC
