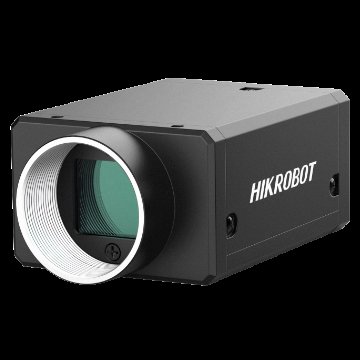

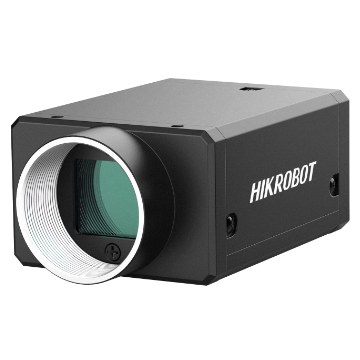

Hikrobot MV-CH250-90VC

Hikrobot MV-CH250-90VC — MV-CH250-90VM/VC camera adopts Gpixel GMAX0505 CMOS  Mono camera: MV-CH250-90VM sensor to provide high-quality images. It uses dual USB 3.0  Color camera: MV-CH250-90VC interfaces to transmit images in real time, and its max. frame rate Applicable. Genuine product, supplied by ZTEC.

646.43 € 646.43 €
kr 4,832.16
(Tax excluded)
Contact Us
Documents
MV-CH250-90VC - Datasheet.pdf MV-CH250-90VC - Drawing.pdf MV-CH250-90VC - User Manual.pdf
OFFICIAL HIKROBOT PARTNERCE · EU compliant

Hikrobot MV-CH250-90VC

CH Area Scan Camera

Order code
MV-CH250-90VC
Order number
306302506
Resolution
5120 × 5120
Frame rate
30 fps @5120 × 5120 Bayer BG 8
Interface
USB 3.0, compatible with USB 2.0
Pixel size
2.5 μm × 2.5 μm

Hikrobot MV-CH250-90VC is an industrial machine-vision camera for inspection, measurement and positioning in automated production, supplied and supported by ZTEC as your Hikrobot partner in the Nordics and Baltics.

Key features

✓Supports manual adjustment of gain, LUT, Gamma correction, etc.
✓Adopts dual USB 3.0 interfaces to transmit data.
✓Supports hardware trigger, software trigger, and free run.
✓Supports flexible installation via the installation holes.
✓Adopts compact design for small spatial installation.
✓Compatible GenlCam Standard.

Applications & Industries

What you can solve with this product:

Presence and completeness inspection
Presence and completeness inspection
Measurement and positioning
Measurement and positioning
Surface and print/label inspection
Surface and print/label inspection
Robot guidance and pick-and-place
Robot guidance and pick-and-place

Specifications

Performance
Sensor typeCMOS, global shutter
Sensor modelGpixel GMAX0505
Pixel size2.5 μm × 2.5 μm
Sensor size1.1"
Resolution5120 × 5120
Max. frame rate30 fps @5120 × 5120 Bayer BG 8
Dynamic range65 dB
SNR40 dB
Gain2.0 x to 5.0 x
Exposure timeUltraShort exposure mode: 2 μs to 8 μs Standard exposure mode: 9 μs to 10 sec
Exposure modeOff/Once/Continuous exposure mode
Mono/colorColor
Pixel formatMono 8/10/12 Bayer BG 8/10/10Packed/12/12Packed YUV422Packed, YUV422_YUYV_Packed RGB 8, BGR 8
BinningSupports 1 × 1, 2 × 2, 4 × 4
DecimationSupports 1 × 1, 2 × 2, 4 × 4
Reverse imageSupports horizontal and vertical reverse image output
Electrical features
Data interfaceUSB 3.0, compatible with USB 2.0

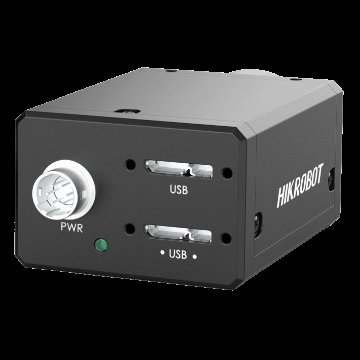

Digital I/O6-pin P7 connector provides power and I/O, including opto-isolated input × 1 (Line 0), opto-isolated output × 1 (Line 1), bi-directional non-isolated I/O × 1 (Line 2).
Power supply9 VDC to 24 VDC, supports USB 3.0 power supply
Power consumptionTyp. 5.5 W @ 5 VDC (dual USB 3.0 interfaces provide power supply)
Mechanical
Lens mountC-mount
Dimension29 mm × 44 mm × 59 mm (1.1" × 1.7" × 2.3")
WeightApprox. 100 g (0.2 lb.)
Ingress protectionIP40 (under proper lens installation and wiring)
TemperatureWorking temperature: –10 °C to 40 °C (14 °F to 104 °F) Storage temperature: –30 °C to 80 °C (–22 °F to 176 °F)
Humidity20% RH to 95% RH, no condensation
General
Client softwareMVS
Operating system32/64-bit Windows XP/7/10/11
CompatibilityGenICam
CertificationCE, RoHS, KC
