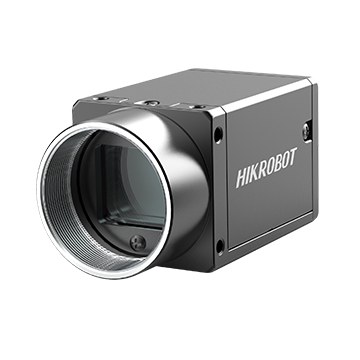

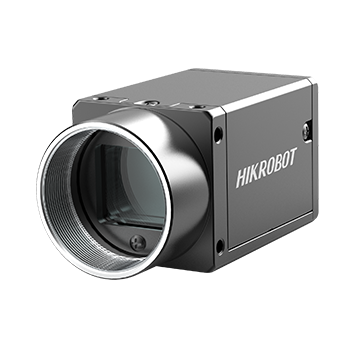

Hikrobot MV-CH120-60GC

Hikrobot MV-CH120-60GC — MV-CH120-60GM/GC camera adopts CMOS sensor to provide ● Mono camera: MV-CH120-60GM high-quality images. It uses GigE interface to transmit non- ● Color camera: MV-CH120-60GC compressed images in real time, and its max. frame rate can Applicable. Genuine Hikrobot product.

0.00 € 0.00 €
kr 0.00
(Tax excluded)
Contact Us
Documents
MV-CH120-60GC - CAD (RAR).rar MV-CH120-60GC - Datasheet.pdf MV-CH120-60GC - User Manual.pdf
OFFICIAL HIKROBOT PARTNERCE · EU compliant

Hikrobot MV-CH120-60GC

CH Area Scan Camera

Order code
MV-CH120-60GC
Order number
306302546
Resolution
4096 × 3000
Frame rate
9.5 fps @ 4096 × 3000 Bayer GB 8
Pixel size
3.45 μm × 3.45 μm
Sensor
Stacked BSI

Hikrobot MV-CH120-60GC is an industrial machine-vision camera for inspection, measurement and positioning in automated production.

Key features

✓Compact design with mounting holes on panels for flexible mounting from 4 sides.
✓Supports auto or manual adjustment of gain and exposure time, and LUT and Gamma correction function.
✓Supports LSC, Sequencer, passive transmission, etc.
✓Supports functions like white balance, CCM, Super Palette, and Super Bayer to provide high-quality images.
✓Compatible with GigE Vision V2.0 Protocol, GenlCam Standard, and third-party software based on the protocol and standard.

Applications & Industries

What you can solve with this product:

Typical industries: SemiconductorLogistics
Presence and completeness inspection
Presence and completeness inspection
Measurement and positioning
Measurement and positioning
Surface and print/label inspection
Surface and print/label inspection
Robot guidance and pick-and-place
Robot guidance and pick-and-place

Specifications

Performance
Sensor typeCMOS, global shutter
Sensor modelStacked BSI
Pixel size3.45 μm × 3.45 μm
Sensor size1.1"
Resolution4096 × 3000
Max. frame rate9.5 fps @ 4096 × 3000 Bayer GB 8
Dynamic range67.2 dB
SNR44.1 dB
Gain0 dB to 12 dB
Exposure time45 μs to 10 sec
Exposure modeOff/Once/Continuous exposure mode, supports TriggerWidth
Mono/colorColor
Pixel formatMono 8/10/12, Bayer GB 8/10/10Packed/12/12Packed, YUV422Packed, YUV422_YUYV_Packed, RGB 8, BGR 8
BinningSupports 1 × 1, 2 × 2, 4 × 4
DecimationSupports 1 × 1, 2 × 2, 4 × 4
Reverse imageSupports horizontal and vertical reverse image output
Electrical feature

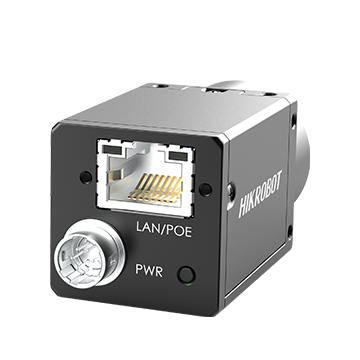

Data interfaceGigabit Ethernet (1000 Mbit/s), compatible with Fast Ethernet (100 Mbit/s)
Digital I/O6-pin P7 connector provides power and I/O, including opto-isolated input × 1 (Line 0), opto-isolated output × 1 (Line 1), bi-directional non-isolated I/O × 1 (Line 2).
Power supply9 VDC to 24 VDC, supports PoE
Power consumptionTyp. 2.2 W @ 12 VDC
Mechanical
Dimension29 mm × 29 mm × 42 mm (1.1" × 1.1" × 1.7")
WeightApprox. 100 g (0.2 lb.)
Ingress protectionIP40 (under proper lens installation and wiring)
TemperatureWorking temperature: –10 °C to 50 °C (14 °F to 122 °F) Storage temperature: –30 °C to 70 °C (–22 °F to 158 °F)
Humidity20% RH to 95% RH (no condensation)
General
Client softwareMVS or third-party software meeting with GigE Vision Protocol
Operating system32/64-bit Windows 7/10, 64-bit Windows 11, and 32/64-bit Linux
CompatibilityGigE Vision V2.0, GenlCam
CertificationCE, RoHS, KC
Additional specifications
Lens mountC-mount
