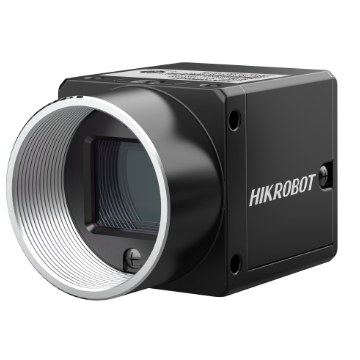

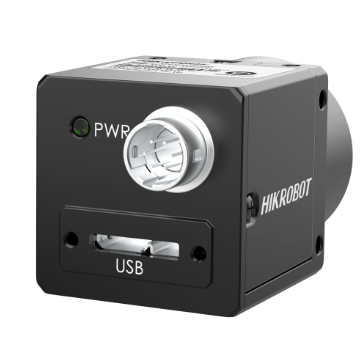

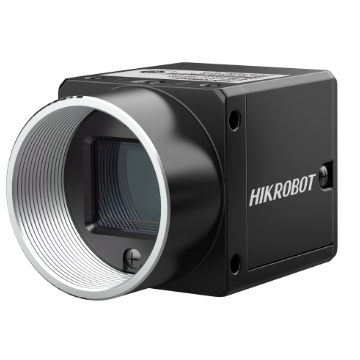

Hikrobot MV-CH050-60UM

CH Area Scan Camera

Order code
MV-CH050-60UM
Order number
306302591
Resolution
2448 × 2048
Frame rate
79 fps @ 2448 × 2048 Mono 8
Interface
USB 3.0, compatible with USB 2.0
Pixel size
3.45 μm × 3.45 μm

Hikrobot MV-CH050-60UM is an industrial machine-vision camera for inspection, measurement and positioning in automated production, supplied and supported by ZTEC as your Hikrobot partner in the Nordics and Baltics.

Key features

✓Adopts brand new structure design and supports installation from four sides.
✓Supports Sequencer, Super Palette and Super Bayer to provide high-quality images.
✓Supports auto or manual adjustment of gain, exposure time, white balance, LUT, Gamma correction, etc.
✓Supports hard trigger, software trigger, free run, etc.
✓Supports customized ROI, horizontal and vertical reverse image output.
✓Compatible with USB3 Vision Protocol, GenlCam Standard, and the third-party software based on the protocol and standard.

Applications & Industries

What you can solve with this product:

Typical industries: Semiconductor
Presence and completeness inspection
Presence and completeness inspection
Measurement and positioning
Measurement and positioning
Surface and print/label inspection
Surface and print/label inspection
Robot guidance and pick-and-place
Robot guidance and pick-and-place

Specifications

Performance
Sensor typeCMOS, global shutter
Sensor modelStacked BSI
Pixel size3.45 μm × 3.45 μm
Sensor size2/3"
Resolution2448 × 2048
Max. frame rate79 fps @ 2448 × 2048 Mono 8
Dynamic range73.9 dB
SNR42.4 dB
GainLCG: 0 dB to 13 dB HCG: 0 dB to 24 dB
Exposure timeLCG: 30 μs to 10 sec HCG: 5 μs to 10 sec
Exposure modeOff/Once/Continuous exposure mode
Mono/colorMono
Pixel formatMono 8/10/10Packed/12/12Packed
BinningSupports 1 × 1, 2 × 2, 4 × 4
DecimationSupports 1 × 1, 2 × 2, 4 × 4
Reverse imageSupports horizontal and vertical reverse image output
Electrical features
Data interfaceUSB 3.0, compatible with USB 2.0
Digital I/O6-pin P7 connector provides power and I/O, including opto-isolated input × 1 (Line 0), opto-isolated output × 1 (Line 1), bi-directional non-isolated I/O × 1 (Line 2).
Power supply9 VDC to 24 VDC, supports USB 3.0 power supply
Power consumptionTyp. 1.9 W @ 5 VDC (USB 3.0 provides power supply)
Mechanical
Lens mountC-mount
Dimension29 mm × 29 mm × 30 mm (1.1" × 1.1" × 1.2")
WeightApprox. 80 g (0.2 lb.)
Ingress protectionIP40 (under proper lens installation and wiring)
TemperatureWorking temperature: –10 °C to 50 °C (–14 °F to 122 °F) Storage temperature: –30 °C to 80 °C (–22 °F to 176 °F)
Humidity20% RH to 95% RH (no condensation)
General
Client softwareMVS or third-party software meeting with USB3 Vision Protocol
Operating system32/64-bit Windows 7/10, 64-bit Windows 11, and 32/64-bit Linux
CompatibilityUSB3 Vision, GenICam
CertificationCE, RoHS, KC
