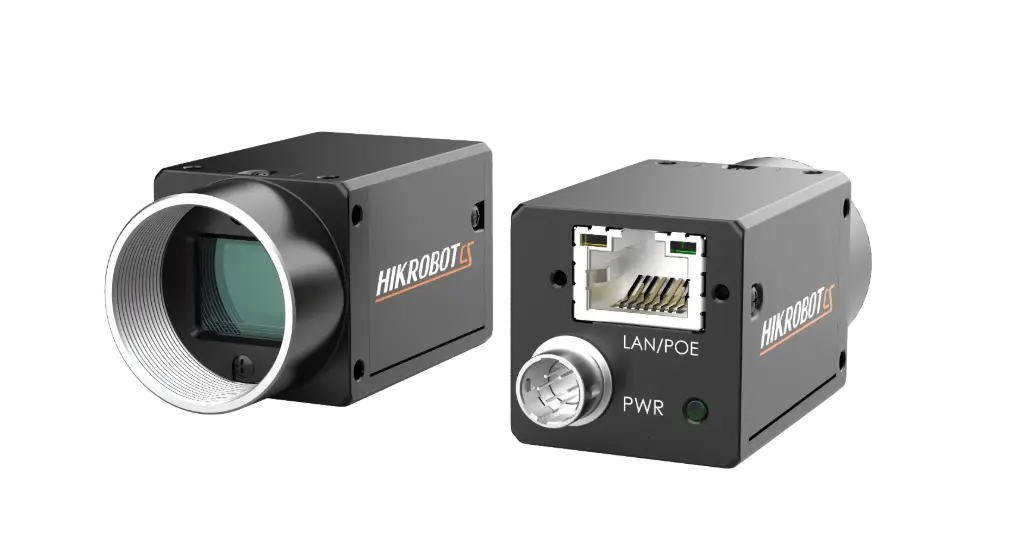

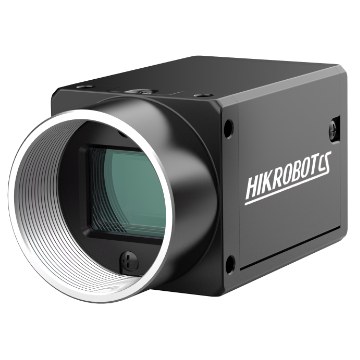

Hikrobot MV-CS050-90GM

Hikrobot MV-CS050-90GM — MV-CS050-90GM/GC camera adopts GMAX3405 CMOS sensor to  Mono camera: MV-CS050-90GM provide high-quality images and transmit images in real time, and its  Color camera: MV-CS050-90GC max. frame rate can reach 24.2 fps in full resolution. Applicable. Genuine product, supplied by ZTEC.

0.00 € 0.00 €
kr 0.00
(Tax excluded)
Contact Us
Documents
MV-CS050-90GM - CAD (RAR).rar MV-CS050-90GM - Datasheet.pdf MV-CS050-90GM - User Manual.pdf
OFFICIAL HIKROBOT PARTNERCE · EU compliant

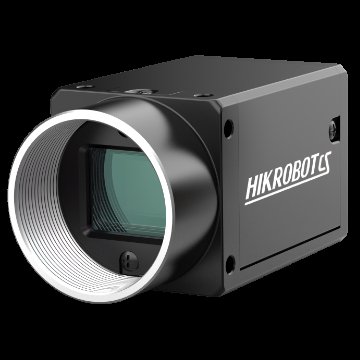

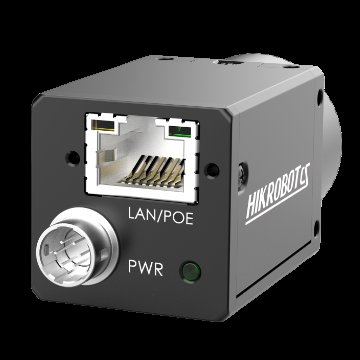

Hikrobot MV-CS050-90GM

CS Area Scan Camera

Order code
MV-CS050-90GM
Order number
306302643
Resolution
2448 × 2048
Frame rate
24.2 fps @ 2448 × 2048 Mono 8
Pixel size
3.4 μm × 3.4 μm
Sensor
GMAX3405

Hikrobot MV-CS050-90GM is an industrial machine-vision camera for inspection, measurement and positioning in automated production, supplied and supported by ZTEC as your Hikrobot partner in the Nordics and Baltics.

Key features

✓Adopts brand new design to reduce power consumption.
✓Supports auto or manual adjustment for gain, exposure control, white balance, contrast ratio, Gamma correction, etc.
✓Compact design with mounting holes on panels for flexible mounting from 4 sides.
✓Adopts GigE interface and max. transmission distance of 100 meters without relay.
✓Compatible with GigE Vision V2.0 Protocol, GenlCam Standard, and third-party software based on the protocol and standard.

Applications & Industries

What you can solve with this product:

Typical industries: SemiconductorFood & beveragePackaging
Presence and completeness inspection
Presence and completeness inspection
Measurement and positioning
Measurement and positioning
Surface and print/label inspection
Surface and print/label inspection
Robot guidance and pick-and-place
Robot guidance and pick-and-place

Specifications

Camera
Sensor typeCMOS, global shutter
Sensor modelGMAX3405
Pixel size3.4 μm × 3.4 μm
Sensor size2/3"
Resolution2448 × 2048
Max. frame rate24.2 fps @ 2448 × 2048 Mono 8
Dynamic range66 dB
SNR39.4 dB
Gain0 dB to 24 dB
Exposure timeUltraShort exposure mode: 2 μs to 4 μs Standard exposure mode: 5 μs to 10 sec
Exposure modeOff/Once/Continuous exposure mode
Mono/colorMono
Pixel formatMono 8/10/10Packed/12/12Packed
BinningSupports 1 × 1, 2 × 2, 4 × 4
DecimationSupports 1 × 1, 2 × 2, 4 × 4
Reverse imageSupports horizontal and vertical reverse image output
Electrical features
Data interfaceGigabit Ethernet (1000 Mbit/s), compatible with Fast Ethernet (100 Mbit/s)
Digital I/O6-pin P7 connector provides power and I/O, including opto-isolated input × 1 (Line 0), opto-isolated output × 1 (Line 1), bi-directional non-isolated I/O × 1 (Line 2).
Power supply9 VDC to 24 VDC, supports PoE
Power consumptionTyp. 2.2 W @ 12 VDC
Mechanical
Lens mountC-mount
Dimension29 mm × 29 mm × 42 mm (1.1" × 1.1" × 1.7")
WeightApprox. 100 g (0.2 lb.)
Ingress protectionIP40 (under proper lens installation and wiring)
TemperatureWorking temperature: –30 °C to 60 °C (–22 °F to 140 °F) Storage temperature: –30 °C to 80 °C (–22 °F to 176 °F)
Humidity20% RH to 95% RH (no condensation)
General
Client softwareMVS or third-party software meeting with GigE Vision Protocol
Operating system32/64-bit Windows 7/10, 64-bit Windows 11, and 32/64-bit Linux
CompatibilityGigE Vision V2.0, GenICam
CertificationCE, RoHS, KC
Technical support
We help with selection, integration and operation
Official Hikrobot partner
Genuine, CE-marked products with full warranty
Full range & fast quotes
We source the entire Hikrobot range, incl. special items
