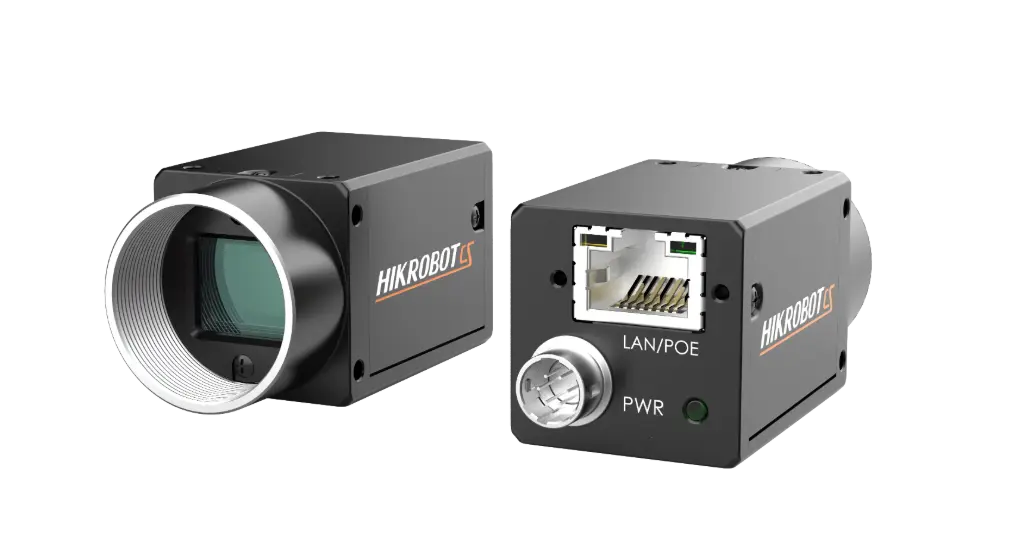

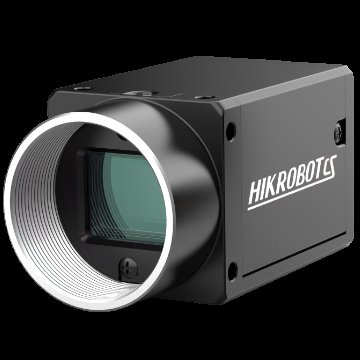

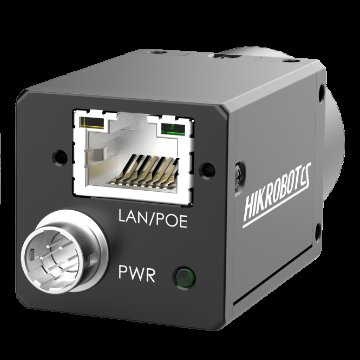

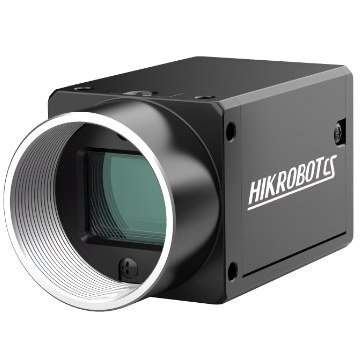

Hikrobot MV-CS016-11GM

CS Area Scan Camera

Order code
MV-CS016-11GM
Order number
306302696
Resolution
1440 × 1080
Frame rate
78.2 fps @ 1440 × 1080 Mono 8
Pixel size
3.45 μm × 3.45 μm
Sensor
Sony® IMX273

Hikrobot MV-CS016-11GM is an industrial machine-vision camera for inspection, measurement and positioning in automated production, supplied and supported by ZTEC as your Hikrobot partner in the Nordics and Baltics.

Key features

✓Adopts brand new design to reduce power consumption.
✓Supports auto or manual adjustment for gain, exposure time, LUT, Gamma correction, white balance, etc.
✓Adopts GigE interface and max. transmission distance of 100 meters without delay.
✓Compact design with mounting holes on panels for flexible mounting from 4 sides.
✓Compatible with GigE Vision V2.0 Protocol, GenlCam Standard, and third-party software based on the protocol and standard.

Applications & Industries

What you can solve with this product:

Typical industries: SemiconductorFood & beveragePharmaceuticalPackaging
Presence and completeness inspection
Presence and completeness inspection
Measurement and positioning
Measurement and positioning
Surface and print/label inspection
Surface and print/label inspection
Robot guidance and pick-and-place
Robot guidance and pick-and-place

Specifications

Performance
Sensor typeCMOS, global shutter
Sensor modelSony® IMX273
Pixel size3.45 μm × 3.45 μm
Sensor size1/2.9"
Resolution1440 × 1080
Max. frame rate78.2 fps @ 1440 × 1080 Mono 8
Dynamic range74 dB
SNR41 dB
Gain0 dB to 24 dB
Exposure timeUltraShort exposure mode: 1 μs to 14 μs Standard exposure mode: 15 μs to 10 sec
Exposure modeOff/Once/Continuous exposure mode
MonoMono
Pixel formatMono 8/10/10Packed/12/12Packed
BinningSupports 1 × 1, 2 × 2
DecimationSupports 1 × 1, 2 × 2
Reverse imageSupports horizontal and vertical reverse image output
Electrical feature
Data interfaceGigabit Ethernet (1000 Mbit/s), compatible with Fast Ethernet (100 Mbit/s)
Digital I/O6-pin P7 connector provides power and I/O, including opto-isolated input × 1 (Line 0), opto-isolated output × 1 (Line 1), bi-directional non-isolated I/O × 1 (Line 2).
Power supply9 VDC to 24 VDC, supports PoE
Power consumptionTyp. 2.3 W @ 12 VDC
Mechanical
Dimension29 mm × 29 mm × 42 mm (1.1" × 1.1" × 1.2")
WeightApprox. 100 g (0.22 lb.)
Ingress protectionIP40 (under proper lens installation and wiring)
TemperatureWorking temperature: –30 °C to 60 °C (–22 °F to 140 °F) Storage temperature: –30 °C to 80 °C (–22 °F to 176 °F)
Humidity20% RH to 95% RH (no condensation)
General
Client softwareMVS or third-party software meeting with GigE Vision Protocol
Operating system32/64-bit Windows 7/10, 64-bit Windows 11, 32/64-bit Linux
CompatibilityGigE Vision V2.0, GenlCam
CertificationCE, RoHS, KC
Additional specifications
Lens mountC-mount
