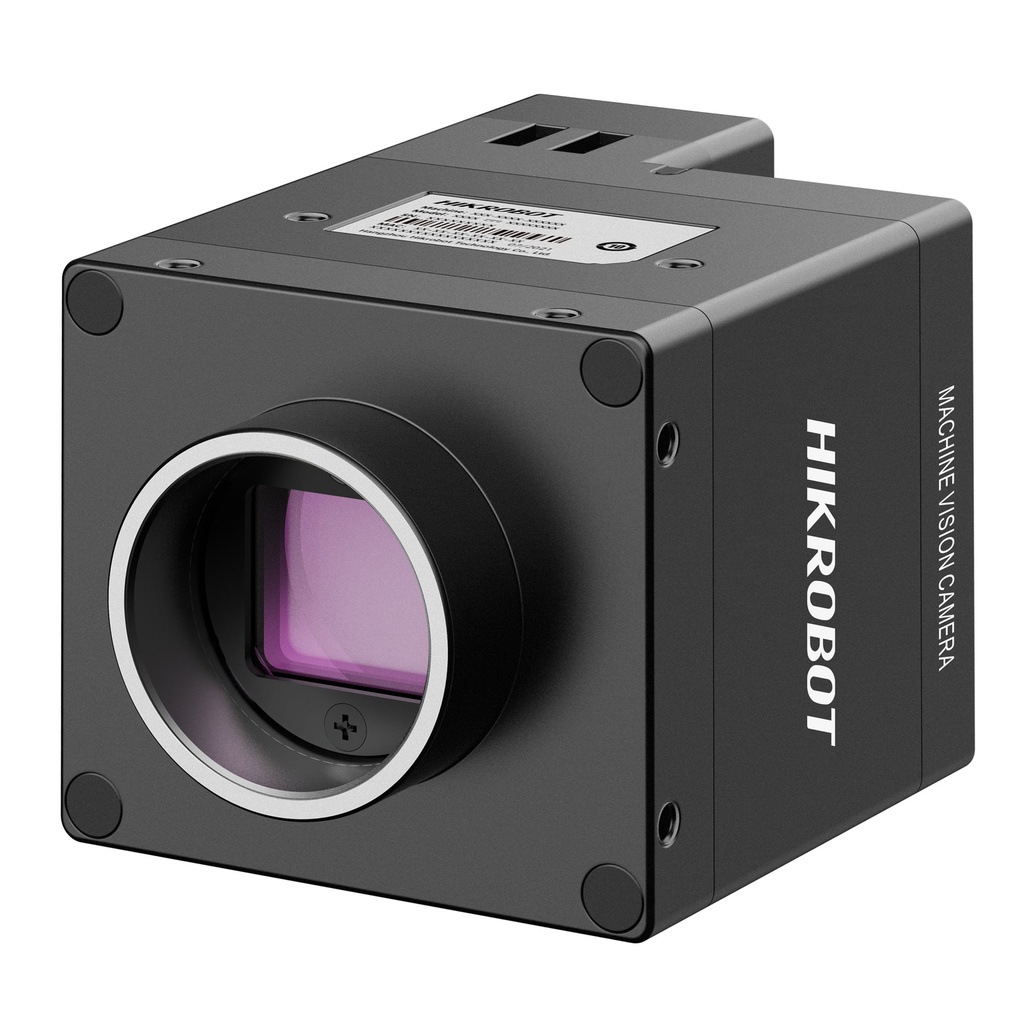

Hikrobot MV-CH120-90TM-C-NF

Hikrobot MV-CH120-90TM-C-NF — MV-CH120-90TM/TC camera adopts Gpixel GMAX3412 sensor to  Mono camera: provide high-quality image. It uses 10 GigE interface to transmit non- MV-CH120-90TM-C-NF compressed image in real time, and its max. frame rate can reach 94  Color camera: fps in full resolution. MV-CH120-90TC-C-NF. Genuine product, supplied by ZTEC.

0.00 € 0.00 €
kr 0.00
(Tax excluded)
Contact Us
Documents
MV-CH120-90TM-C-NF - Datasheet.pdf MV-CH120-90TM-C-NF - Drawing.pdf MV-CH120-90TM-C-NF - User Manual.pdf
OFFICIAL HIKROBOT PARTNERCE · EU compliant

Hikrobot MV-CH120-90TM-C-NF

CH Area Scan Camera

Order code
MV-CH120-90TM-C-NF
Order number
306302724
Resolution
4096 × 3072
Frame rate
94 fps @ 4096 × 3072 Mono 8
Pixel size
3.4 μm × 3.4 μm
Sensor
Gpixel GMAX3412

Hikrobot MV-CH120-90TM-C-NF is an industrial machine-vision camera for inspection, measurement and positioning in automated production, supplied and supported by ZTEC as your Hikrobot partner in the Nordics and Baltics.

Key features

✓Resolution of 4096 × 3072, pixel size of 3.4 μm × 3.4 μm.
✓Compatible with C-mount lens.
✓Adopts 10 GigE interface providing maximum transmission distance of 100 meters.
✓Provides mounting holes on panels for flexible installation.
✓Compatible with GigE Vision Protocol V2.0, GenlCam Standard, and third-party software based on protocols.

Applications & Industries

What you can solve with this product:

Typical industries: Battery
Presence and completeness inspection
Presence and completeness inspection
Measurement and positioning
Measurement and positioning
Surface and print/label inspection
Surface and print/label inspection
Robot guidance and pick-and-place
Robot guidance and pick-and-place

Specifications

Performance
Sensor typeCMOS, global shutter
Sensor modelGpixel GMAX3412
Pixel size3.4 μm × 3.4 μm
Sensor size1.1"
Resolution4096 × 3072
Max. frame rate94 fps @ 4096 × 3072 Mono 8
Dynamic range60.1 dB
SNR39 dB
Gain0 dB to 6.1 dB
Exposure time6 μs to 10 sec
Exposure modeOff/Once/Continuous exposure mode
Mono/colorMono
Pixel formatMono 8/10/10Packed/12/12Packed
BinningSupports 1 × 1, 1 × 2, 1 × 4, 2 × 1, 2 × 2, 2 × 4, 4 × 1, 4 × 2, 4 × 4
DecimationSupports 1 × 1, 1 × 2, 1 × 4, 2 × 1, 2 × 2, 2 × 4, 4 × 1, 4 × 2, 4 × 4
Reverse imageSupports horizontal and vertical reverse image output
Electrical feature
Data interface10 Gigabit Ethernet (10000 Mbit/s), compatible with Gigabit Ethernet (1000 Mbit/s)
Digital I/O6-pin P7 connector provides power and I/O, including opto-isolated input × 1 (Line 0), optoisolated output × 1 (Line 1), and bi-directional non-isolated I/O × 1 (Line 2)
Power supply9 VDC to 24 VDC
Power consumption10.2 W @ 12 VDC
Mechanical
Dimension50 mm × 45 mm × 68.6 mm (2.0" × 1.8" × 2.7")
WeightApprox. 212 g (0.5 lb.)
Ingress protectionIP40 (under proper lens installation and wiring)
TemperatureWorking temperature: 0 °C to 50 °C (32 °F to 122 °F) Storage temperature: –30 °C to 80 °C (–22 °F to 176 °F)
Humidity20% RH to 95% RH (no condensation)
General
Client softwareMVS or third-party software meeting with GigE Vision Protocol
Operating system32/64-bit Windows 7/10, 64-bit Windows 11, and 32/64-bit Linux
CompatibilityGigE Vision V2.0, GenlCam
CertificationCE, RoHS, KC
Additional specifications
Lens mountC-mount
