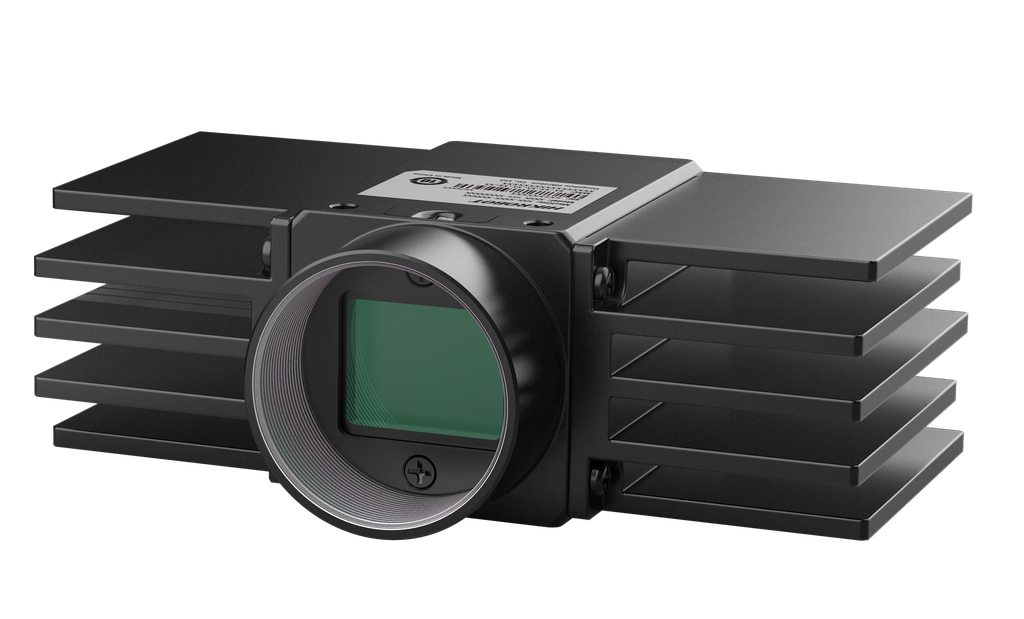

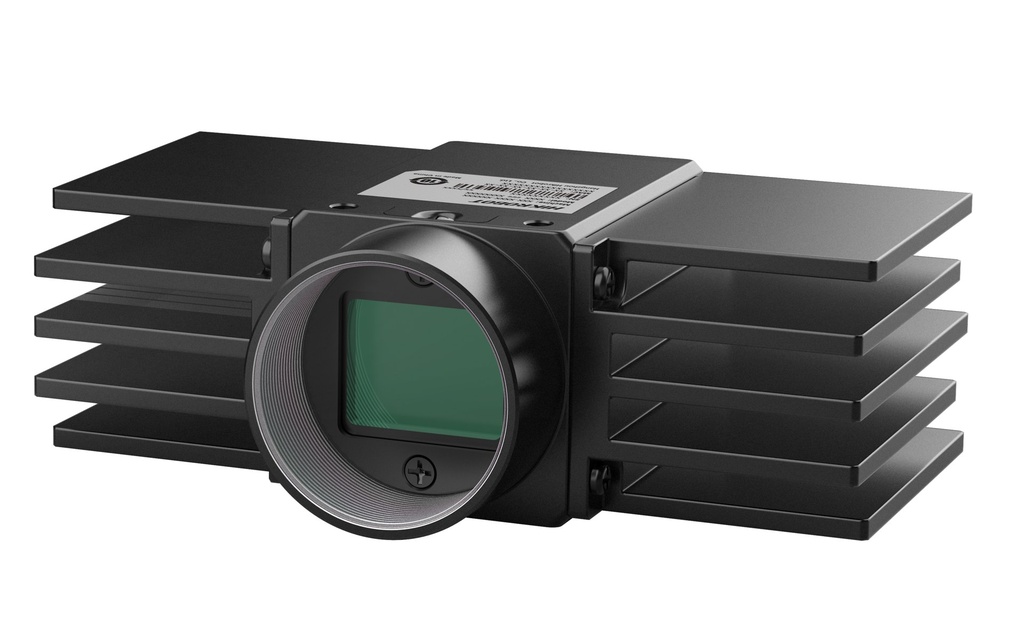

Hikrobot MV-CH120-90Y1M-NH

Hikrobot MV-CH120-90Y1M-NH — MV-CH120-90Y1M/C camera adopts Gpixel GMAX3412  Mono camera without heat sink: sensor to provide high quality image. It uses 1-link CXP- MV-CH120-90Y1M-NN 12 interface to transmit non-compressed images in real  Color camera without heat sink: time, and its max. frame rate can reach 93.9 fps in full MV-CH120-90Y1C-NN resolution.  Mono camera with heat sink:. Genuine product, supplied by ZTEC.

0.00 € 0.00 €
kr 0.00
(Tax excluded)
Contact Us
Documents
MV-CH120-90Y1M-NH - CAD (RAR).rar MV-CH120-90Y1M-NH - Datasheet.pdf MV-CH120-90Y1M-NH - User Manual.pdf
OFFICIAL HIKROBOT PARTNERCE · EU compliant

Hikrobot MV-CH120-90Y1M-NH

CH Area Scan Camera

Order code
MV-CH120-90Y1M-NH
Order number
306302747
Resolution
4096 × 3072
Frame rate
93.9 fps @ 4096 × 3072 Mono 8
Interface
CoaXPress with Micro-BNC interface
Pixel size
3.4 μm × 3.4 μm

Hikrobot MV-CH120-90Y1M-NH is an industrial machine-vision camera for inspection, measurement and positioning in automated production, supplied and supported by ZTEC as your Hikrobot partner in the Nordics and Baltics.

Key features

✓Resolution of 4096 × 3072, pixel size of 3.4 µm × 3.4 µm.
✓Adopts global shutter CMOS sensor to provide high dynamic range, SNR, and high-quality image.
✓Adopts CXP-12 interface to transmit data.
✓Supports Off, Once, and Continuous exposure modes.
✓Compatible with CoaXPress Protocol, GenlCam Standard, and third-party software based on the protocol and standard.

Applications & Industries

What you can solve with this product:

Typical industries: Semiconductor
Presence and completeness inspection
Presence and completeness inspection
Measurement and positioning
Measurement and positioning
Surface and print/label inspection
Surface and print/label inspection
Robot guidance and pick-and-place
Robot guidance and pick-and-place

Specifications

Performance
Sensor typeCMOS, global shutter
Sensor modelGpixel GMAX3412
Pixel size3.4 μm × 3.4 μm
Sensor size1.1"
Resolution4096 × 3072
Max. frame rate93.9 fps @ 4096 × 3072 Mono 8
Dynamic range59.7 dB
SNR39 dB
Gain0 dB to 6.1 dB
Exposure time6 μs to 10 sec
Exposure modeOff/Once/Continuous exposure mode
Mono/colorMono
Pixel formatMono 8/10/12
BinningSupports 1 × 1, 1 × 2, 1 × 4, 2 ×1, 2 × 2, 2 × 4, 4 × 1, 4 × 2, 4 × 4
DecimationSupports 1 × 1, 1 × 2, 1 × 4, 2 ×1, 2 × 2, 2 × 4, 4 × 1, 4 × 2, 4 × 4
Reverse imageSupports horizontal and vertical reverse image output
Electrical feature
Data interfaceCoaXPress with Micro-BNC interface

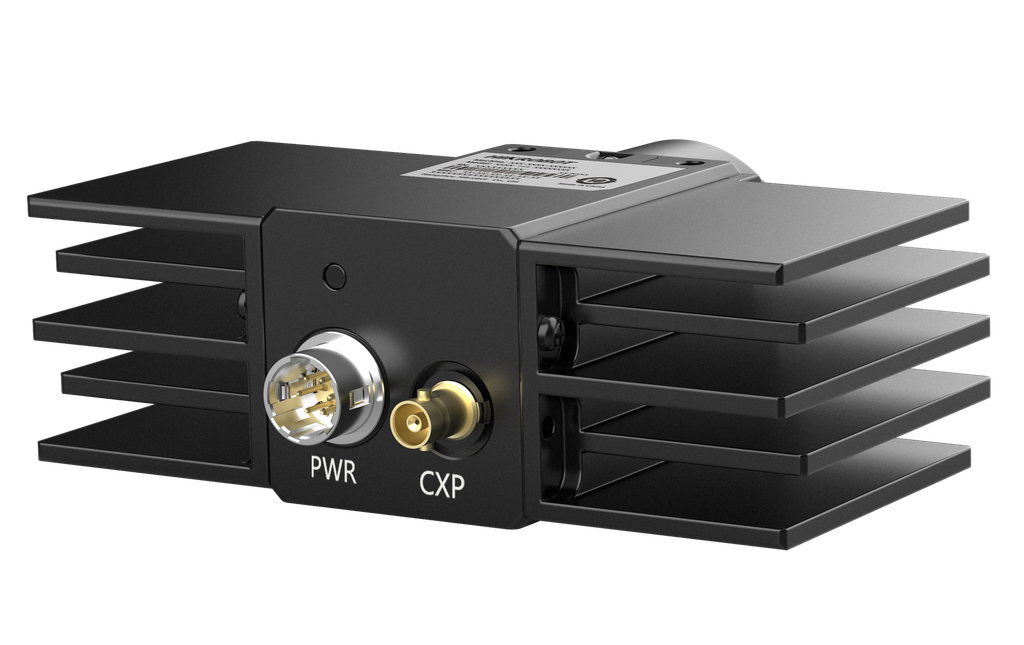

Digital I/O6-pin P7 connector provides power and I/O, including opto-isolated input × 1 (Line 0), opto-isolated output × 1 (Line 1), bi-directional non-isolated I/O × 1 (Line 2)
Power supply12 VDC to 24 VDC, supports PoCXP
Power consumptionTyp. 5 W @ 12 VDC
Mechanical
DimensionDevice with heat sink: 29 mm × 85 mm × 42 mm (1.1" × 3.3" × 1.7") Device without heat sink: 29 mm × 29 mm × 42 mm (1.1" × 1.1" × 1.7")
WeightDevice with heat sink: Approx. 170 g (0.4 lb.) Device without heat sink: Approx. 90 g (0.2 lb.)
Ingress protectionIP40 (under proper lens installation and wiring)
TemperatureWorking temperature for device with heat sink: 0 °C to 50 °C (32 °F to 122 °F) Working temperature for device without heat sink: 0 °C to 40 °C (32 °F to 104 °F) Storage temperature: –30 °C to 80 °C (–22 °F to 176 °F)
Humidity20% RH to 95% RH (no condensation)
General
Client softwareMVS or third-party software meeting with CoaXPress Protocol
Operating system32/64-bit Windows 7/10, 64-bit Window 11, and 32/64-bit Linux
CompatibilityCoaXPress, GenlCam
CertificationCE, RoHS, KC
Additional specifications
Lens mountC-mount
