Hikrobot MV-CL084-91Y2M

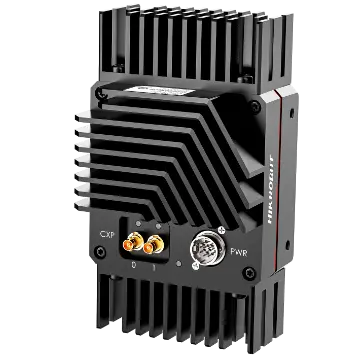

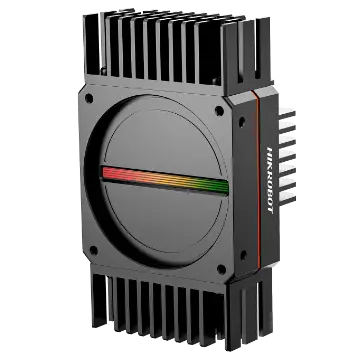

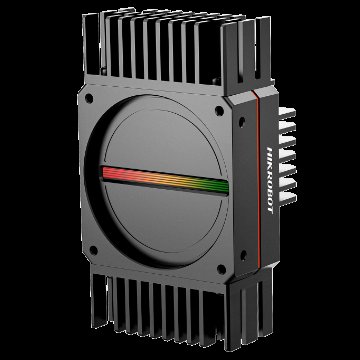

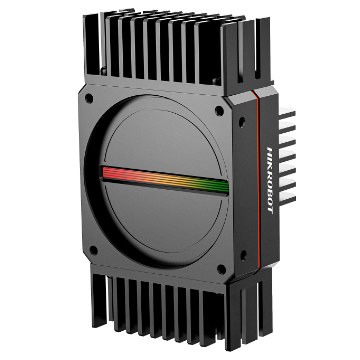

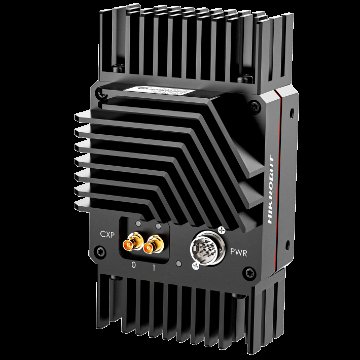

CL Series line scan camera with M72 × 0.75, flange back length 12 mm, applicable to F-mount lens via adapter ring, 8192 × 4 Resolution, Mono, and with CoaXPress with two Micro-BNC interfaces. CMOS sensor type.
The MV-CL084-91Y2M in the CL Series has a pixel size of 7µm × 7 µm.
The max line rate in 1-light mode: 200 kHz (1-Line), 100 kHz (2-TDI), 50 kHz (4-TDI) 2-light mode: 52 kHz (1-Line), 26 kHz (2-TDI) 3-light mode: 34.6 kHz (1-Line) 4-light mode: 26 kHz (1-Line). The model is CE-certified.
The MV-CL084-91Y2M in the CL Series has a pixel size of 7µm × 7 µm.
The max line rate in 1-light mode: 200 kHz (1-Line), 100 kHz (2-TDI), 50 kHz (4-TDI) 2-light mode: 52 kHz (1-Line), 26 kHz (2-TDI) 3-light mode: 34.6 kHz (1-Line) 4-light mode: 26 kHz (1-Line). The model is CE-certified.
