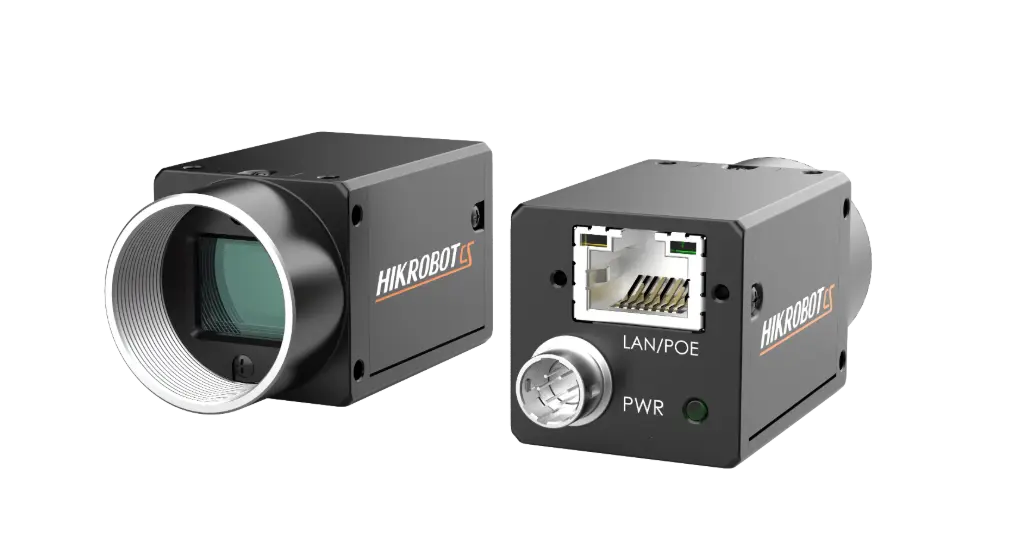

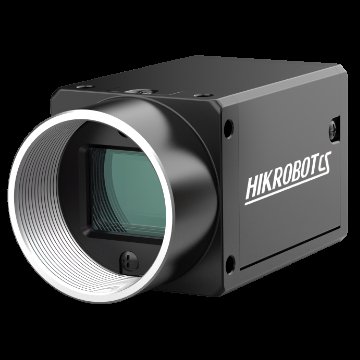

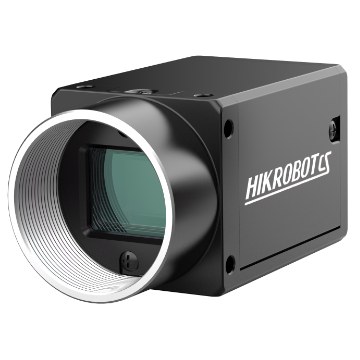

Hikrobot MV-CS020-60GC

Hikrobot MV-CS020-60GC — MV-CS020-60GM/GC camera adopts CMOS global sensor to provide  Mono camera: MV-CS020-60GM high-quality images and transmit images in real time, and its max.  Color camera: MV-CS020-60GC frame rate can reach 60.3 fps in full resolution. Applicable. Genuine product, supplied by ZTEC.

0.00 € 0.00 €
kr 0.00
(Tax excluded)
Contact Us
Documents
MV-CS020-60GC - CAD (RAR).rar MV-CS020-60GC - Datasheet.pdf MV-CS020-60GC - User Manual.pdf
OFFICIAL HIKROBOT PARTNERCE · EU compliant

Hikrobot MV-CS020-60GC

CS Area Scan Camera

Order code
MV-CS020-60GC
Order number
306302770
Resolution
1624 × 1240
Pixel size
3.45 μm × 3.45 μm
Sensor
Stacked BSI

Hikrobot MV-CS020-60GC is an industrial machine-vision camera for inspection, measurement and positioning in automated production, supplied and supported by ZTEC as your Hikrobot partner in the Nordics and Baltics.

Key features

✓Adopts brand new design to reduce power consumption.
✓Supports auto or manual adjustment for gain, exposure control, white balance, LUT, Gamma correction, etc.
✓Supports CCM to provide high-quality images.
✓Adopts GigE interface and max. transmission distance of 100 meters without relay.
✓Compact design with mounting holes on panels for flexible mounting from 4 sides.
✓Compatible with GigE Vision V2.0 Protocol, GenlCam Standard, and third-party software based on the protocol and standard.

Applications & Industries

What you can solve with this product:

Typical industries: SemiconductorFood & beveragePackaging
Presence and completeness inspection
Presence and completeness inspection
Measurement and positioning
Measurement and positioning
Surface and print/label inspection
Surface and print/label inspection
Robot guidance and pick-and-place
Robot guidance and pick-and-place

Specifications

Camera
Sensor typeCMOS, global shutter
Sensor modelStacked BSI
Pixel size3.45 μm × 3.45 μm
Sensor size1/2.53"
Resolution1624 × 1240
Max. frame rate60.3 fps @ 1624 × 1240 Mono 8,60.3 fps @ 1624 × 1240 Bayer GB 8
Dynamic range66.6 dB
SNR44.1 dB
Gain0 dB to 24 dB
Exposure time23 μs to 10 sec
Exposure modeOff/Once/Continuous exposure mode
Mono/colorMono,Color
Pixel formatMono 8/10/10Packed/12/12Packed,Mono 8/10/12, Bayer GB 8/10/10Packed/12/12Packed, YUV422Packed, YUV422_YUYV_Packed, RGB 8, BGR 8
BinningSupports 1 × 1, 2 × 2, 4 × 4
DecimationSupports 1 × 1, 2 × 2, 4 × 4
Reverse imageSupports horizontal and vertical reverse image output
Electrical features
Data interfaceGigabit Ethernet (1000 Mbit/s), compatible with Fast Ethernet (100 Mbit/s)

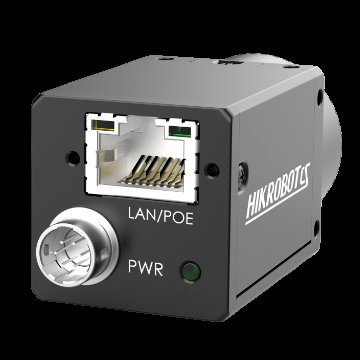

Digital I/O6-pin P7 connector provides power and I/O, including opto-isolated input × 1 (Line 0), opto-isolated output × 1 (Line 1), bi-directional non-isolated I/O × 1 (Line 2).
Power supply9 VDC to 24 VDC, supports PoE
Power consumptionTyp. 1.8 W @ 12 VDC,Typ. 1.9 W @ 12 VDC
Mechanical
Lens mountC-mount
Dimension29 mm × 29 mm × 42 mm (1.1" × 1.1" × 1.7")
WeightApprox. 100 g (0.2 lb.)
Ingress protectionIP40 (under proper lens installation and wiring)
TemperatureWorking temperature: –30 °C to 60 °C (–22 °F to 140 °F) Storage temperature: –30 °C to 80 °C (–22 °F to 176 °F)
Humidity20% RH to 95% RH (no condensation)
General
Client softwareMVS or third-party software meeting with GigE Vision Protocol
Operating system32/64-bit Windows 7/10, 64-bit Windows 11, 32/64-bit Linux
CompatibilityGigE Vision V2.0, GenICam
CertificationCE, RoHS, KC
