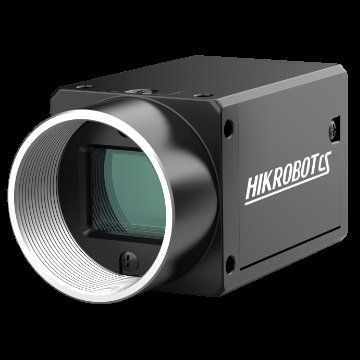

Hikrobot MV-CS200-10GM V5.0

Hikrobot MV-CS200-10GM — With GigE interface, MV-CS200-10GM/GC camera adopts Sony®  Mono camera: MV-CS200-10GM IMX183 sensor to provide high-quality images and transmit images in  Color camera: MV-CS200-10GC real time, and its max. frame rate can reach 5.9 fps in full resolution. Applicable. Genuine product, supplied by ZTEC.

0.00 € 0.00 €
kr 0.00
(Tax excluded)
Contact Us
Documents
MV-CS200-10GM V5 - CAD (RAR).rar MV-CS200-10GM V5 - Datasheet.pdf MV-CS200-10GM V5 - User Manual.pdf
OFFICIAL HIKROBOT PARTNERCE · EU compliant

Hikrobot MV-CS200-10GM

CS Area Scan Camera

Order code
MV-CS200-10GM
Order number
306302825
Resolution
5472 × 3648
Frame rate
5.9 fps @ 5472 × 3648
Interface
Gigabit Ethernet, compatible with Fast Ethernet
Pixel size
2.4 μm × 2.4 μm

Hikrobot MV-CS200-10GM is an industrial machine-vision camera for inspection, measurement and positioning in automated production, supplied and supported by ZTEC as your Hikrobot partner in the Nordics and Baltics.

Key features

✓Supports auto or manual adjustment of gain, exposure time, white balance, LUT, Gamma correction, etc.
✓Supports multiple ISP functions like CCM to provide high-quality images.
✓Compact design with mounting holes on panels for flexible mounting from 4 sides.
✓Adopts GigE interface and max. transmission distance of 100 meters without relay.
✓Compatible with GigE Vision V2.0 Protocol, GenlCam Standard, and third-party software based on the protocol and standard.

Applications & Industries

What you can solve with this product:

Typical industries: Consumer electronicsSemiconductor
Presence and completeness inspection
Presence and completeness inspection
Measurement and positioning
Measurement and positioning
Surface and print/label inspection
Surface and print/label inspection
Robot guidance and pick-and-place
Robot guidance and pick-and-place

Specifications

Camera
Sensor typeCMOS, rolling shutter
Sensor modelSony® IMX183
Pixel size2.4 μm × 2.4 μm
Sensor size1"
Resolution5472 × 3648
Max. frame rate5.9 fps @ 5472 × 3648
Dynamic range65.7 dB
SNR41.5 dB
Gain0 dB to 24 dB
Exposure time46 μs to 2.5 sec
Exposure modeOff/Once/Continuous exposure auto, supports Timed and Trigger Width exposure mode, and Rolling and Global Reset sensor shutter mode
MonoMono
Pixel formatMono 8/10/10p/12/12p
BinningSupports 1 × 1, 2 × 2, 4 × 4
DecimationSupports 1 × 1, 2 × 2
Reverse imageSupports horizontal and vertical reverse image output
Electrical features
Data interfaceGigabit Ethernet, compatible with Fast Ethernet

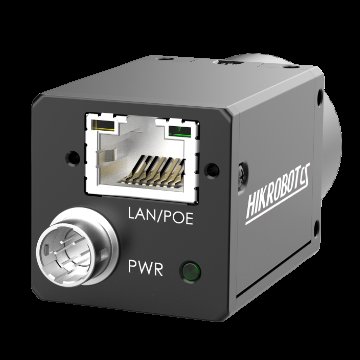

Digital I/O6-pin Hirose connector provides power and I/O, including opto-isolated input × 1 (Line 0), opto-isolated output × 1 (Line 1), bi-directional non-isolated I/O × 1 (Line 2).
Power supply9 VDC to 24 VDC, supports PoE
Power consumptionTyp. 2.4 W@12 VDC
Mechanical
Lens mountC-mount
Dimension29 mm × 29 mm × 42 mm (1.1" × 1.1" × 1.2")
WeightApprox. 100 g (0.22 lb.)
Ingress protectionIP40 (under proper lens installation and wiring)
TemperatureWorking temperature: –30 °C to 60 °C (–22 °F to 140 °F) Storage temperature: –30 °C to 70 °C (–22 °F to 158 °F)
Humidity20% RH to 95% RH (no condensation)
General
Client softwareMVS or third-party software meeting with GigE Vision Protocol
Operating system32/64-bit Windows 7/10, 32/64-bit Linux
CompatibilityGigE Vision V2.0, GenICam
CertificationCE, RoHS, KC
Additional specifications
Quantum efficiency74.1%
Dark noise6.6 e-@10-bit
Signal-to-noise ratio41.4 dB
Saturation capacity13.8 ke-
