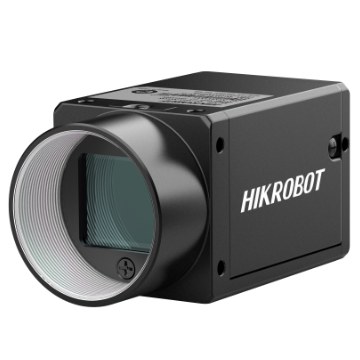

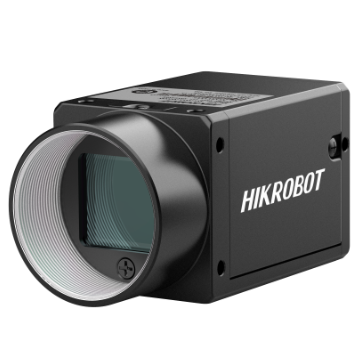

Hikrobot MV-CH050-90Y1M-NN

Hikrobot MV-CH050-90Y1M-NN — MV-CH050-90Y1M/C camera adopts Gpixel GMAX3405  Mono camera: MV-CH050-90Y1M-NN sensor to provide high quality image. It uses 1-link CXP-  Color camera: MV-CH050-90Y1C-NN 12 interface to transmit non-compressed images in real Applicable. Genuine product, supplied by ZTEC.

0.00 € 0.00 €
kr 0.00
(Tax excluded)
Contact Us
Documents
MV-CH050-90Y1M-NN - CAD (RAR).rar MV-CH050-90Y1M-NN - Datasheet.pdf MV-CH050-90Y1M-NN - User Manual.pdf
OFFICIAL HIKROBOT PARTNERCE · EU compliant

Hikrobot MV-CH050-90Y1M-NN

CH Area Scan Camera

Order code
MV-CH050-90Y1M-NN
Order number
306302864
Resolution
2448 × 2048
Frame rate
164 fps @ 2448 × 2048 Mono 8
Interface
CoaXPress with Micro-BNC interface
Pixel size
3.4 μm × 3.4 μm

Hikrobot MV-CH050-90Y1M-NN is an industrial machine-vision camera for inspection, measurement and positioning in automated production, supplied and supported by ZTEC as your Hikrobot partner in the Nordics and Baltics.

Key features

✓Resolution of 2448 × 2048, pixel size of 3.4 µm × 3.4 µm.
✓Adopts global shutter CMOS sensor to provide high dynamic range, SNR, and high-quality image.
✓Adopts CXP-12 interface to transmit data.
✓Supports Off, Once, and Continuous exposure modes.
✓Compatible with CoaXPress Protocol, GenlCam Standard, and third-party software based on the protocol and standard.

Applications & Industries

What you can solve with this product:

Typical industries: Semiconductor
Presence and completeness inspection
Presence and completeness inspection
Measurement and positioning
Measurement and positioning
Surface and print/label inspection
Surface and print/label inspection
Robot guidance and pick-and-place
Robot guidance and pick-and-place

Specifications

Performance
Sensor typeCMOS, global shutter
Sensor modelGpixel GMAX3405
Pixel size3.4 μm × 3.4 μm
Sensor size2/3"
Resolution2448 × 2048
Max. frame rate164 fps @ 2448 × 2048 Mono 8
Dynamic range59.7 dB
SNR39.3 dB
Gain0 dB to 6.1 dB
Exposure time2 μs to 10 sec
Exposure modeOff/Once/Continuous exposure mode
Mono/colorMono
Pixel formatMono 8/10/12
BinningSupports 1 × 1, 1 × 2, 1 × 4, 2 ×1, 2 × 2, 2 × 4, 4 × 1, 4 × 2, 4 × 4
DecimationSupports 1 × 1, 1 × 2, 1 × 4, 2 ×1, 2 × 2, 2 × 4, 4 × 1, 4 × 2, 4 × 4
Reverse imageSupports horizontal and vertical reverse image output
Electrical feature

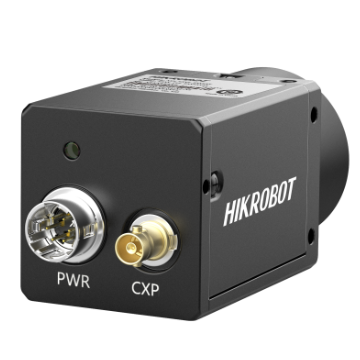

Data interfaceCoaXPress with Micro-BNC interface
Digital I/O6-pin P7 connector provides power and I/O, including opto-isolated input × 1 (Line 0), opto-isolated output × 1 (Line 1), bi-directional non-isolated I/O × 1 (Line 2)
Power supply9 VDC to 24 VDC, supports PoCXP
Power consumptionTyp. 3.3 W @ 12 VDC
Mechanical
Dimension29 mm × 29 mm × 42 mm (1.1" × 1.1" × 1.7")
WeightApprox. 90 g (0.2 lb.)
Ingress protectionIP40 (under proper lens installation and wiring)
TemperatureWorking temperature: –10 °C to 50 °C (14 °F to 122 °F) Storage temperature: –30 °C to 80 °C (–22 °F to 176 °F)
Humidity20% RH to 95% RH (no condensation)
General
Client softwareMVS or third-party software meeting with CoaXPress Protocol
Operating system32/64-bit Windows 7/10, 64-bit Windows 11, and 32/64-bit Linux
CompatibilityCoaXPress, GenlCam
CertificationCE, RoHS, KC
Additional specifications
