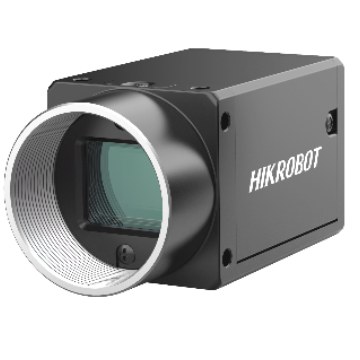

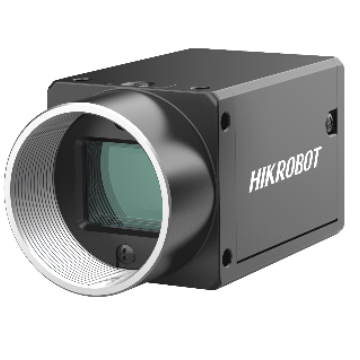

Hikrobot MV-CH050-60NM

Hikrobot MV-CH050-60NM — With 2.5 GigE interface, MV-CH050-60NM/NC camera adopts  Mono camera: MV-CH050- CMOS global sensor to provide high-quality images and transmit 60NM images in real time, and its max. frame rate can reach 60 fps in  Color camera: MV-CH050- full resolution. 60NC. Genuine product, supplied by ZTEC.

0.00 € 0.00 €
kr 0.00
(Tax excluded)
Contact Us
Documents
MV-CH050-60NM - CAD (RAR).rar MV-CH050-60NM - Datasheet.pdf MV-CH050-60NM - User Manual.pdf
OFFICIAL HIKROBOT PARTNERCE · EU compliant

Hikrobot MV-CH050-60NM

CH Area Scan Camera

Order code
MV-CH050-60NM
Order number
306302987
Resolution
2448 × 2048
Frame rate
60 fps @ 2448 × 2048 Mono 8
Pixel size
3.45 μm × 3.45 μm
Sensor
Stacked BSI

Hikrobot MV-CH050-60NM is an industrial machine-vision camera for inspection, measurement and positioning in automated production, supplied and supported by ZTEC as your Hikrobot partner in the Nordics and Baltics.

Key features

✓Adopts brand new design to reduce power consumption.
✓Supports auto or manual adjustment of gain, exposure time, white balance, LUT, Gamma correction, etc., and supports HDR function.
✓Supports ISP functions like CCM and Super Palette to provide high-quality images.
✓Compact design with mounting holes on panels for flexible mounting from 4 sides.
✓Adopts 2.5 GigE interface and max. transmission distance of 100 meters without relay.
✓Compatible with GigE Vision V2.0 Protocol, GenlCam Standard, and third-party software based on the protocol and standard.

Applications & Industries

What you can solve with this product:

Typical industries: SemiconductorFood & beveragePackaging
Presence and completeness inspection
Presence and completeness inspection
Measurement and positioning
Measurement and positioning
Surface and print/label inspection
Surface and print/label inspection
Robot guidance and pick-and-place
Robot guidance and pick-and-place

Specifications

Performance
Sensor typeCMOS, global shutter
Sensor modelStacked BSI
Pixel size3.45 μm × 3.45 μm
Sensor size2/3"
Resolution2448 × 2048
Max. frame rate60 fps @ 2448 × 2048 Mono 8
Dynamic range69.6 dB
SNR44.1 dB
Gain0 dB to 24 dB
Exposure time5 μs to 10 sec
Exposure modeOff/Once/Continuous exposure mode
MonoMono
Pixel formatMono 8/10/10Packed/12/12Packed
BinningSupports 1 × 1, 2 × 2, 4 × 4
DecimationSupports 1 × 1, 2 × 2, 4 × 4
Reverse imageSupports horizontal and vertical reverse image output
Electrical features
Data interface2.5 Gigabit Ethernet (2500 Mbit/s), compatible with Gigabit Ethernet (1000 Mbit/s)

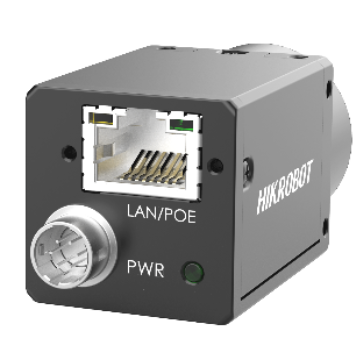

Digital I/O6-pin P7 connector provides power and I/O, including opto-isolated input × 1 (Line 0), opto-isolated output × 1 (Line 1), bi-directional non-isolated I/O × 1 (Line 2).
Power supply9 VDC to 24 VDC, supports PoE
Power consumptionTyp. 3.6 W @ 12 VDC
Mechanical
Lens mountC-mount
Dimension29 mm × 29 mm × 42 mm (1.1" × 1.1" × 1.7")
WeightApprox. 100 g (0.2 lb.)
Ingress protectionIP40 (under proper lens installation and wiring)
TemperatureWorking temperature: –10 °C to 45 °C (–14 °F to 113 °F) Storage temperature: –30 °C to 80 °C (–22 °F to 176 °F)
Humidity20% RH to 95% RH (no condensation)
General
Client softwareMVS or third-party software meeting with GigE Vision Protocol
Operating system32/64-bit Windows 7/10, 64-bit Windows 11, 32/64-bit Linux
CompatibilityGigE Vision V2.0, GenICam
CertificationCE, RoHS, KC
