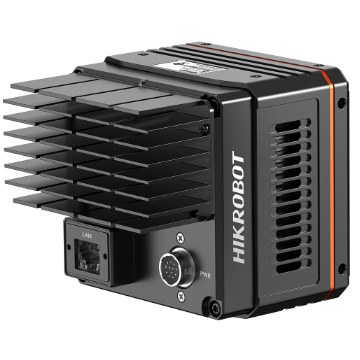

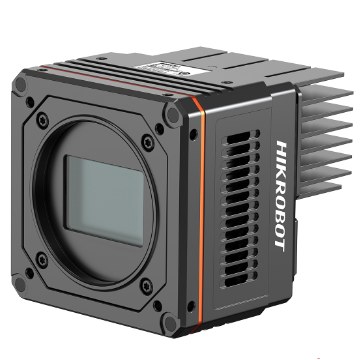

Hikrobot MV-CH800-60TC-M59S-NN

CH

Resolution
10304 × 7712
Frame rate
15 fps @10304 × 7712 Bayer GB 8
Interface
11 Gigabit Ethernet, compatible with Gigabit Ethernet
Pixel size
2.9 µm × 2.9 µm

Hikrobot MV-CH800-60TC-M59S-NN is an industrial machine-vision camera for inspection, measurement and positioning in automated production, supplied and supported by ZTEC as your Hikrobot partner in the Nordics and Baltics.

Applications & Industries

What you can solve with this product:

Presence and completeness inspection
Presence and completeness inspection
Measurement and positioning
Measurement and positioning
Surface and print/label inspection
Surface and print/label inspection
Robot guidance and pick-and-place
Robot guidance and pick-and-place

Specifications

Specifications
Sensor typeCMOS, rolling shutter
Sensor modelStacked BSI
Sensor size30 mm × 22.4 mm
Pixel size2.9 µm × 2.9 µm
Resolution10304 × 7712
Max. frame rate15 fps @10304 × 7712 Bayer GB 8
Mono/colorColor
Data interface11 Gigabit Ethernet, compatible with Gigabit Ethernet
Lens mountM58*0.75, flange focal length 11.48 mm (0.5")
Dimension84 mm × 84 mm × 92.5 mm (3.3" × 3.3" × 3.6")
CertificationKC
