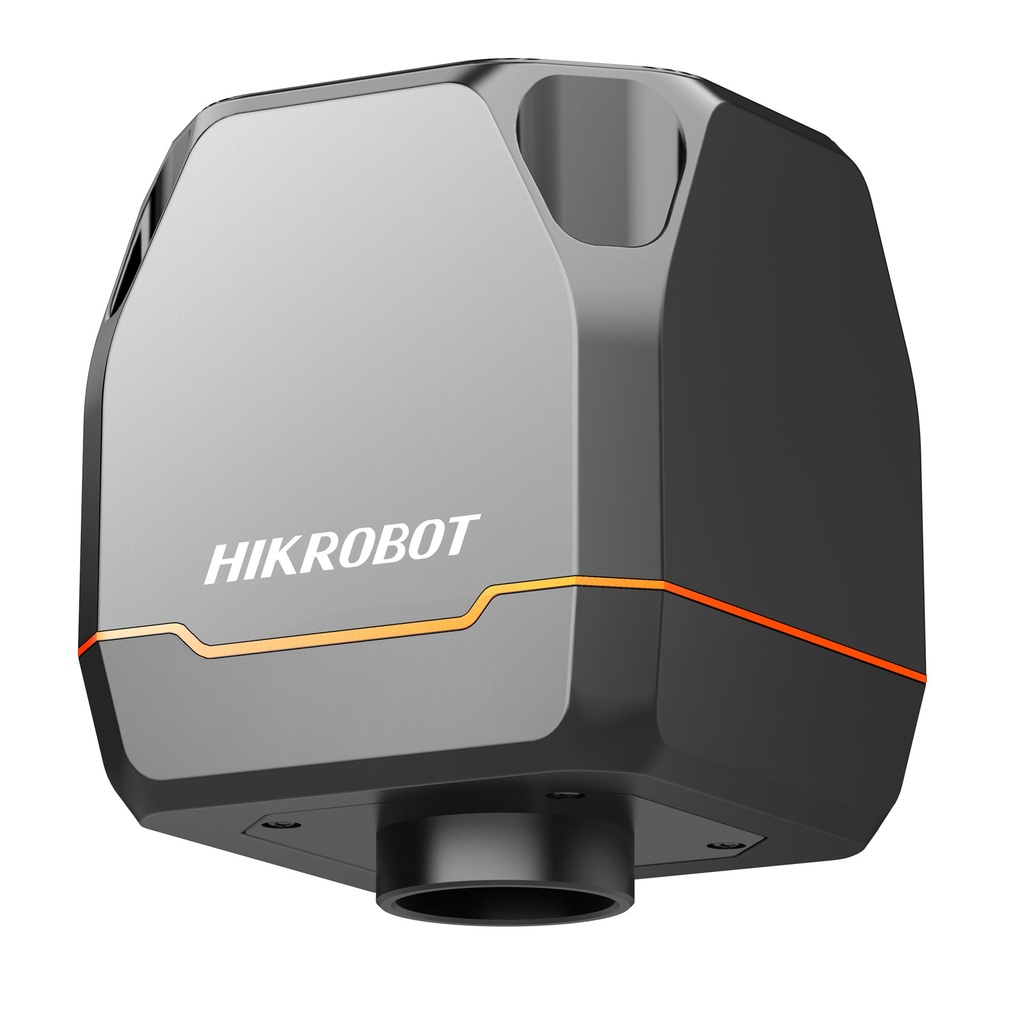

Hikrobot MV-CM3040C-1H

HDMI Microscope Camera

Order code
MV-CM3040C-1H
Order number
306303043
Resolution
2560 × 1440
Frame rate
30 fps
Interface
HDMI
Pixel size
2.9 μm × 2.9 μm

Hikrobot MV-CM3040C-1H is an industrial machine-vision camera for inspection, measurement and positioning in automated production, supplied and supported by ZTEC as your Hikrobot partner in the Nordics and Baltics.

Key features

✓Supports 4 MP high-quality image and 30 fps frame rate.
✓Provides HDMI interface to connect to a monitor directly.
✓Provides USB interface to connect to a mouse or a USB flash disk.
✓Provides USB 3.0 interface to connect to the PC for operation on the client software.
✓Supports image storage and image-related parameter adjustment.
✓Supports measurement functions and report generation.

Applications & Industries

What you can solve with this product:

Typical industries: SemiconductorMedical
Presence and completeness inspection
Presence and completeness inspection
Measurement and positioning
Measurement and positioning
Surface and print/label inspection
Surface and print/label inspection
Robot guidance and pick-and-place
Robot guidance and pick-and-place

Specifications

Performance
Sensor typeCMOS, rolling shutter
Pixel size2.9 μm × 2.9 μm
Sensor size1/1.88"
Resolution2560 × 1440
Max. frame rate30 fps
Gain0 dB to 18 dB
Exposure time300 μs to 100 ms
Mono/colorColor
Exposure modeAuto/manual
Vision toolImage process: White balance, brightness, sharpness, contrast, saturation, digital gain, Gamma correction, digital WDR, noise reduction. Auxiliary functions: Image reverse, cross line, grid line, ruler, scale, image freezing, capture, recording, storage. Measurement: Report export, calibration, point measurement, line measurement, circle measurement, angle measurement, polygon measurement, polyline measurement, curve measurement, line/circle auto measurement.
Electrical feature
Transmission interfaceHDMI
Power supply12 VDC to 24 VDC, independent power supply required
Power consumptionTyp. 3.6 W @ 12 VDC
Mechanical
Dimension75 mm × 75 mm × 86.9 mm (3.0" × 3.0" × 3.4")
WeightApprox. 430 g (0.9 lb.)
Ingress protectionIP30 (under proper lens installation and wiring)
TemperatureWorking temperature: 0 °C to 50 °C (32 °F to 122 °F) Storage temperature: –30 °C to 80 °C (–22 °F to 176 °F)
Humidity20% RH to 95% RH (no condensation)
General
CertificationCE, RoHS
Additional specifications

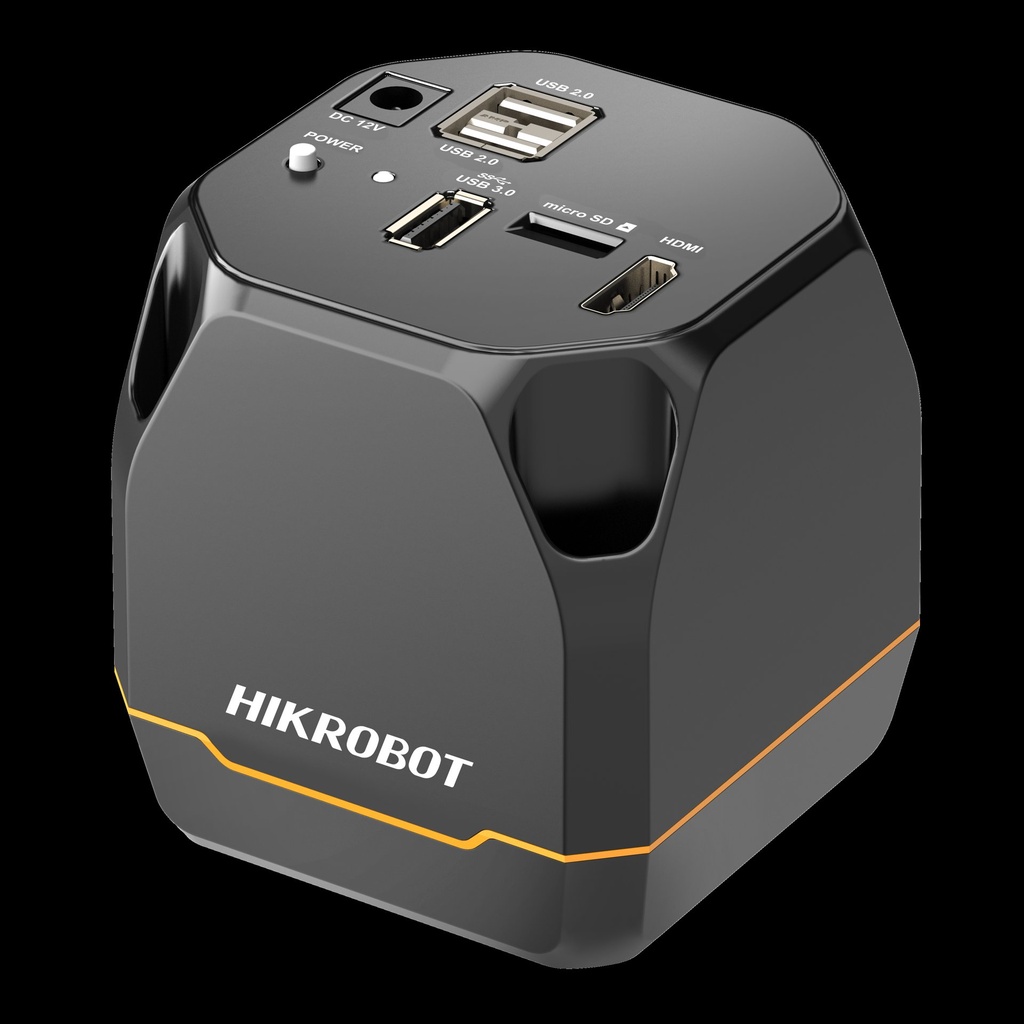

Control interfaceUSB 2.0 × 2, USB 3.0 × 1, micro SD card interface × 1
Lens mountC-mount
