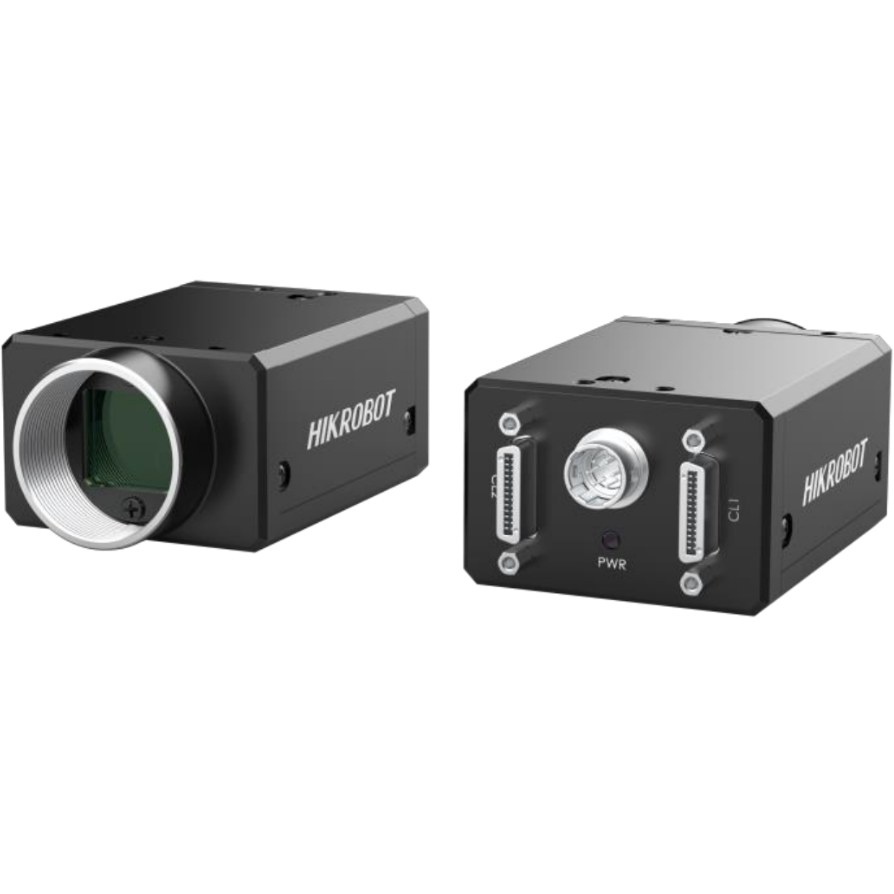

Hikrobot MV-CH320-60TC-M58S-NN

Hikrobot MV-CH320-60TC-M58S-NN

Hikrobot MV-CH320-60TC-M58S-NN — An industrial machine-vision camera for inspection, measurement and positioning in automated production. Genuine Hikrobot product.

0.00 € 0.00 €
kr 0.00
(Tax excluded)
Contact Us
OFFICIAL HIKROBOT PARTNERCE · EU compliant

Hikrobot MV-CH320-60TC-M58S-NN

CH

Resolution
7744 × 4336
Frame rate
30 fps @7744 × 4336 Bayer RG 8
Interface
10 Gigabit Ethernet, compatible with Gigabit Ethernet
Pixel size
2.9 μm × 2.9 μm

Hikrobot MV-CH320-60TC-M58S-NN is an industrial machine-vision camera for inspection, measurement and positioning in automated production.

Applications & Industries

What you can solve with this product:

Presence and completeness inspection
Presence and completeness inspection
Measurement and positioning
Measurement and positioning
Surface and print/label inspection
Surface and print/label inspection
Robot guidance and pick-and-place
Robot guidance and pick-and-place

Specifications

Specifications
Sensor typeCMOS, rolling shutter
Sensor modelStacked BSI
Sensor size22.6 mm × 12.7 mm
Pixel size2.9 μm × 2.9 μm
Resolution7744 × 4336
Max. frame rate30 fps @7744 × 4336 Bayer RG 8
Mono/colorColor
Data interface10 Gigabit Ethernet, compatible with Gigabit Ethernet
Lens mountM58*0.75, flange focal length 11.48 mm (0.5")
Dimension84 mm × 84 mm × 92.5 mm (3.3" × 3.3" × 3.6")
CertificationKC
