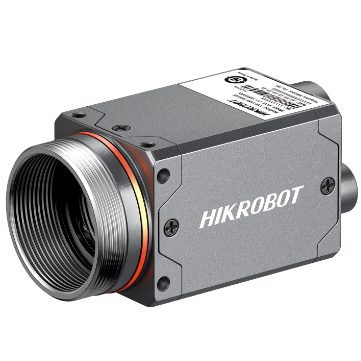

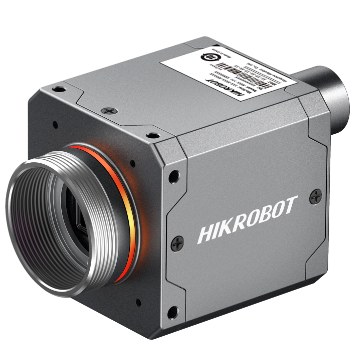

Hikrobot MV-CT2CG0120_G_NN_NN

CT Area Scan Camera

Key features

Key Feature

  • The devices with PRO version and MAX version support waterproof connector.

  • The devices with PRO version and MAX version adopt precision temperature control design for fast heat balance.

  • The color devices with PRO version and MAX version support auto color correction based on multi-spectral fusion technology.

  • The device with MAX version integrates lens and light source, enabling lens focusing and light source control.

  • Adopts GigE interface and max. transmission distance of 100 meters without relay.

  • Compatible with GigE Vision V2.0 Protocol, GenlCam Standard, and third-party software based on the protocol and standard.



Available Model

MV-CT2CG0120/G/NN/NN


Dimension

Technical specifications

Product ModelMV-CT2CG0120/G/NN/NN
Type12MP Area Scan Camera, 3rd Gen., GigE, Color, MAX
Sensor typeCMOS, global shutter
Sensor modelStacked BSI
Pixel size3.45 μm × 3.45 μm
Sensor size1.1"
Resolution4096 × 3000
Max. frame rate9.9 fps @ 4096 × 3000 Bayer GB 8 23.9 fps @ 4096 × 3000 Bayer GB 8 (lossless compression mode enabled)
Dynamic range67.2 dB
SNR44.2 dB
Gain0 dB to 12 dB
Exposure timeUltraShort exposure mode: 10 μs to 19 μs Standard exposure mode: 20 μs to 10 sec
Exposure modeOff/Once/Continuous exposure mode, supports Trigger Width and Trigger Controlled
Pixel formatMono 8, Bayer GB 8/10/10Packed/12/12Packed, YUV422Packed, YUV422_YUYV_Packed, RGB 8, BGR 8
Mono/colorColor
BinningSupports 1 × 1, 2 × 2, 4 × 4
DecimationSupports 1 × 1, 2 × 2, 4 × 4
Reverse imageSupports horizontal and vertical reverse image output
Data interfaceGigabit Ethernet (1000 Mbit/s), compatible with Fast Ethernet (100 Mbit/s)

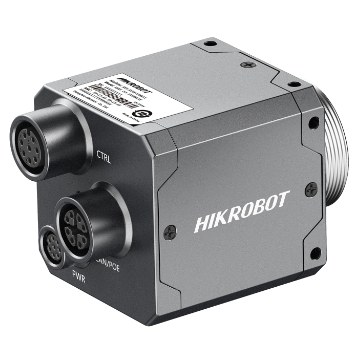

Data interface type8-pin M12 X-Code waterproof aviation connector
Control interface8-pin M12 A-Code waterproof aviation connector
Digital I/O8-pin M8 A-Code aviation connector provides power and I/O, including opto-isolated input × 1 (Line 0), opto-isolated output × 1 (Line 1), bi-directional non-isolated I/O × 1 (Line 2).
Power supply9 VDC to 24 VDC, supports PoE
Power consumptionTyp. 2.0 W @ 24 VDC(fast heat balance not enabled and external device not be controlled)
Lens mountC-mount
Dimension42 mm × 42 mm × 43 mm (1.7" × 1.7" × 1.7")
WeightApprox. 120 g (0.3 lb.)
Ingress protectionIP67 (under proper lens and lens cap installation and wiring)
TemperatureWorking temperature: –30 °C to 60 °C (–22 °F to 140 °F) Storage temperature: –30 °C to 80 °C (–22 °F to 176 °F)
Humidity20% RH to 95% RH (no condensation)
Client softwareMVS or third-party software meeting with GigE Vision Protocol
Operating system32/64-bit Windows 7/10, 64-bit Windows 11, 32/64-bit Linux
CompatibilityGigE Vision V2.0, GenICam
CertificationCE, RoHS, KC
