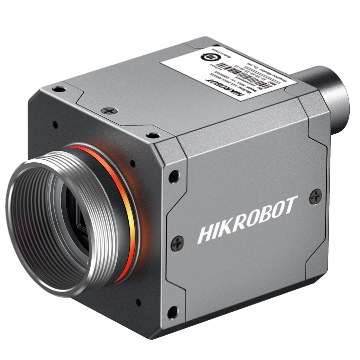

Hikrobot MV-CT089G-13GM01-MAX

CT

Resolution
4096 × 2160
Frame rate
32.5 fps @ 4096 × 2160 Mono 8 (lossless compression mode enabled)
Interface
Gigabit Ethernet, compatible with Fast Ethernet
Sensor
3.45 μm × 3.45 μm

Hikrobot MV-CT089G-13GM01-MAX is an industrial machine-vision camera for inspection, measurement and positioning in automated production.

Where & why

What you can solve with this product:

→Presence and completeness inspection
→Measurement and positioning
→Surface and print/label inspection
→Robot guidance and pick-and-place

Technical specifications

Sensor typeCMOS, global shutter
Sensor modelStacked BSI
Sensor size1"
Pixel size3.45 μm × 3.45 μm
Resolution4096 × 2160
Max. frame rate32.5 fps @ 4096 × 2160 Mono 8 (lossless compression mode enabled)
Mono/colorMono
Data interfaceGigabit Ethernet, compatible with Fast Ethernet
Lens mountC-mount
Dimension42 mm × 42 mm × 43 mm (1.7" × 1.7" × 1.7")
