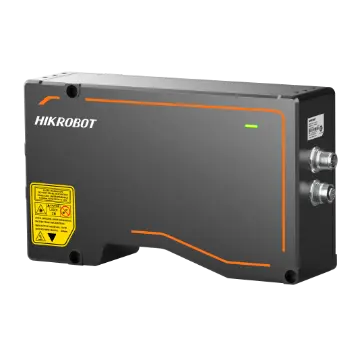

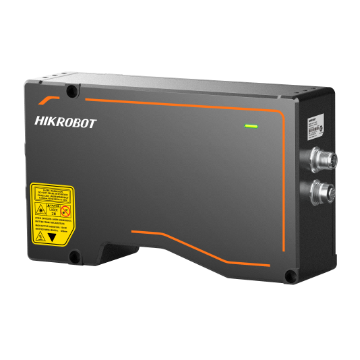

Hikrobot MV-DP3580-03P

3D Laser Profiler

Order code
MV-DP3580-03P
Order number
306400239
Resolution
12.07 μm to 102.94 μm
Z range
580 mm
Range
580 mm

Hikrobot MV-DP3580-03P is a 3D laser profile sensor for high-precision profile measurement and inspection.

Key features

✓Built-in high-accuracy algorithm and accuracy is up to submicron level.
✓Adopts high frame rate chip with 19 KHz scan frequency.
✓Supports multiple exposure modes with good robustness.
✓Adopts multiple-frame integration technology to provide complete contours.
✓Provides multiple filter modes with stable data.
✓Supports ROI selection and auto setting for easier operation.

Applications & Industries

What you can solve with this product:

Typical industries: Automotive3C electronics
Dimensional, height and flatness measurement (sub-micron)
Dimensional, height and flatness measurement (sub-micron)
Surface and defect inspection (scratches, dents, missing material)
Surface and defect inspection (scratches, dents, missing material)
Glue/sealant bead and weld-seam inspection
Glue/sealant bead and weld-seam inspection
Volume and co-planarity control
Volume and co-planarity control
3D positioning
3D positioning for robot guidance

Specifications

Performance
Data points/profile3200
Reference distance585 mm
Measurement range (Z-axis)580 mm
Measurement range (X-axis)165 mm @ near field of view 306 mm @ reference distance 447 mm @ far field of view
Resolution (Z-axis)12.07 μm to 102.94 μm
Repeatability (Z-axis)*4.47 μm @ data that sensor tests gauge block on optical platform
Linearity Z-axis (±% of MR)0.01
Profile data interval50.1 μm to 146.8 μm
Scan frame rate1.3 kHz (within max. measurement range), max. 19 kHz (in ROI mode)
Data outputDepth image, profile data, brightness image
Trigger modeSoftware trigger, hardware trigger (differential encoder)
Laser safety classClass 3R
Wavelength650 nm
Electrical features
Data interfaceGigabit Ethernet (1000 Mbit/s), compatible with Fast Ethernet (100 Mbit/s)
Digital I/O12-pin M12 interface provides power and I/O, including differential input × 3 (Line 0/3/6), differential output × 1 (Line 1), and RS-232 × 1
Power supply24 VDC
Power consumptionTyp. 13.8 W @ 24 VDC
Mechanical
Dimension210.5 mm × 125.5 mm × 59 mm (8.3" × 4.9" × 2.3")
WeightApprox. 1550 g (3.4 lb.)
Ingress protectionIP67
TemperatureWorking temperature: 0 °C to 45 °C (32 °F to 113 °F) Storage temperature: –30 °C to 80 °C (–22 °F to 176 °F)
Humidity20% RH to 85% RH (no condensation)
General
Client software3DMVS, VM3D, and third-party 3D software
Operating system32/64-bit Windows 7/10/11 (8 GB memory and i5 CPU recommended)
