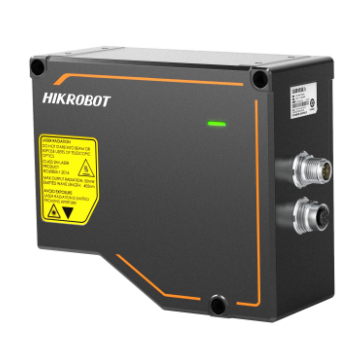

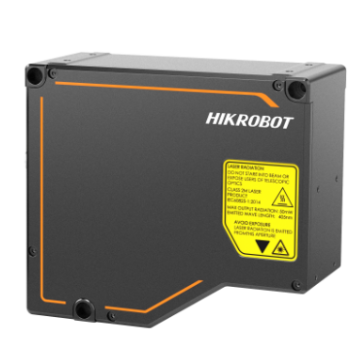

Hikrobot MV-DP3062-01P

3D Laser Profiler

Order code
MV-DP3062-01P
Order number
306400244
Resolution
0.5 μm to 0.8 μm
Z range
10 mm
Range
10 mm

Hikrobot MV-DP3062-01P is a 3D laser profile sensor for high-precision profile measurement and inspection, supplied and supported by ZTEC as your Hikrobot partner in the Nordics and Baltics.

Key features

✓Built-in high-accuracy algorithm and accuracy is up to submicron level.
✓Adopts high frame rate chip with 19 KHz scan frame rate.
✓Supports multiple exposure modes with good robustness.
✓Adopts multiple-frame integration technology to provide complete contours.
✓Provides multiple filter modes with stable data.
✓Supports ROI selection and auto settings for easier operation.

Applications & Industries

What you can solve with this product:

Typical industries: Consumer electronicsElectronics manufacturingAutomotive
Dimensional, height and flatness measurement (sub-micron)
Dimensional, height and flatness measurement (sub-micron)
Surface and defect inspection (scratches, dents, missing material)
Surface and defect inspection (scratches, dents, missing material)
Glue/sealant bead and weld-seam inspection
Glue/sealant bead and weld-seam inspection
Volume and co-planarity control
Volume and co-planarity control
3D positioning
3D positioning for robot guidance

Specifications

Performance
Data points/profile3200
Reference distance61.5 mm
Measurement range (Z-axis)10 mm
Measurement range (X-axis)16.6 mm @ near field of view 17.8 mm @ reference distance 19 mm @ far field of view
Resolution (Z-axis)0.5 μm to 0.8 μm
Repeatability (Z-axis)*0.1 μm @ data that sensor tests gauge block on optical platform
Linearity Z-axis (±% of MR)0.01
Profile data interval5.2 μm to 5.9 μm
Scan frame rate1.3 kHz (within max. measurement range), max. 19 kHz (in ROI mode)
Data outputProfile data, depth image, brightness image
Trigger modeSoftware trigger, hardware trigger (differential encoder)
Laser safety classClass 3B
Wavelength405 nm
Electrical feature
Data interfaceGigabit Ethernet (1000 Mbit/s), compatible with Fast Ethernet (100 Mbit/s)
Digital I/O12-pin M12 interface provides power and I/O, including differential input × 3 (Line 0/3/6), differential output × 1 (Line 1), and RS-232 × 1
Power supply24 VDC
Power consumptionTyp. 13.8 W @ 24 VDC
Mechanical
Dimension136.5 mm × 120 mm × 60.5 mm (5.4" × 4.7" × 2.4")
WeightApprox. 1080 g (2.4 lb.)
Ingress protectionIP67
TemperatureWorking temperature: 0 °C to 45 °C (32 °F to 113 °F) Storage temperature: –30 °C to 80 °C (–22 °F to 176 °F)
Humidity20% RH to 85% RH (no condensation)
General
Client software3DMVS, VM3D, or third-party 3D software
Operating system32/64-bit Windows 7/10/11 (8 GB memory and above, and i5 CPU recommended)
