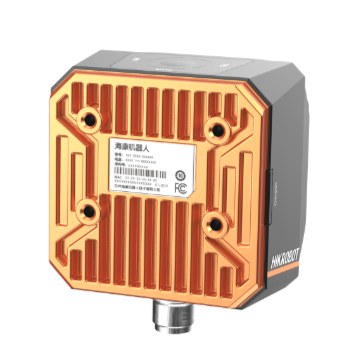

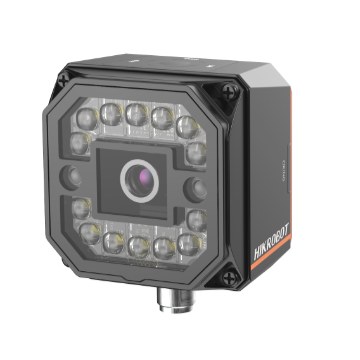

MV-SC3016C-12M-WBN V3.0

Hikrobot MV-SC3016C-12M-WBN — A smart camera with on-board image processing for inspection, measurement and control directly on the line. Genuine product, supplied by ZTEC.

1,664.47 € 1,664.47 €
kr 12,442.39
(Tax excluded)
  • IP Protection
  • Resolution (MP)
  • Mono or Color
  • Max. frame rate
Contact Us
Documents
MV-SC3016C-12M-WBN - Datasheet.pdf MV-SC3016C-12M-WBN - Drawing.pdf
OFFICIAL HIKROBOT PARTNERCE · EU compliant

Hikrobot MV-SC3016C-12M-WBN

SC3000 Series Vision Sensor

Order code
MV-SC3016C-12M-WBN
Order number
308600618
Resolution
1408 × 1024
Frame rate
60 fps
Focal length
12 mm
Interface
Fast Ethernet (100 Mbit/s)

Hikrobot MV-SC3016C-12M-WBN is a smart camera with on-board image processing for inspection, measurement and control directly on the line, supplied and supported by ZTEC as your Hikrobot partner in the Nordics and Baltics.

Key features

✓Adopts embedded hardware platform for high-speed image processing.
✓Adopts built-in positioning and measurement algorithms to detect object's existence, quantity, location, etc.
✓Multiple IO interfaces for input and output signals.
✓Multiple indicators for displaying device status.
✓Adopts light source to ensure uniform brightness in the illuminated area.
✓Supports multiple communication protocols, including RS-232, TCP, UDP, FTP, PROFINET, Modbus, and EtherNet/IP.

Applications & Industries

What you can solve with this product:

Typical industries: Consumer electronicsAutomotiveFood & beverageMedical
Presence and completeness inspection
Presence and completeness inspection
Measurement and positioning
Measurement and positioning
Surface and print/label inspection
Surface and print/label inspection
Robot guidance and pick-and-place
Robot guidance and pick-and-place

Specifications

Tool
Vision toolMeasurement: P2P measurement, P2L measurement, contrast measurement, grayscale size, edge width measurement, width measurement, brightness average value, L2L angle, color measurement, color size, diameter measurement, line angle Existence: Spot existence, edge existence, contour existence, pattern existence, circle existence, line existence, anomaly judge, existence detection Count: Spot count, edge count, contour count, pattern count, learning-based count, color count Recognition: Multi-object count, code recognition, color contrast, color recognition, category recognition, classification registration, object registration, OCR Logic: Calculator, if module, logic judge, format output, condition judge, character comparison, combination judge Location: Calibration convert, single point alignment, point rectify, point grasp, scale transformation, fixture Deep learning: DL classification, DL object detection Defect detection: Anomaly detection
Communication protocolRS-232, TCP, UDP, FTP, PROFINET, Modbus, EtherNet/IP, MELSEC/SLMP, FINS, Keyence KV
Electrical feature
Digital I/O17-pin M12 connector provides power, Ethernet, digital I/O, and serial port: Input signal × 2 (Line 0/1), output signal × 3 (Line 5/6/7), bi-directional I/O × 3 (Line 2/3/4), and external button input × 1. Output signal can be set as NPN or PNP.
Power consumptionAvg.: 13.8 W @ 24 VDC (light source enabled) Max.: 42 W @ 24 VDC (light source enabled)
Mechanical
IndicatorPower indicator (PWR), network indicator (LNK), status indicator (STS), result indicator (OK/NG)
TemperatureWorking temperature: 0 °C to 50 °C (32 °F to 122 °F) Storage temperature: –30 °C to 70 °C (–22 °F to 158 °F)
Vibration resistanceMeets standard IEC 60068-2-6:2007. Bare device withstands 10 Hz to 55 Hz, 1.5 mm peak-to-peak amplitude, 2 hours per axis (X, Y, Z)
Shock resistanceMeets standard IEC 60068-2-27:2008. Bare device withstands 30 g / 11 ms, half-sine wave, 500 shocks per axis (6 directions)
Additional specifications
Solution capacitySupports importing and exporting solutions, up to 32 solutions can be stored.
Sensor typeCMOS, global shutter
Pixel size3.45 μm × 3.45 μm
Sensor size1/2.9"
Resolution1408 × 1024
Max. frame rate60 fps
Gain0 dB to 15 dB
Exposure time16 μs to 1 sec;35 μs to 1 sec
Pixel formatRGB 8, Mono 8
Mono/colorColor
Data interfaceFast Ethernet (100 Mbit/s)
Power supply24 VDC
Lens mountM12-mount, mechanical focus supported
Focal length12 mm
Lens capTransparent lens cap by default. Half-polarized or fully-polarized lens cap is optional.
Light source14 LEDs, white light by default. Red, blue or IR is optional.
Dimension65.2 mm × 65.2 mm × 47 mm (2.6" × 2.6" × 1.9")
WeightApprox. 280 g (0.6 lb.)
Ingress protectionIP67 (under proper installation of lens and wiring)
Humidity20% RH to 95% RH (no condensation)
Client softwareSCMVS
CertificationCE, KC

Downloads

Datasheets, drawings and manuals — all in one place.

MV-SC3016C-12M-WBN - Datasheet.pdfPDF · 532.6 KB
MV-SC3016C-12M-WBN - Drawing.pdfPDF · 3.9 MB
Technical support
We help with selection, integration and operation
Official Hikrobot partner
Genuine, CE-marked products with full warranty
Full range & fast quotes
We source the entire Hikrobot range, incl. special items

Need advice or a quote?

ZTEC is your Hikrobot partner — we find the right configuration for your application.

Contact us

Specifications

Vision specifications
Resolution (MP) 1408 x 1024 (1.4 MP)
Mono or Color Color
Max. frame rate 60 fps
Others
IP Protection IP67
