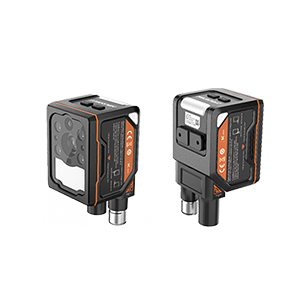

MV-SC3050XC-12M-WBN

SC3050XC Smart Camera with 2432 × 2048 resolution, Color, and 40 fps is the perfect choice for your automation project or production line.

Max. frame rate: 40 fps
Mono/color: Color
Resolution: 2432 × 2048
Communication protocol: RS-232, TCP, UDP, FTP, PROFINET, ModBus, EtherNet/IP, MELSEC/SLMP, FINS, Keyence KV
Lens cap: Polarized + diffused + full-transparent lens cap
Light source: White spot light source. Red/blue/IR point light source is optional
Dimension: Straight angle: 80.1 mm × 43 mm × 44.3 mm (3.2" × 1.7" × 1.7") Right angle: 58.5 mm × 43 mm × 65.4 mm (2.3" × 1.7" × 2.6")
Ingress protection: IP67 (under proper installation of waterproof lens cap)
Dimension: Straight angle: 80.1 mm × 43 mm × 44.3 mm (3.2" × 1.7" × 1.7") Right angle: 58.5 mm × 43 mm × 65.4 mm (2.3" × 1.7" × 2.6")
Certification: CE-RoHS;CE-EMC;KC
