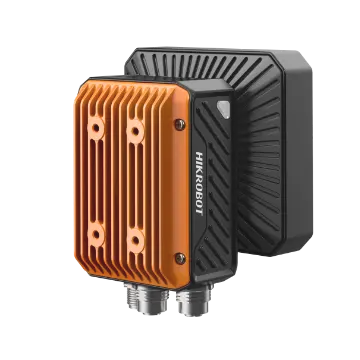

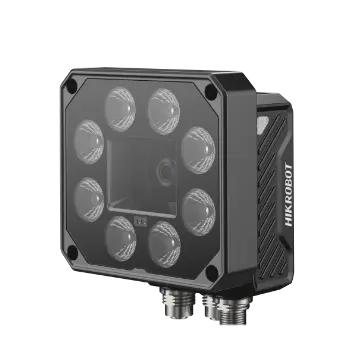

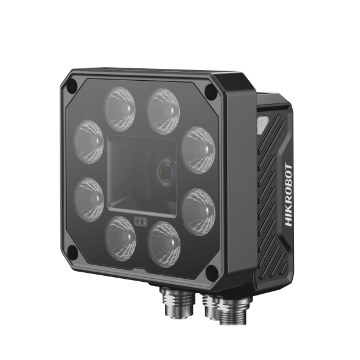

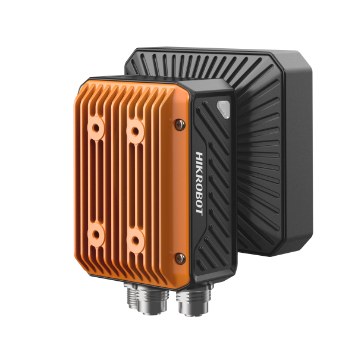

Hikrobot MV-SC6050C-12M-XBN

SC6000 Series Smart Camera

Order code
MV-SC6050C-12M-XBN
Order number
308600850
Resolution
2432 × 2048
Frame rate
80 fps
Focal length
12 mm
Interface
Gigabit Ethernet (1000 Mbit/s)

Hikrobot MV-SC6050C-12M-XBN is a smart camera with on-board image processing for inspection, measurement and control directly on the line, supplied and supported by ZTEC as your Hikrobot partner in the Nordics and Baltics.

Key features

✓Adopts AI deep learning algorithm to achieve OCR, object recognition, defect detection, etc.
✓Integrates VM functions, and supports more than 140 algorithms.
✓Supports four-color light source (red/green/blue/white), and switching as needed.
✓Adopts multiple I/O interfaces, such as multiple input/output signals.
✓Supports multiple communication protocols.
✓Supports indicators displaying device status for easy debugging and maintenance.
✓Supports ingress protection IP67.

Applications & Industries

What you can solve with this product:

Typical industries: Consumer electronicsFood & beveragePharmaceuticalPackaging
Presence and completeness inspection
Presence and completeness inspection
Measurement and positioning
Measurement and positioning
Surface and print/label inspection
Surface and print/label inspection
Robot guidance and pick-and-place
Robot guidance and pick-and-place

Specifications

Electrical features
Digital I/O17-pin M12 connector provides power and I/O, including opto-isolated input × 2 (Line 0/1), opto-isolated output × 2 (Line 4/5), configurable non-isolated input/output × 2 (Line 2/3), RS-232 × 1, and light source output (max. 30 W) × 1
Power consumptionExternal light source and built-in light source cannot be used at the same time Avg. 12 W @ 24 VDC (with no external light source and the built-in light source disabled) Avg. 42 W @ 24 VDC (with external light source) Avg. 16.6 W @ 24 VDC (built-in light source is enabled) Max. 18 W @ 24 VDC (with no external light source and the built-in light source disabled) Max. 48 W @ 24 VDC (with external light source or the built-in light source enabled)
Mechanical
IndicatorPower indicator (PWR), network indicator (LNK), status indictor (STS), and user-defined indicator (U1/U2)
TemperatureWorking temperature: 0 °C to 50 °C (32 °F to 122 °F) Storage temperature: –30 °C to 70 °C (–22 °F to 158 °F)
Vibration resistanceMeets standard IEC 60068-2-6:2007. Device only (without installation bracket): 10 Hz to 55 Hz, 1.5 mm peak-to-peak amplitude, 2 hours per axis (X, Y, Z)
Shock resistanceMeets standard IEC 60068-2-27:2008. Device only (without installation bracket): 30 g / 11 ms, half-sine wave, 500 shocks per axis (6 directions)
Additional specifications
Function moduleVision Master Platform (include deep learning module)
Communication protocolTCP, UDP, MODBUS, Serial Port, PROFINET, EtherNet/IP, Fins, MC, FTP, etc.
Sensor typeCMOS, global shutter
Pixel size3.45 μm × 3.45 μm
Sensor size1/1.45"
Resolution2432 × 2048
Max. frame rate80 fps
Gain0 dB to 18 dB
Exposure time16 μs to 1 sec
Pixel formatMono 8, RGB 8
Mono/colorColor
Memory8 GB
Storage64 GB
Data interfaceGigabit Ethernet (1000 Mbit/s)
Extended interfaceVGA × 1, and USB host × 1
Power supply24 VDC
Lens mountM12-mount
Focal length12 mm
Light sourceRed light, green light, blue light, white light (switching by software)
Dimension77 mm × 98 mm × 115.7 mm (3.0" × 3.9" × 4.6")
WeightApprox. 750 g (1.7 lb.)
Ingress protectionIP67 (under proper installation of waterproof lens cap)
Humidity20% RH to 95% RH (no condensation)
CertificationCE, KC
