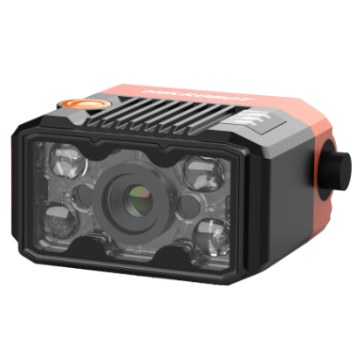

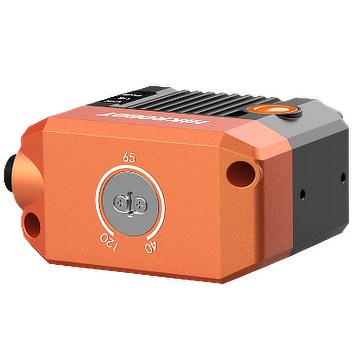

Hikrobot MV-SC2004EM-06S-WBN-Mini

SC2000 Series Vision Sensor

Order code
MV-SC2004EM-06S-WBN-Mini
Order number
308600950
Resolution
704 × 540
Frame rate
60 fps
Focal length
6.72 mm
Interface
Fast Ethernet (100 Mbit/s)

Hikrobot MV-SC2004EM-06S-WBN-Mini is a smart camera with on-board image processing for inspection, measurement and control directly on the line, supplied and supported by ZTEC as your Hikrobot partner in the Nordics and Baltics.

Key features

✓Adopts embedded hardware platform for high-speed image processing.
✓Adopts built-in positioning and measurement algorithms for counting, existence, measurement detection.
✓Multiple IO interfaces for input and output signals.
✓Multiple indicators for displaying device status.
✓Adopts light source to ensure uniform brightness in the illuminated area.
✓Supports multiple communication protocols, including RS-232, TCP, UDP, FTP, Modbus, PROFINET, EtherNet/IP and other communication modes.

Applications & Industries

What you can solve with this product:

Typical industries: Consumer electronicsAutomotiveFood & beveragePharmaceutical
Presence and completeness inspection
Presence and completeness inspection
Measurement and positioning
Measurement and positioning
Surface and print/label inspection
Surface and print/label inspection
Robot guidance and pick-and-place
Robot guidance and pick-and-place

Specifications

Tool
Vision toolMeasurement: P2P measurement, P2L measurement, contrast measurement, greyscale size, edge width measurement, width measurement, brightness average value, L2L angle, diameter measurement, and line angle Existence: Anomaly judge, spot existence, edge existence, contour existence, pattern existence, circle existence, and line existence Count: Spot count, edge count, contour count, and pattern count Recognition: Category recognition, classification registration, and OCR Logic: Calculator, logic judge, condition judge, combination judge, format output, If module, and character comparison Location: Fixture
Solution capacitySupports solution importing and exporting, up to 8 solutions and 40 modules can be stored.
Communication protocolRS-232, TCP, UDP, FTP, PROFINET, Modbus, EtherNet/IP, MELSEC/SLMP, FINS, Keyence KV
Electrical feature
Digital I/O17-pin M12 connector provides power, Ethernet, serial port, and digital I/O, including non-isolated input × 1 (Line 2), non-isolated output × 1 (Line 3), configurable non-isolated I/O × 2 (Line 0/1), RS-232 × 1, and external button input × 1 (BUTTON) Output signals support NPN only.
Power consumptionAvg. 4 W @ 24 VDC Max. 11 W @ 24 VDC
Mechanical
TemperatureWorking temperature: 0 °C to 50 °C (32 °F to 122 °F) Storage temperature: –30 °C to 70 °C (–22 °F to 158 °F)
Vibration resistanceMeets standard IEC 60068-2-6:2007. Device only (without installation bracket): 10 Hz to 55 Hz, 1.5 mm peak-to-peak amplitude, 2 hours per axis (X, Y, Z)
Shock resistanceMeets standard IEC 60068-2-27:2008. Device only (without installation bracket): 30 g / 11 ms, half-sine wave, 500 shocks per axis (6 directions)
Additional specifications
Sensor typeCMOS, global shutter
Pixel size6.9 μm × 6.9 μm
Sensor size1/2.9"
Resolution704 × 540
Max. frame rate60 fps
Gain0 dB to 15 dB
Exposure time16 μs to 1 sec
Pixel formatMono 8
Mono/colorMono
Data interfaceFast Ethernet (100 Mbit/s)
Power supply12 VDC to 24 VDC
Lens mountM10-mount, adjusting focus manually supported
Focal length6.72 mm
Lens capTransparent lens cap
Light sourceWhite LED lamp × 4
IndicatorPower indicator (PWR), network indicator (LNK), and status indicator (STS)
Dimension46 mm × 38 mm × 25 mm (1.8" × 1.5" × 1.0")
WeightApprox. 160 g (0.4 lb.)
Ingress protectionIP65
Humidity20% RH to 95% RH (no condensation)
Client softwareSCMVS
CertificationCE, KC
