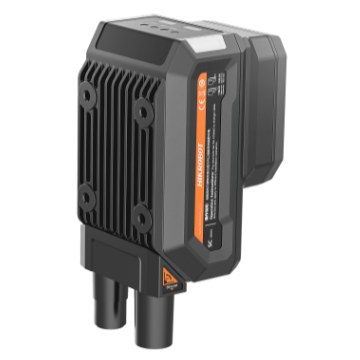

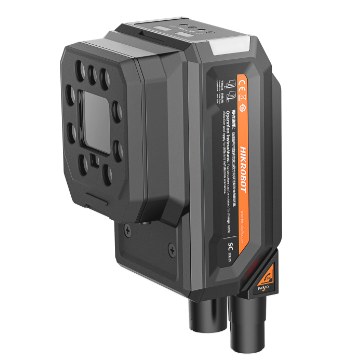

Hikrobot MV-SC5020XC-06M-WBN

SC5000X Series Smart Camera

Order code
MV-SC5020XC-06M-WBN
Order number
308601112
Resolution
1600 × 1216
Frame rate
100 fps
Focal length
6 mm
Interface
Gigabit Ethernet (1000 Mbit/s)

Hikrobot MV-SC5020XC-06M-WBN is a smart camera with on-board image processing for inspection, measurement and control directly on the line, supplied and supported by ZTEC as your Hikrobot partner in the Nordics and Baltics.

Key features

✓Adopts AI deep learning algorithm to achieve OCR, object recognition, defect detection, etc.
✓Integrates VM functions, and supports more than 140 algorithms.
✓Adopts multiple I/O interfaces, such as multiple input/output signals.
✓Supports multiple communication protocols.
✓Supports indicators displaying device status for easy debugging and maintenance.
✓Supports ingress protection IP67.

Applications & Industries

What you can solve with this product:

Typical industries: Consumer electronicsFood & beveragePharmaceuticalPackaging
Presence and completeness inspection
Presence and completeness inspection
Measurement and positioning
Measurement and positioning
Surface and print/label inspection
Surface and print/label inspection
Robot guidance and pick-and-place
Robot guidance and pick-and-place

Specifications

Electrical feature
Digital I/O12-pin M12 connector provides power and I/O, including opto-isolated input × 3 (Line 0/1/2), opto-isolated output × 3 (Line 3/4/5), and RS-232 × 1
Power consumptionAvg. 12.3 W @ 24 VDC (with included light source on) Max. 48 W @ 24 VDC (with included light source on)
Mechanical
Lens capHalf polarization lens cap by default. Transparent or full polarization lens cap is optional.
DimensionStraight angle: 112.3 mm × 54 mm × 60.2 mm (4.4" × 2.1" × 2.4") Right angle: 88.7 mm × 54 mm × 82.5 mm (3.5" × 2.1" × 3.2")
TemperatureWorking temperature: 0 °C to 50 °C (32 °F to 122 °F) Storage temperature: –30 °C to 70 °C (–22 °F to 158 °F)
Vibration resistanceMeets standard IEC 60068-2-6:2007. Device only (without installation bracket): 10 Hz to 55 Hz, 1.5 mm peak-to-peak amplitude, 2 hours per axis (X, Y, Z)
Shock resistanceMeets standard IEC 60068-2-27:2008. Device only (without installation bracket): 30 g / 11 ms, half-sine wave, 500 shocks per axis (6 directions)
Additional specifications
Function moduleVision Master Platform (include deep learning module)
Communication protocolTCP, UDP, Modbus, Serial Port, PROFINET, EtherNet/IP, Fins, MC, FTP, etc.
Sensor typeCMOS, global shutter
Pixel size3.45 μm × 3.45 μm
Sensor size1/2.53"
Resolution1600 × 1216
Max. frame rate100 fps
Gain0 dB to 37 dB
Exposure time15 μs to 1 sec
Pixel formatMono 8, RGB 8
Mono/colorColor
Memory8 GB
Storage64 GB
Data interfaceGigabit Ethernet (1000 Mbit/s)
Power supply24 VDC
Lens mountM12-mount, mechanical focus
Focal length6 mm
Light sourceWhite light source by default. Red, blue, or IR light source is optional
IndicatorPower indicator (PWR), network indicator (LNK), and user-defined indicator (U1/U2)
WeightApprox. 370 g (0.8 lb.)
Ingress protectionIP67 (under proper installation of waterproof lens cap)
Humidity20% RH to 95% RH (no condensation)
CertificationCE, KC
