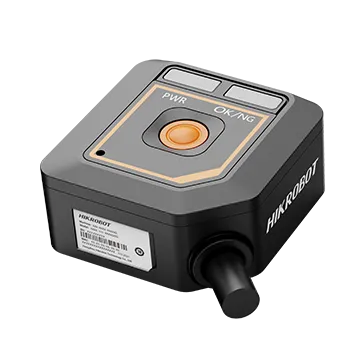

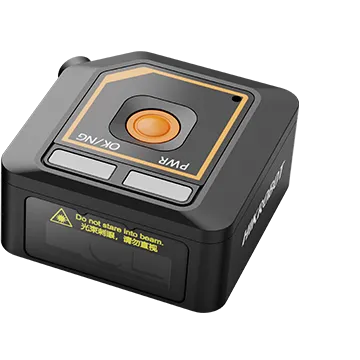

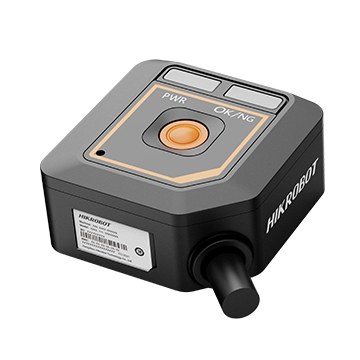

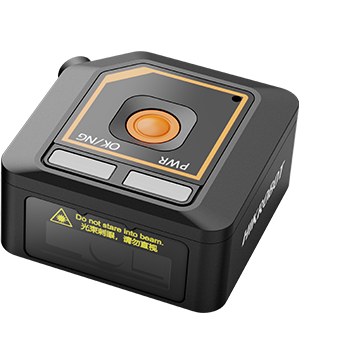

Hikrobot MV-SC1003C-03S-WBN-SR

SC1000 Series Vision Sensor

Order code
MV-SC1003C-03S-WBN-SR
Order number
308601134
Resolution
640 × 480
Frame rate
15 fps
Working distance
240 mm
Focal length
3.1 mm

Hikrobot MV-SC1003C-03S-WBN-SR is a smart camera with on-board image processing for inspection, measurement and control directly on the line, supplied and supported by ZTEC as your Hikrobot partner in the Nordics and Baltics.

Key features

✓Adopts small-size design for all types of machines and compact workstations.
✓Adopts embedded hardware platform for high-speed image processing.
✓Adopts built-in positioning and measurement algorithms to detect object’s existence, quantity, location, etc.
✓Integrated LED aimer to allow the field-of-view to be clearly.
✓Provides multiple indicators for displaying device status.
✓Supports multiple communication protocols, including Modbus, EtherNet/IP, PROFINET, FTP, UDP, TCP, and Serial Port.

Applications & Industries

What you can solve with this product:

Typical industries: Consumer electronicsAutomotiveFood & beveragePharmaceutical3C electronics
Presence and completeness inspection
Presence and completeness inspection
Measurement and positioning
Measurement and positioning
Surface and print/label inspection
Surface and print/label inspection
Robot guidance and pick-and-place
Robot guidance and pick-and-place

Specifications

Tool
Vision toolMeasurement: P2L measurement, contrast measurement, grayscale size, edge width measurement, width measurement, brightness analysis, L2L angle, diameter measurement, line angle, color measurement, and color size Existence: Anomaly judge, spot existence, edge existence, contour existence, circle existence, and line existence Count: Spot count, edge count, contour count, and color count Recognition: Category recognition, classification registration, and color contrast Logic: Calculator, logic judge, condition judge, combination judge, and format output Location: Fixture
Solution capacitySupports solution importing and exporting, and up to 8 solutions and 40 modules can be stored.
Communication protocolModbus, EtherNet/IP, PROFINET, FTP, UDP, TCP client, TCP server, Serial Port, MELSEC/SLMP, FINS, Keyence KV
Electrical feature
Digital I/OGreen terminal provides power, digital I/O, and serial port, including input signal × 1 (Line 0), output signal × 1 (Line 1), and RS-232 × 1. Supports triggering device via pressing top trigger button.
Power consumptionAvg. 1.5 W @ 12 VDC Max. 3 W @ 12 VDC
Mechanical
TemperatureWorking temperature: 0 °C to 50 °C (32 °F to 122 °F) Storage temperature: –30 °C to 70 °C (–22 °F to 158 °F)
Vibration resistanceMeets standard IEC 60068-2-6:2007. Device only (without installation bracket): 10 Hz to 55 Hz, 1.5 mm peak-to-peak amplitude, 2 hours per axis (X, Y, Z)
Shock resistanceMeets standard IEC 60068-2-27:2008. Device only (without installation bracket): 30 g / 11 ms, half-sine wave, 500 shocks per axis (6 directions)
Additional specifications
Sensor typeCMOS, global shutter
Pixel size3.74 μm × 3.74 μm
Sensor size1/6"
Resolution640 × 480
Max. frame rate15 fps
Gain1 dB to 23 dB
Exposure time60 μs to 7000 μs
Pixel formatMono 8, RGB 8
Mono/colorColor
Data interfaceFast Ethernet (100 Mbit/s)
Power supply12 VDC to 24 VDC
Lens mountM5.8-mount
Focal length3.1 mm
Working distance240 mm
Lens capTransparent lens cap
Light sourceWhite LED
Aiming system1 LED
IndicatorPower indicator (PWR), result indicator (OK/NG)
Dimension38 mm × 38 mm × 19 mm (1.5" × 1.5" × 0.7")
WeightApprox. 40 g (0.1 lb.) without cable
Ingress protectionIP54
Humidity20% RH to 95% RH (no condensation)
Client softwareSCMVS
CertificationCE, KC
