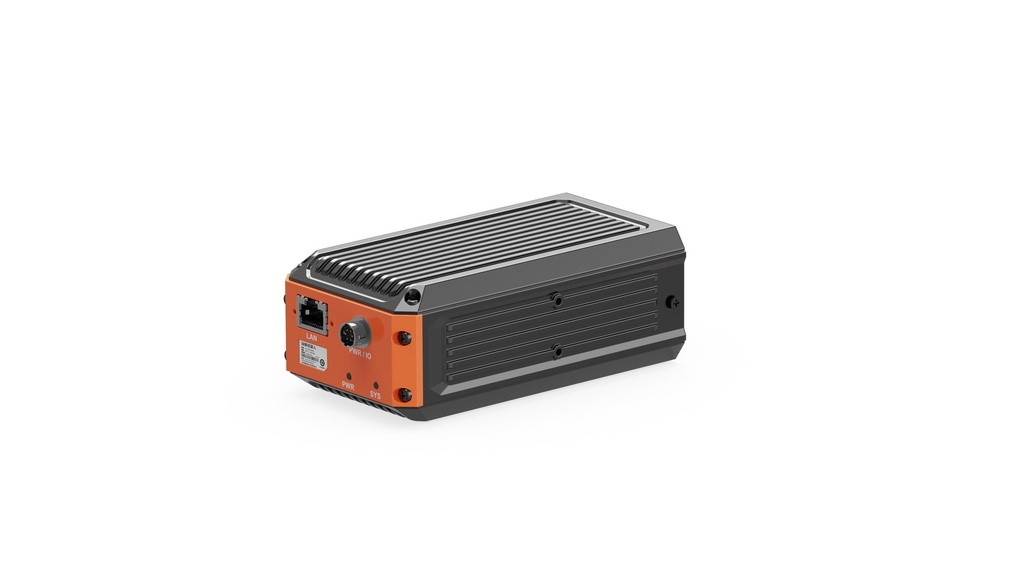

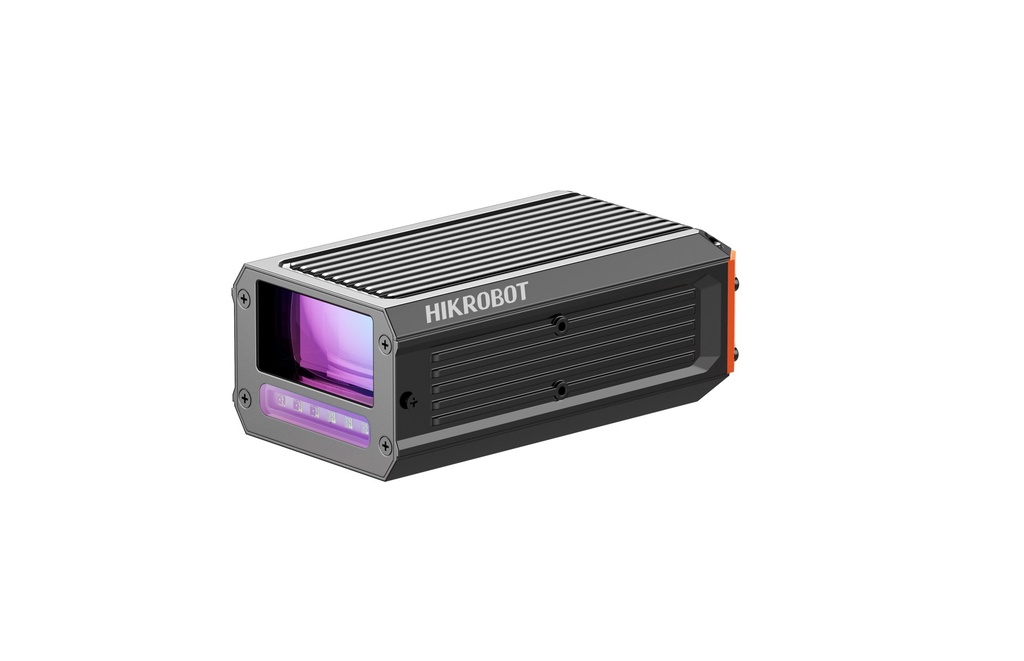

Hikrobot MV-SC6500P-AI-WID-RBN

SC6000 Series Smart Camera

Order code
MV-SC6500P-AI-WID-RBN
Order number
308601145
Resolution
1408 × 576
Frame rate
120 fps
Field of view
38 mm × 15 mm
Interface
Gigabit Ethernet (1000 Mbit/s)

Hikrobot MV-SC6500P-AI-WID-RBN is a smart camera with on-board image processing for inspection, measurement and control directly on the line.

Key features

✓Adopts AI algorithm to recognize wafer ID information.
✓Supports advanced optical imaging system with multiple lighting methods.
✓Integrates VM functions, and supports more than 140 algorithms.
✓Adopts high-performance CPU with faster calculation performance and high efficiency.
✓Supports multiple communication protocols.
✓Supports indicators displaying device status for easy debugging and maintenance.

Applications & Industries

What you can solve with this product:

Typical industries: Semiconductor
Presence and completeness inspection
Presence and completeness inspection
Measurement and positioning
Measurement and positioning
Surface and print/label inspection
Surface and print/label inspection
Robot guidance and pick-and-place
Robot guidance and pick-and-place

Specifications

Electrical feature
Digital I/O6-pin P7 connector provides power and I/O, including non-isolated input × 1, non-isolated output × 1, and RS-232 × 1
Power consumptionAvg. 11.5 W @ 24 VDC Max. 18 W @ 24 VDC
Mechanical
TemperatureWorking temperature: 0 °C to 40 °C (32 °F to 104 °F) Storage temperature: –30 °C to 70 °C (–22 °F to 158 °F)
Vibration resistanceMeets standard IEC 60068-2-6:2007. Device only (without installation bracket): 10 Hz to 55 Hz, 1.5 mm peak-to-peak amplitude, 2 hours per axis (X, Y, Z)
Shock resistanceMeets standard IEC 60068-2-27:2008. Device only (without installation bracket): 30 g / 11 ms, half-sine wave, 500 shocks per axis (6 directions)
Additional specifications
Function moduleVision Master Platform (include deep learning module) and SCClient
Algorithm capabilitySEMI OCR character, data matrix code, QR code, and barcode
Communication protocolTCP, UDP, MODBUS, Serial Port, PROFINET, EtherNet/IP, Fins, MC, FTP, etc.
Sensor typeCMOS, global shutter
Pixel size3.45 μm × 3.45 μm
Sensor size1/3.4"
Resolution1408 × 576
Max. frame rate120 fps
Gain0 dB to 37 dB
Exposure time25 μs to 1 sec
Pixel formatMono 8
Mono/colorMono
LEDRed LED (RGB is supported by bar light)
Lighting methodMultiple lighting methods (bright field lighting and dark field lighting)
Illumination intensityConfigure in software
IndicatorPower indicator (PWR), network indicator (LNK), and status indicator (SYS)
Memory8 GB
Storage64 GB
Lens mountM12-mount
Focus modeAuto
Installation height40 mm to 50 mm (recommended)
Field of view (range)38 mm × 15 mm
Depth of field± 5 mm
Data interfaceGigabit Ethernet (1000 Mbit/s)
Power supply24 VDC
WeightApprox. 829 g (1.8 lb.)
Dimension127 mm × 69 mm × 49 mm (5" × 2.7" × 1.9")
Ingress protectionIP40
Humidity20% RH to 95% RH (no condensation)
CertificationCE, KC
