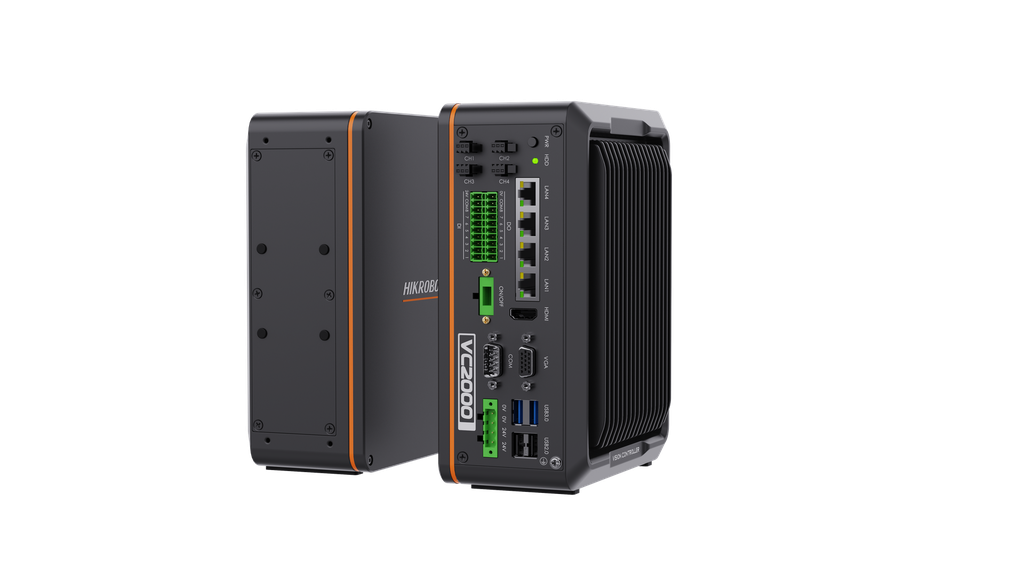

Hikrobot MV-VC2040-128G40-NN

VC2000 Series

Order code
MV-VC2040-128G40-NN
Order number
308800291
Interface
GigE interface × 4
Memory
8 GB
Storage
128 GB SSD

Hikrobot MV-VC2040-128G40-NN is an industrial vision controller (IPC) — a compact industrial computer that runs machine-vision software and processes images from connected cameras directly on the production line, supplied and supported by ZTEC as your Hikrobot partner in the Nordics and Baltics.

Key features

✓Adopts Intel® Elkhart Lake processor to provide calculation.
✓Supports GPIO function.
✓Supports 4-channel light source control.
✓Adopts GigE interfaces for stable data transmission.
✓Built-in USB interface or dongle is optional.

Applications & Industries

What you can solve with this product:

Typical industries: Consumer electronicsFood & beveragePharmaceutical
Running VisionMaster / machine-vision software
Running VisionMaster / machine-vision software on the line
Central image processing
Central image processing for one or more connected cameras
Driving and synchronising lighting and I/O
Driving and synchronising lighting and I/O via built-in interfaces
Compact, fanless industrial computing
Compact, fanless industrial computing for inspection cells and machines
Edge vision computing without a separate PC cabinet
Edge vision computing without a separate PC cabinet

Specifications

Performance
CPUIntel® CeleronTM J6412
Memory8 GB
Storage128 GB SSD
GPUIntel® UHD Graphics for 10th Gen Intel® Processors
Operating systemUnactivated 64-bit Windows 10
Encryption
Encryption methodNot supported
External interface
Video outputHDMI interface × 1, VGA interface × 1 Supports dual display outputs, max. resolution 1920 × 1080 @60 Hz
Digital I/OOpto-isolated input × 8, opto-isolated output × 8
Network interfaceGigE interface × 4
USB interfaceUSB 2.0 × 2, USB 3.0 × 2
Serial portRS-232 × 1, supports switching to RS-485 or RS-422
Light interfaceLight interface with 24 VDC constant voltage × 4 (Max. current 3 A for single light interface, total max. power consumption 80 W. Supports light mode switching between strobe and solid via external control)
Electrical feature
Power supply24 VDC
Power consumptionTyp. 48 W (without light source)
Mechanical
Dimension166 mm × 205.6 mm × 86 mm (6.5" × 8.1" × 3.4")
WeightApprox. 2 kg (4.4 lb.)
TemperatureWorking temperature: 0 °C to 50 °C (32 °F to 122 °F) Storage temperature: -30 °C to 70 °C (-22 °F to 158 °F)
Humidity20% to 80% RH, non-condensing
General
CertificationCCC, CE, KC
