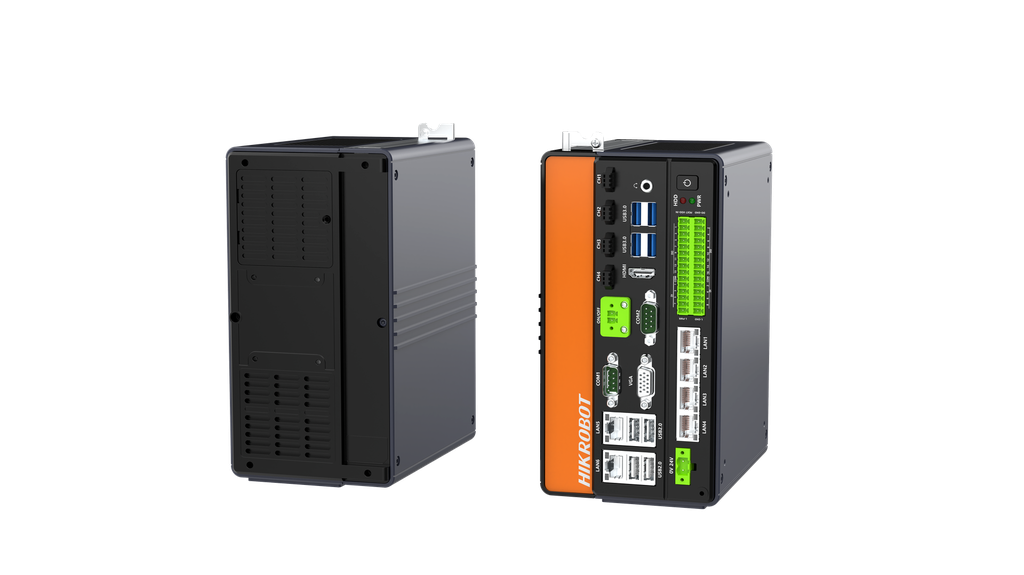

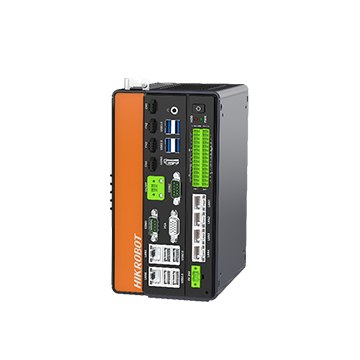

MV-VC3101H-128G60

Hikrobot MV-VC3101H-128G60 — MV-VC310*H vision controller adopts Intel® G4900 CPU, and supports 8  MV-VC3101H-128G60 GB memory. It supports 24-channel GPIO, and has multiple interfaces, (128 GB SSD) such as, GigE, USB 2.0, and USB 3.0. It is designed for mainstream vision  MV-VC3102H-128G60 applications, providing support for multi-camera locating, detection, and (128 GB SSD + 2 TB HDD) recognition. Applicable. Genuine product, supplied by ZTEC.

1,802.00 € 1,802.00 €
kr 13,471.19
(Tax excluded)
Contact Us
Documents
MV-VC3101H-128G60 - CAD (RAR).rar MV-VC3101H-128G60 - Datasheet.pdf MV-VC3101H-128G60 - User Manual.pdf
OFFICIAL HIKROBOT PARTNERCE · EU compliant

Hikrobot MV-VC3101H-128G60

VC3000 Series

Order code
MV-VC3101H-128G60
Order number
308800371
Interface
GigE interface × 6
Memory
8 GB
Storage
128 GB SSD

Hikrobot MV-VC3101H-128G60 is an industrial vision controller (IPC) — a compact industrial computer that runs machine-vision software and processes images from connected cameras directly on the production line, supplied and supported by ZTEC as your Hikrobot partner in the Nordics and Baltics.

Key features

✓Adopts 8th generation Intel® CPU to offer strong performance.
✓Provides extended slot to connect with image frame grabbers.
✓Supports 24-channel GPIO and NPN/PNP switching for output.
✓Adopts GigE interfaces for stable data transmission.
✓Supports PCIe 3.0 ×16 interface.
✓Built-in USB interface for on-site maintenance is optional.

Applications & Industries

What you can solve with this product:

Typical industries: Consumer electronicsFood & beveragePharmaceutical
Running VisionMaster / machine-vision software
Running VisionMaster / machine-vision software on the line
Central image processing
Central image processing for one or more connected cameras
Driving and synchronising lighting and I/O
Driving and synchronising lighting and I/O via built-in interfaces
Compact, fanless industrial computing
Compact, fanless industrial computing for inspection cells and machines
Edge vision computing without a separate PC cabinet
Edge vision computing without a separate PC cabinet

Specifications

Performance
CPUIntel® CeleronTM G4900
Memory8 GB
Storage128 GB SSD
GPUIntel® HD Graphics 610
Operating systemUnactivated 64-bit Windows 10
External interface
Video outputHDMI interface × 1, VGA interface × 1 Supports independent display outputs at the same time Max. resolution 1920 × 1080 @ 60 Hz
Digital I/OOpto-isolated input × 8 Opto-isolated output × 16 (supports NPN/PNP switching)
Network interfaceGigE interface × 6
USB interfaceUSB 2.0 × 4 USB 3.0 × 4 Built-in USB 2.0 × 1
Serial portRS-232 × 2, supports switching to RS-485 and RS-422
Light interface24 VDC constant voltage × 4 (Max. power consumption of single channel is 72 W, total max. power consumption 80 W.)
Extended interfacePCIe 3.0 ×16 ( × 1)
Electrical feature
Power supply24 VDC
Power consumptionTyp. 95 W
Mechanical
Dimension161.4 mm × 208.5 mm × 105.5 mm (6.4" × 8.2" × 4.2")
WeightApprox. 2.1 kg (4.6 lb.)
Temperature0 °C to 50 °C (32 °F to 122 °F)
Humidity20% to 95% RH (no condensation)
General
CertificationCE, KC
