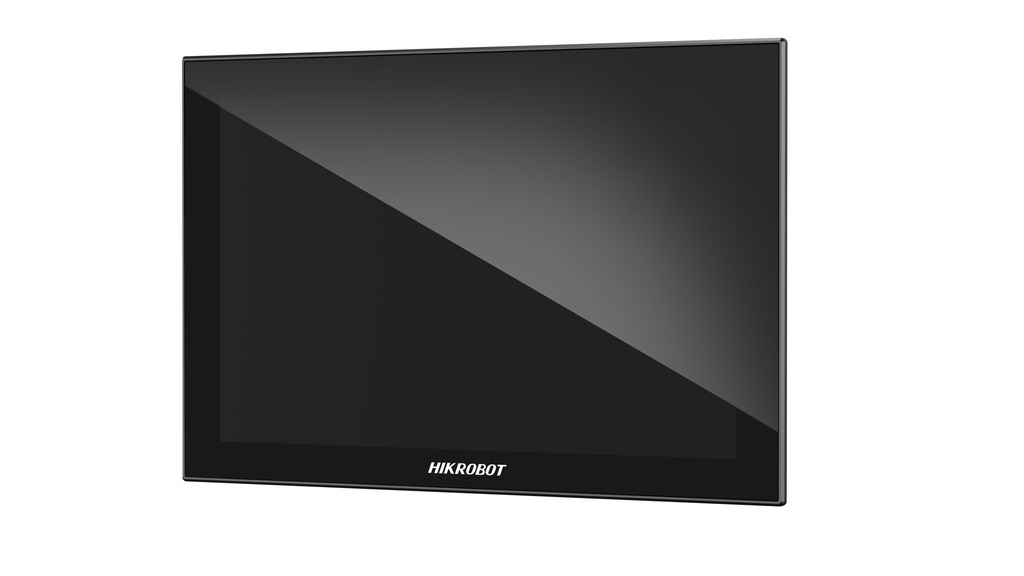

Hikrobot MV-VT2000-128G40-2T

VT2000 Series

Order code
MV-VT2000-128G40-2T
Order number
308800507
Resolution
1280 × 800
Interface
HDMI interface × 1 (1920 × 1080 @ 60 Hz)
Memory
8 GB
Storage
128 GB SSD + 2 TB HDD

Hikrobot MV-VT2000-128G40-2T is an industrial vision controller (IPC) — a compact industrial computer that runs machine-vision software and processes images from connected cameras directly on the production line, supplied and supported by ZTEC as your Hikrobot partner in the Nordics and Baltics.

Key features

✓Adopts Intel® Celeron® CPU J series to offer strong performance.
✓Supports multi-channel IO and easy to use.
✓Adopts GigE interfaces for stable data transmission.
✓Built-in USB interface for on-site maintenance is optional.
✓Full metal cover, solid and durable.
✓Supports countertop placement, embedded and wall mounting, and VESA standards.

Applications & Industries

What you can solve with this product:

Typical industries: Food & beverageNew energyPackagingMetalworking
Running VisionMaster / machine-vision software
Running VisionMaster / machine-vision software on the line
Central image processing
Central image processing for one or more connected cameras
Driving and synchronising lighting and I/O
Driving and synchronising lighting and I/O via built-in interfaces
Compact, fanless industrial computing
Compact, fanless industrial computing for inspection cells and machines
Edge vision computing without a separate PC cabinet
Edge vision computing without a separate PC cabinet

Specifications

Performance
CPUIntel® Celeron® CPU J6412
Memory8 GB
Storage128 GB SSD + 2 TB HDD
Operating systemUnactivated Windows 10 2021H2

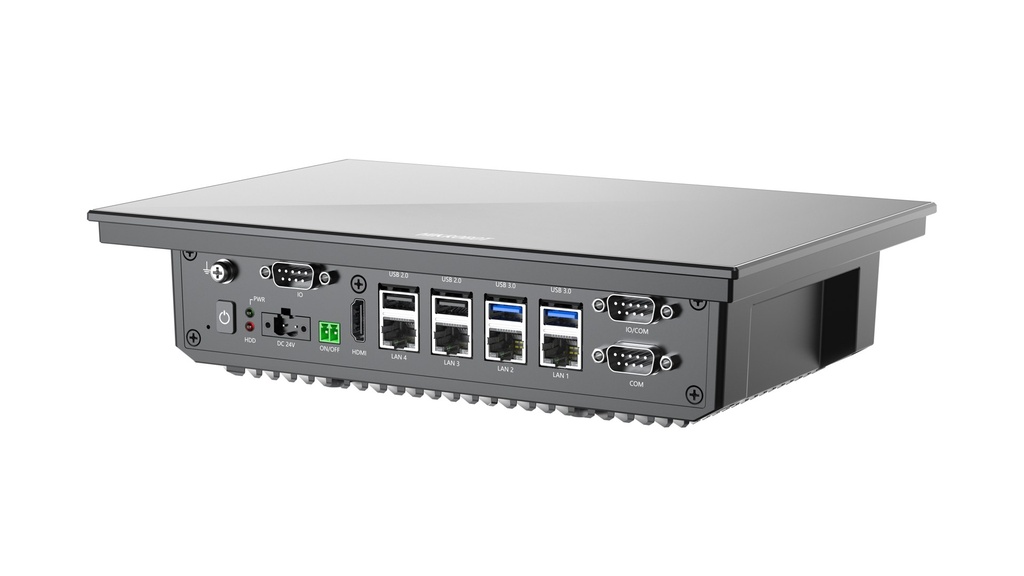

External interface
Display interfaceHDMI interface × 1 (1920 × 1080 @ 60 Hz)
Digital I/OSupports up to opto-isolated input × 7 and opto-isolated output × 7
Network interfaceGigE interface × 4
USB interfaceUSB 3.0 × 2 USB 2.0 × 2
Serial portRS-232 × 2, supports switching to RS-485 and RS-422.
Electrical feature
Power supply24 VDC
Power consumptionTyp. 30 W
Display
Screen Size10.1 inches
Resolution1280 × 800
BacklightLED
Backlight Lifetime≥ 30000 hrs
Viewing Angle85°(R)/ 85°(L)/ 85°(B)/ 85°(T)
Contrast Ratio800:1
Brightness350 cd/m2 (TYP)
Touch screen
Touch TypeMulti-point capacitive touch screen
Multi-touchTouch supports with 10 points under Windows operating system
Touch Times≥ 35 million times
Transmittance≥ 85%
Surface Hardness6 H
Mechanical
Dimension255 mm × 170 mm × 63 mm (10.0" × 6.7" × 2.5")
WeightApprox. 2 kg (10.6 lb.)
TemperatureWorking temperature: 0 °C to 50 °C (32 °F to 122 °F) (wind speed 0.7 m/s) Storage temperature: –30 °C to 70 °C (–22 °F to 158 °F)
Humidity20% RH to 80% RH (no condensation)
General
CertificationCE, KC
