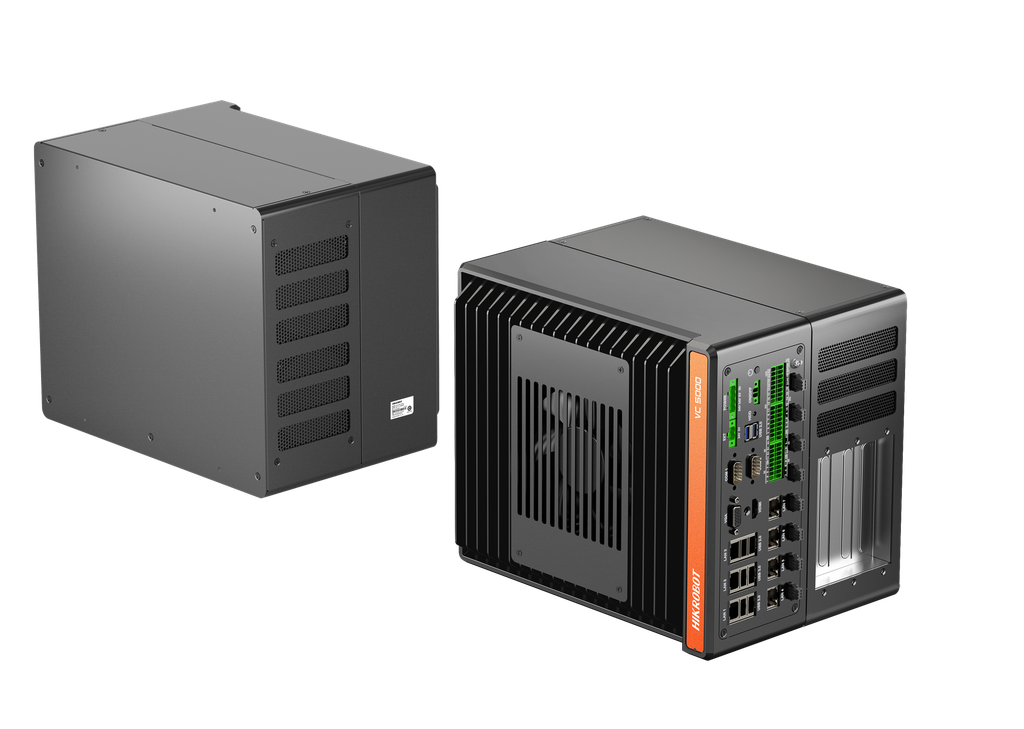

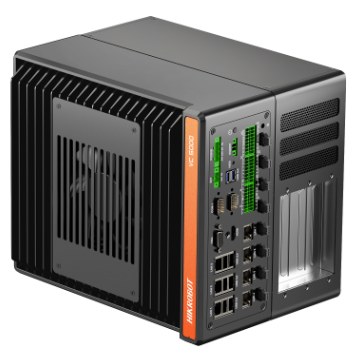

Hikrobot MV-VC5525-256G70-NN

VC5000 Series

Order code
MV-VC5525-256G70-NN
Order number
308800835
Interface
GigE interface × 7, including interface for PoE × 4
Memory
8 GB 16 GB 32 GB
Storage
256 GB SSD and 2T HDD 256 GB SSD

Hikrobot MV-VC5525-256G70-NN is an industrial vision controller (IPC) — a compact industrial computer that runs machine-vision software and processes images from connected cameras directly on the production line, supplied and supported by ZTEC as your Hikrobot partner in the Nordics and Baltics.

Key features

✓Adopts 12th generation Intel® CPU to offer strong performance.
✓Provides PCIe expansion slot to connect to image frame grabber or graphics card.
✓Supports 32-channel GPIO and some models support NPN/PNP switching for output.
✓Adopts GigE interfaces for stable data transmission.
✓Supports multiple-channel light source for synchronous control.

Applications & Industries

What you can solve with this product:

Typical industries: Consumer electronicsFood & beveragePharmaceuticalNew energy
Running VisionMaster / machine-vision software
Running VisionMaster / machine-vision software on the line
Central image processing
Central image processing for one or more connected cameras
Driving and synchronising lighting and I/O
Driving and synchronising lighting and I/O via built-in interfaces
Compact, fanless industrial computing
Compact, fanless industrial computing for inspection cells and machines
Edge vision computing without a separate PC cabinet
Edge vision computing without a separate PC cabinet

Specifications

Performance
CPUIntel® CoreTM i5-12400
Memory8 GB 16 GB 32 GB
Storage256 GB SSD and 2T HDD 256 GB SSD
GPUIntel® UHD Graphics 730
Operating systemUnactivated Windows 10
ChipQ670
Interface
Video outputHDMI interface × 1, VGA interface × 1 Supports independent display output at the same time Max. resolution 1920 × 1080 @ 60 Hz
Digital I/OOpto-isolated input × 8 Opto-isolated output × 12 ( supports NPN/PNP switching), digital-isolated low-side driver output × 8 Non-isolated bi-directional differential I/O × 4
Network interfaceGigE interface × 7, including interface for PoE × 4
USB InterfaceUSB 2.0 × 4, USB 3.0 × 4, built-in USB 2.0 × 1
Serial PortRS-232 × 2 by default, supports switching to RS-485 and RS-422
Light interface24 VDC constant voltage × 8 (Max. power consumption of single channel is 72 W, total max. power consumption 190 W)
Extended interfaceSATA 3.0 interface × 2, M.2 NVME interface × 1 PCIe × 16 extended interface × 1, PCIe × 8 extended interface × 1, PCIe × 4 extended interface × 2 (When the PCIe × 8 extended interface is used, the PCIe × 16 will only provide half of the bandwidth.)
Electrical feature
Power supply24 VDC (4-pin interface for system power supply) 24 VDC (2-pin interface for graphics card power supply)
Power consumptionTyp. 384 W (4-pin interface for system power supply) Typ. 228 W (2-pin interface for graphics card power supply)
Mechanical
Dimension302.3 mm × 248 mm × 210 mm (11.9" × 9.8" × 8.3")
WeightApprox. 7.5 kg (16.5 lb.)
Temperature0 °C to 45 °C (32 °F to 113 °F) Graphics card used: 0 °C to 45 °C (32 °F to 113 °F) Graphics card not used: 0 °C to 50 °C (32 °F to 122 °F)
Humidity20% RH to 95% RH (no condensation)
General
CertificationCE, KC
