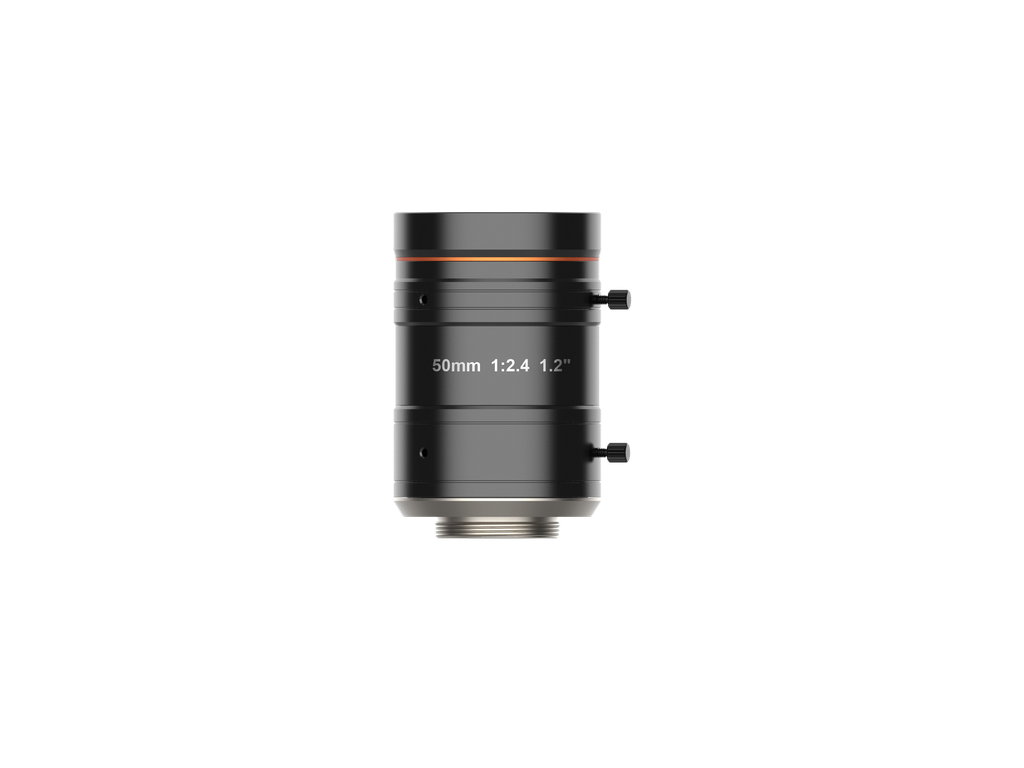

Hikrobot MVL-KF5024M-25MP

Hikrobot MVL-KF5024M-25MP

Hikrobot MVL-KF5024M-25MP — An industrial machine-vision lens — sharp, low-distortion imaging for inspection and measurement. Genuine product, supplied by ZTEC.

358.29 € 358.29 €
kr 2,678.29
(Tax excluded)
Contact Us
OFFICIAL HIKROBOT PARTNERCE · EU compliant

Hikrobot MVL-KF5024M-25MP

FA Lens

Order code
MVL-KF5024M-25MP
Order number
310100653
Field of view
D (19.30mm): 20.60° H (14.60mm): 15.66° V (12.63mm): 13.57°
Focal length
50 mm

Hikrobot MVL-KF5024M-25MP is an industrial machine-vision lens — sharp, low-distortion imaging for inspection and measurement, supplied and supported by ZTEC as your Hikrobot partner in the Nordics and Baltics.

Key features

✓Ultra high resolution and consistency of image clarity
✓1.2" image circle, bigger aperture, lower distortion, higher illumination relative
✓Achromatic optical system design, better imaging performance with color camera
✓Maintain excellent optical properties at different object distances
✓Excellent vibration resistance and stability at high and low temperature performance, optical axis shifting within pixel level
✓Multilayer and broadband coating design, compatible with visible and near infrared applications

Applications & Industries

What you can solve with this product:

Sharp, distortion-free imaging
Sharp, distortion-free imaging for inspection and gauging
Matched field of view and working distance
Matched field of view and working distance for the camera
Stable imaging
Stable imaging for measurement and positioning

Specifications

Specifications
Field of viewD (19.30mm): 20.60° H (14.60mm): 15.66° V (12.63mm): 13.57°
Additional specifications
Focal length50 mm
F-numberF2.4 to F16
Image sizeØ19.3 mm (1.2'')
Distortion0.01%
Minimum object distance0.25 m
DimensionØ42 mm × 61.2 mm (Ø1.65'' × 2.1'')
Weight177 g (0.39 lb.)
Temperature–10 °C to 50 °C (14 °F to 122 °F)
Iris controlManual
Focus controlManual
Filter threadM40.5 × 0.5
MountC-mount
Flange back length17.526 mm
CertificationRoHS 2.0
Technical support
We help with selection, integration and operation
Official Hikrobot partner
Genuine, CE-marked products with full warranty
Full range & fast quotes
We source the entire Hikrobot range, incl. special items

Need advice or a quote?

ZTEC is your Hikrobot partner — we find the right configuration for your application.
