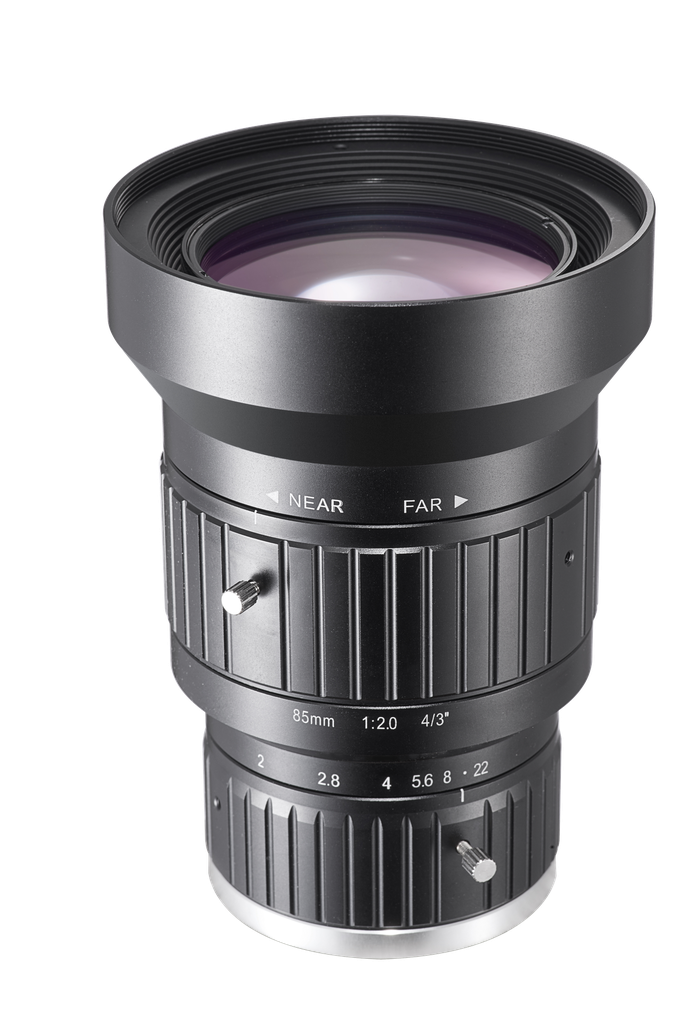

Hikrobot SA8520M-10MP

Hikrobot SA8520M-10MP

Hikrobot SA8520M-10MP — An industrial machine-vision lens — sharp, low-distortion imaging for inspection and measurement. Genuine product, supplied by ZTEC.

938.37 € 938.37 €
kr 7,014.54
(Tax excluded)
Contact Us
OFFICIAL HIKROBOT PARTNERCE · EU compliant

Hikrobot SA8520M-10MP

FA Lens

Order code
SA8520M-10MP
Order number
310100708
Field of view
D (22.6 mm): 15.4° H (18.13 mm): 12.1° V (13.6 mm): 9.3°
Focal length
85 mm

Hikrobot SA8520M-10MP is an industrial machine-vision lens — sharp, low-distortion imaging for inspection and measurement, supplied and supported by ZTEC as your Hikrobot partner in the Nordics and Baltics.

Key features

✓High resolution and excellent image uniformity
✓F2.0, Maximum image circle of 4/3''
✓Low distortion to improve measurement accuracy
✓High peripheral brightness ratio to ensure image brightness consistency

Applications & Industries

What you can solve with this product:

Sharp, distortion-free imaging
Sharp, distortion-free imaging for inspection and gauging
Matched field of view and working distance
Matched field of view and working distance for the camera
Stable imaging
Stable imaging for measurement and positioning

Specifications

Specifications
Field of ViewD (22.6 mm): 15.4° H (18.13 mm): 12.1° V (13.6 mm): 9.3°
Additional specifications
Focal length85 mm
F-numberF2.0 to F22
Image sizeØ23 mm (4/3")
Optical distortion–0.04%
Minimum object distance1.2 m
Iris controlManual
Focus controlManual
Filter threadM77 × 0.75
MountC-mount
Flange back length17.526 mm
DimensionØ80 mm × 111.7 mm (Ø3.1" × 4.4")
Weight666 g (1.5 lb.)
Temperature–10 °C to 50 °C (14 °F to 122 °F)
CertificationRoHS 2.0
