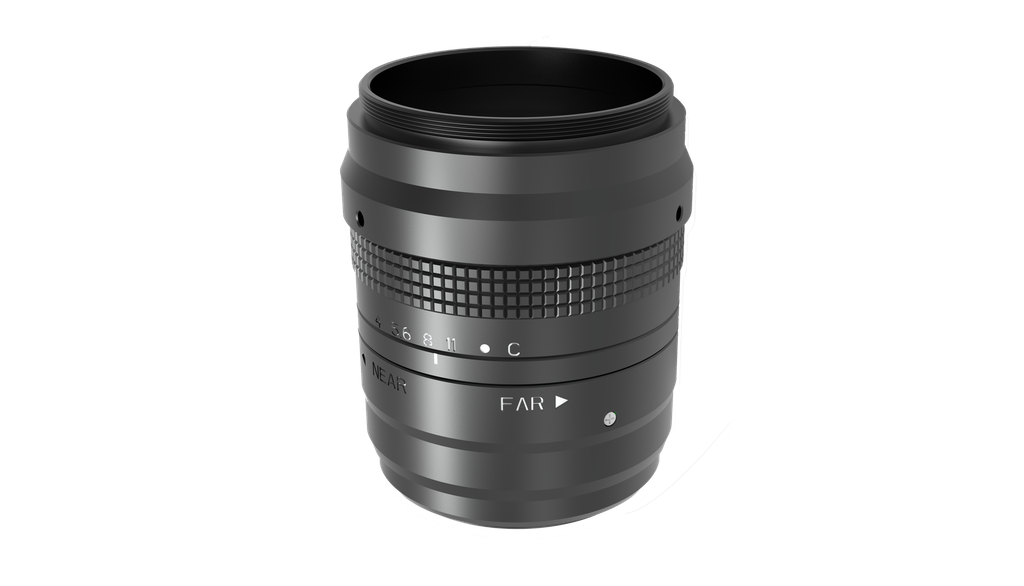

Hikrobot MVL-AF2840M-M42

Hikrobot MVL-AF2840M-M42

Hikrobot MVL-AF2840M-M42 — An industrial machine-vision lens — sharp, low-distortion imaging for inspection and measurement. Genuine product, supplied by ZTEC.

607.38 € 607.38 €
kr 4,540.32
(Tax excluded)
Contact Us
OFFICIAL HIKROBOT PARTNERCE · EU compliant

Hikrobot MVL-AF2840M-M42

FA Lens

Order code
MVL-AF2840M-M42
Order number
310100756
Working distance
103 mm to 595 mm
Focal length
28 mm

Hikrobot MVL-AF2840M-M42 is an industrial machine-vision lens — sharp, low-distortion imaging for inspection and measurement, supplied and supported by ZTEC as your Hikrobot partner in the Nordics and Baltics.

Key features

✓Provides excellent consistency of image clarity.
✓Provides low distortion.
✓Provides max. image size Ø30 mm for APS-C area scan and 4k 7 μm line scan cameras.

Applications & Industries

What you can solve with this product:

Typical industries: PackagingPrinting
Sharp, distortion-free imaging
Sharp, distortion-free imaging for inspection and gauging
Matched field of view and working distance
Matched field of view and working distance for the camera
Stable imaging
Stable imaging for measurement and positioning

Specifications

Performance
Focal length28 mm
F-numberF4.0 to F11
Image sizeØ30 mm
Optical distortion0.1%
Magnification range0.3x to 0.05x
Working distance range103 mm to 595 mm
Mechanical
Iris controlManual
Focus controlManual
Filter threadM35 × 0.5
MountM42 × P1
Flange back length12 mm
DimensionØ48.1 mm × 54.9 mm (Ø1.9" × 2.2")
Weight162 g (0.4 Ib.)
Temperature–10 °C to 50 °C (14 °F to 122 °F)
General
CertificationRoHS 2.0
Technical support
We help with selection, integration and operation
Official Hikrobot partner
Genuine, CE-marked products with full warranty
Full range & fast quotes
We source the entire Hikrobot range, incl. special items
